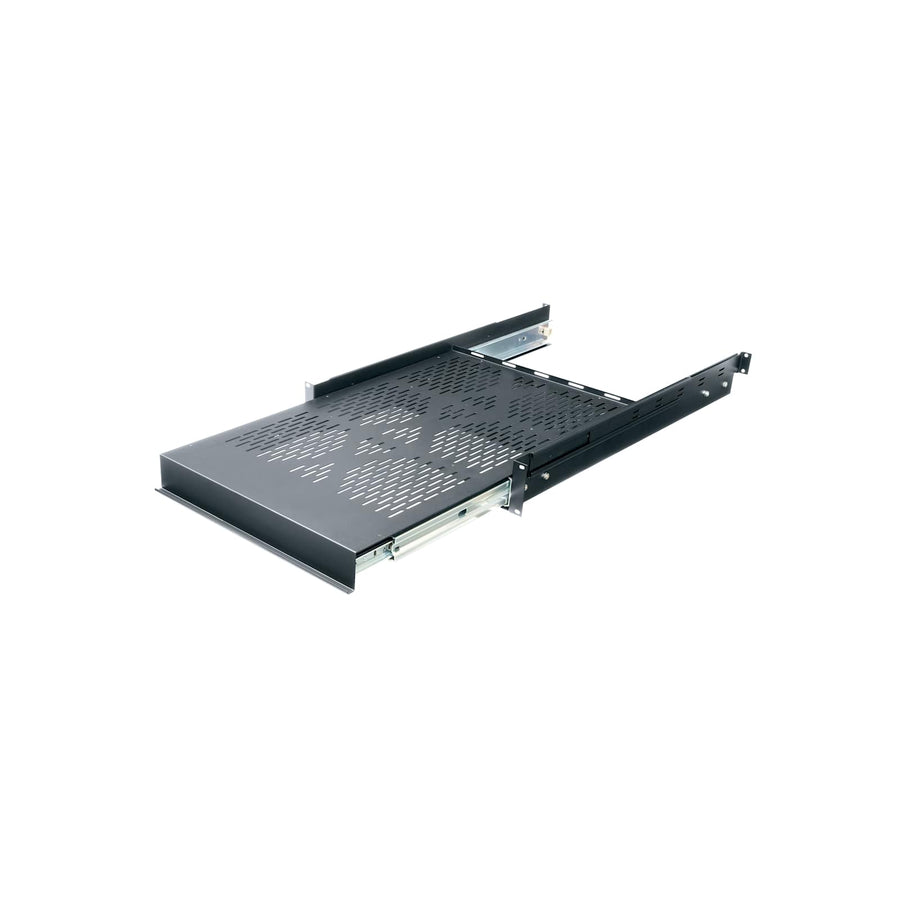

2 RU Sliding Rackshelf, 28 Inches Deep
2 RU heavy-duty sliding rackshelf with 200 lbs capacity and 28.1" usable depth
The Middle Atlantic SSHD-28 is a 2 RU heavy-duty sliding rackshelf designed to facilitate easy maintenance of rack-mounted components. Featuring full-extension slides, this steel shelf allows installers to pull equipment forward for servicing without removing it from the rack. It is constructed with a vented steel shelf and a durable black powder coat finish. This model offers a usable depth of 28.1" (71.4 cm) and is built to support a weight capacity of 200 lbs (90.7 kg). To accommodate various rack depths, the shelf includes an adjustable rear support that provides a mounting depth range of 21.14" to 35.18". This 19" wide shelf occupies two rackspaces and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 28.6 in (72.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Mounting Depth Max | 35.2 in (89.4 cm) |
| Mounting Depth Min | 21.1 in |
| Rack Units | 2 RU |
| Shipping Weight | 35.2 lbs (16 kg) |
| Usable Depth | 28.1 in (71.4 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 2 |
| UPC | 656747117602 |
Resources
Questions about this part
Will the SSHD-28 fit in my rack?
Yes, it is designed for 19" wide racks and occupies 2 RU of vertical space. The adjustable rear support allows for mounting depths ranging from 21.14" to 35.18".
How much weight can this sliding shelf hold?
The SSHD-28 has a weight capacity of 200 lbs (90.7 kg) when using the full-extension slides.
What is the usable depth for my equipment?
This shelf provides a usable depth of 28.1" (71.4 cm) and has a total depth of 28.6" (72.6 cm).
What is the difference between the SSHD-28 and the 1 RU version?
The SSHD-28 is a 2 RU model, whereas other variants in the Sliding Rackshelf series offer different rack unit heights.
Which document should I use for submittals?
You can refer to the SSHD Series Heavy Duty Sliding Shelf A&E Specification Sheet for detailed technical data.
