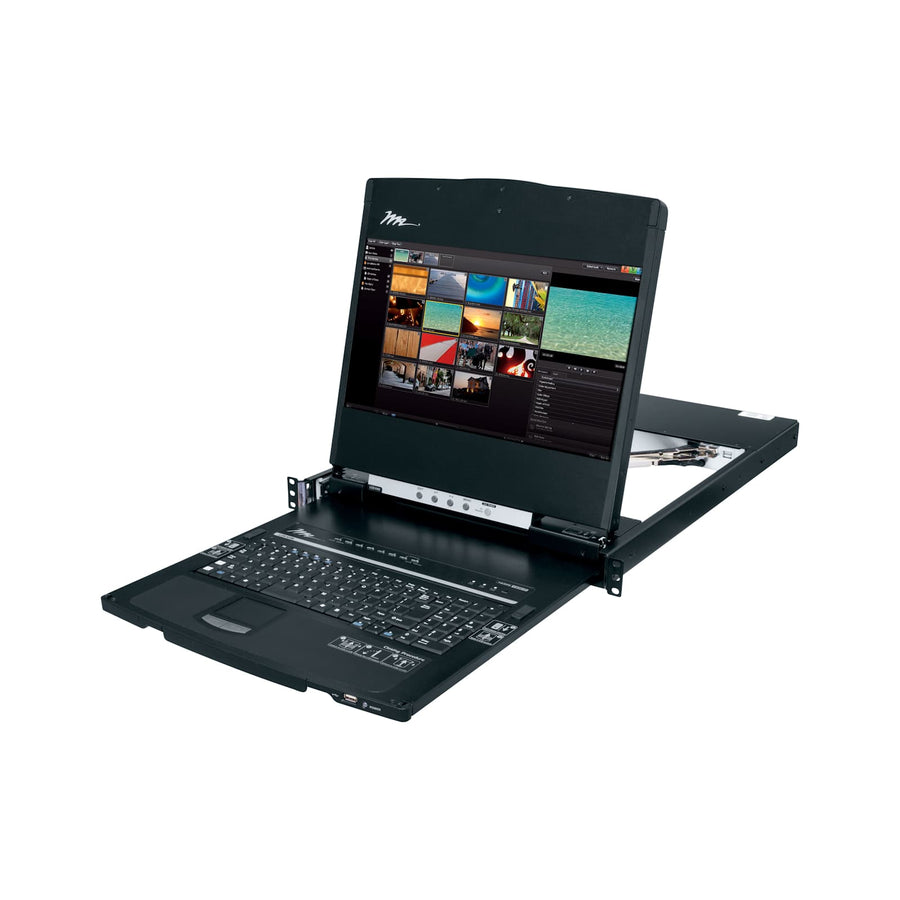

High Definition Rackmount Console
1RU rackmount console with a 17.3" (43.9 cm) 1080P widescreen display and integrated keyboard and touchpad
The RM-KB-LCD17HD is a high-definition rackmount console designed for professional AV system monitoring and control. This single console unit utilizes a 100% digital platform to maintain complete signal integrity between the source and the display. It features a 17.3" (43.9 cm) 1080P widescreen (16:9) display, including HDMI/DVI inputs and HDCP compliance. Because it uses industry-standard cabling, no specialty accessories are required for connection. The 1RU design incorporates a dual rail system that allows the monitor to remain in an open position for active system monitoring while the keyboard is recessed. This unit requires a minimum mounting depth of 21.63" and offers a usable depth of 29.23" (74.2 cm) within the rack.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25.23 in (64.1 cm) |
| Height | 1.73 in (4.4 cm) |
| Max Screen Size | 17.3 in (43.9 cm) |
| Mounting Depth Min | 21.63 in |
| Rack Units | 1 RU |
| Shipping Weight | 41.5 lbs (18.8 kg) |
| Usable Depth | 29.23 in (74.2 cm) |
| Width | 18.9 in (48 cm) |
All other specifications 6
| Material | Metal |
| Mounting Points | 4 |
| Style | Single Console |
| TAA Compliant | Yes |
| UPC | 656747241659 |
| Certifications | ETL ListedTAA |
Resources
Questions about this part
Will the RM-KB-LCD17HD work with my existing video equipment?
Yes, this console uses a 100% digital platform with HDMI/DVI inputs and HDCP compliance. It is compatible with industry standard cables and extenders without the need for specialty accessories.
What is the required mounting depth for this rackmount console?
This 1RU console requires a minimum mounting depth of 21.63" and provides a usable depth of 29.23" (74.2 cm).
Does this unit support remote management?
KVM models in this series are IP-enabled, allowing for remote monitoring and management of your systems.
How does the monitor positioning work on the RM-KB-LCD17HD?
The unit uses a dual rail design. This allows the monitor to be kept in an open position for active system monitoring while the keyboard is kept in a recessed position.
What is the difference between this and the KVM versions?
While this is a single console, Middle Atlantic also offers standard configuration models for single systems and console models with 8 Port KVM for managing multiple systems from one station.
