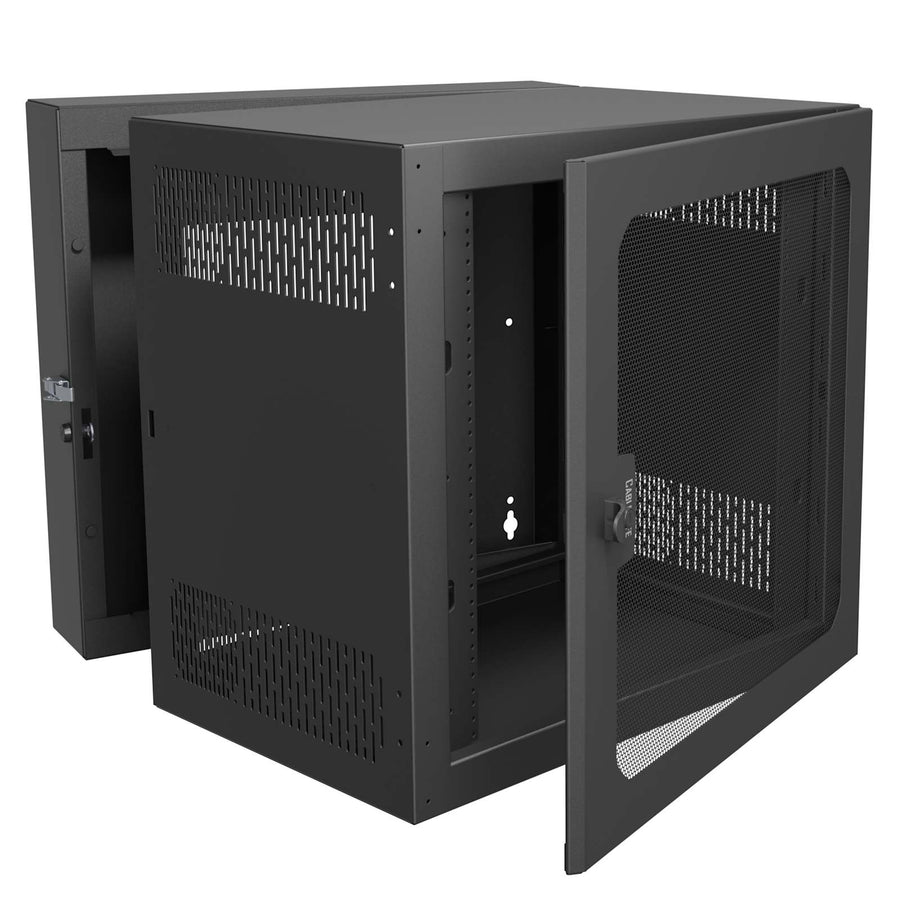

CWR Series Data Swing Wall Rack CWR-12-26VD
12 RU swing wall rack with a 26" width, vented door, and 200 lbs UL load capacity for structured cabling
The Middle Atlantic CWR-12-26VD is a 12 RU swing wall rack specifically designed for structured cabling environments where floor and wall space are at a premium. This steel construction rack is ideal for mounting multiple patch panels and voice/data equipment in tight installations. It features a 26" width, providing extra space for cable management and patching, and includes a standard wide-face 12-24 threaded rackrail that is adjustable. For ease of maintenance, the center section is designed to swing open, allowing technicians both front and rear access to equipment. Security is maintained via a vented door that features a locking/latching plexi front panel, which can be easily reversed to accommodate either left or right-hand swing requirements. This unit is engineered for passive thermal management, though an optional CWR-FKIT fan kit can be added to manage heat. The CWR-12-26VD is TAA compliant and UL listed, with a UL load capacity of 200 lbs (90.7 kg). For submittals, the CWR Series A&E Specification Sheet is available in the resources tab.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 24.88 in (63.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 82 lbs (37.2 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 112 lbs (50.8 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 24 in (61 cm) |
All other specifications 10
| Usable Height | 21 in (53.3 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Vented Door |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747112898 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
100 CFM Fan Panel, 27dB
UQFP-4$630.90
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Multi-Mount PDU, 18 Outlet, 20A & 2-Stage Surge
PD-1820R-RN$432.00
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56
12 RU Rackrail 12-24 for CWR Series
CWR-RR12$103.50
12-24 Rackscrew - 500 Piece
HP24-500$214.20
12-24 Rackscrew - 100 Piece
HP-24$46.80
2 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-2DV$74.70
1 RUs Horizontal Cable Manager with Cable Clips & D-Rings
HCM-1V$66.60
1 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-1DV$66.60
Questions about this part
How much equipment weight can this rack safely hold?
The CWR-12-26VD has a UL load capacity of 200 lbs (90.7 kg).
Can I access the back of my equipment without unmounting it?
Yes, the rack features a locking swing-open center section that provides both front and rear access for easier servicing.
What is required for active cooling in this rack?
While designed for passive thermal management, you can add a CWR-FKIT fan kit for enhanced airflow.
Can the front door be installed for a specific swing direction?
Yes, the locking plexi front door can be easily reversed for either left or right-hand swing.
What other accessories are compatible with the CWR-12-26VD?
Compatible accessories include the VSA-1626 adjustable rackshelf, the PD-915R-PL power strip, and various cable managers like the HCM-1DV.
