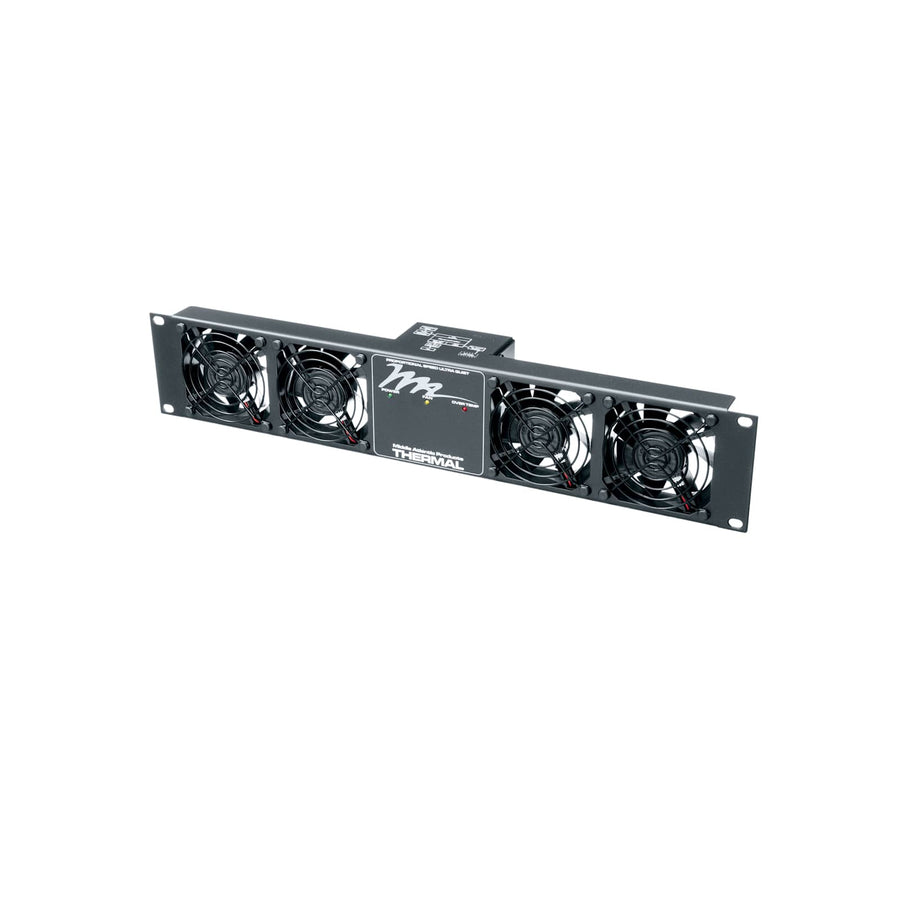

100 CFM Fan Panel, 27dB
2RU active fan panel providing 100 CFM of cooling at 27dB for silent thermal management in noise-sensitive environments
The Middle Atlantic UQFP-4 is a 2RU active fan panel designed for thermal management in environments where noise must be minimized, such as boardrooms, offices, classrooms, and houses of worship. This component type provides 100 CFM of cooling capacity with a rated noise level of 27dB. To ensure quiet operation, an on-board digital processor uses intelligent thermostatic proportional control to vary the fan speed based on temperature readings from an external sensor. This system provides critical monitoring through both local and remote notifications for over-temperature events and fan faults. In the event of a fan failure, the system can signal a local display or send a remote signal to an external alarm device to alert technicians. This Brushed and Anodized 19 in (48.3 cm) wide panel operates on 120V AC input and uses 5 VDC for its internal DC power requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 100 |
| Depth | 3.4 in (8.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Available Internationally | No |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| TAA Compliant | No |
| Thermistor | No |
| UPC | 656747070471 |
Resources
Questions about this part
How does the UQFP-4 maintain quiet operation?
The UQFP-4 uses a digital processor and intelligent thermostatic proportional control to adjust fan speed based on temperature, maintaining a noise level of 27dB at 100 CFM.
Can the UQFP-4 alert me if a fan fails?
Yes, the system provides notification of a fan fault via a local display or a remote signal sent to an external alarm device.
What is the power requirement for this fan panel?
This panel requires 120V AC input voltage and utilizes 5 VDC for its internal power.
How do I receive over-temperature notifications?
The UQFP-4 provides both local and remote over-temperature notifications that can be sent directly to a control system.
Does this panel include a temperature sensor?
The on-board digital processor monitors rack temperature specifically via an external sensor.
