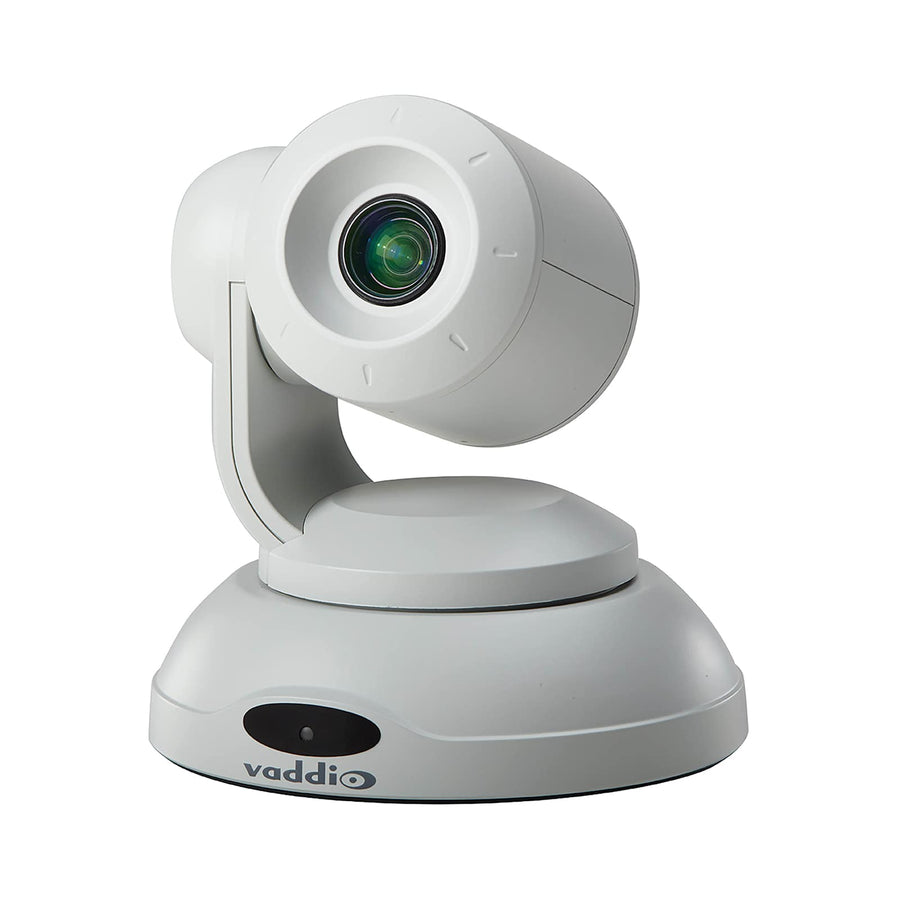

ConferenceSHOT 10 Camera
HD PTZ conferencing camera for small to medium rooms, featuring 10x optical zoom and simultaneous USB 3.0 and H.264 IP streaming
The Vaddio ConferenceSHOT 10 Camera is an enterprise-class PTZ conferencing solution designed for high-quality imaging in small to medium-sized meeting spaces. It utilizes a 1-2_8 Exmor CMOS image sensor (2.14 Megapixel) to provide native 1080p/60 resolution, delivering vivid color and sharp detail. This white-finish camera offers significant flexibility through its dual output capabilities: it supports simultaneous, uncompressed USB 3.0 via Type B and IP (H.264) streaming. This allows for high-performance local connectivity alongside remote network distribution. Integrated PTZ stepper motors provide smooth movement, with a pan range of ±165° and a tilt range of +90° to -30° at speeds up to 90°/sec. Users can manage the device via a built-in browser-based web interface for remote control over an IP network, or via RS232 and Telnet. The camera also supports RTMP streaming for direct broadcast to platforms like YouTube or Facebook. For installation, the unit requires a 12VDC, 3.0A local power supply. The ConferenceSHOT 10 is TAA compliant and carries UL, FCC, and CE certifications. It is also certified for use with Barco ClickShare, Mersive Solstice Pod, and Zoom.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
All other specifications 33
| Camera Type | PTZ |
| Color | White |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| OneLINK Compatibility | No |
| Output Ports | USB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Pan and Tilt Speed | +90° -30°, up to 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | IP StreamingUSB 3.0 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077504809 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCMersive Solstice Pod Certified Partner DeviceTAAUL ListedZoom Certified |
| Warranty | 3 years |
Resources
You'll need these with it
EasyUSB MicPOD I/O with Two CeilingMICs
999-88000-000$2,070.90
OneLINK HDMI Extension for Vaddio HDBaseT Cameras
999-1105-043$1,579.50
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-030$856.80
Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54267$681.99
Superbooster® 1-Port USB over Cat6a Box to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54266$681.99
Thin Profile Wall Mount for Vaddio ConferenceSHOT 10, ConferenceSHOT FX, and EasyIP 10 cameras
535-2000-244$101.70
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54268$681.99
Video Conferencing Camera Shelf - 9 Inch - PAC715
PAC715$153.60
Thinstall™ Video Conferencing Camera Shelf - 12 Inch
TA250$125.60
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Questions about this part
Will the Vaddio ConferenceSHOT 10 work with my existing meeting room setup?
Yes, it is highly compatible with professional systems, including being a certified partner for Barco ClickShare, Mersive Solstice Pod, and Zoom. It also supports RTMP streaming to platforms like YouTube and Facebook.
What are the control and connectivity options for the ConferenceSHOT 10?
This camera supports multiple control methods including RS232, Telnet, IR Remote, and a built-in browser-based Web UI. For video, it features USB 3.0 Type B and IP (H.264) streaming.
How much zoom and movement does this camera offer?
The unit features a 10x optical zoom with a wide field of view of 74° and a tele field of view of 7.6°. The stepper motors provide a ±165° pan and a +90° to -30° tilt.
What mounting and enclosure options are available for this model?
You can use the 535-2000-244 Thin Profile Wall Mount or the 999-2225-022 In-Wall Enclosure. Other compatible accessories include the PAC715 or TA200 camera shelves.
What is the field of view for the ConferenceSHOT 10?
The camera provides a 74° wide-end field of view and a 7.6° tele-end field of view, making it suitable for small to medium rooms.
