EasyUSB MicPOD I/O with Two CeilingMICs
Audio conferencing solution for medium rooms, including an EasyUSB MicPOD I/O and two white CeilingMIC microphones
The Vaddio 999-88000-000 is a professional audio conferencing solution designed for medium-sized rooms. This system utilizes EasyUSB MicPOD I/O interface and two white CeilingMIC microphones to provide high-quality live audio. Each CeilingMIC employs an array of three electric condenser microphones configured to create a 360-degree pickup pattern. These microphones use integrated intelligence to actively manage room audio via gain, gating, and echo cancellation, mixing down to a single output. The EasyUSB MicPOD I/O interface converts this EasyMIC technology into a balanced line out, allowing seamless integration with any manufacturer’s professional audio mixer or internal DSP. This setup simplifies the addition of live conferencing audio to room designs while ensuring outstanding results through local 12VDC, 3.0A power. This TAA compliant package includes the EasyUSB MicPOD I/O, an 18V power supply with an AC cord set, two white CeilingMIC microphones, two white silicone split strain relief boots, two 3' (0.9m) white cat-5 cables, two CeilingMIC interface boxes, and two cable clamp grommets.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 26" x 15" x 15" (660.4 x 381 x 381 mm) |
| Shipping Weight | 19 lbs (8.6 kg) |
| Audio Type | MicrophoneMixers and IO Devices |
| Color | White |
| Manufacturer | Vaddio |
| OneLINK Compatibility | No |
| Power Cord | US Cord |
All other specifications 7
| Power Supply | 12VDC3.0A |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077501983 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it

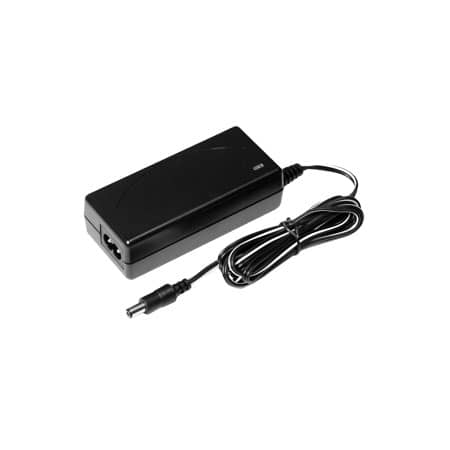

18 Volt Power Supply (2.75 Amp)
451-2750-018$78.30
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10

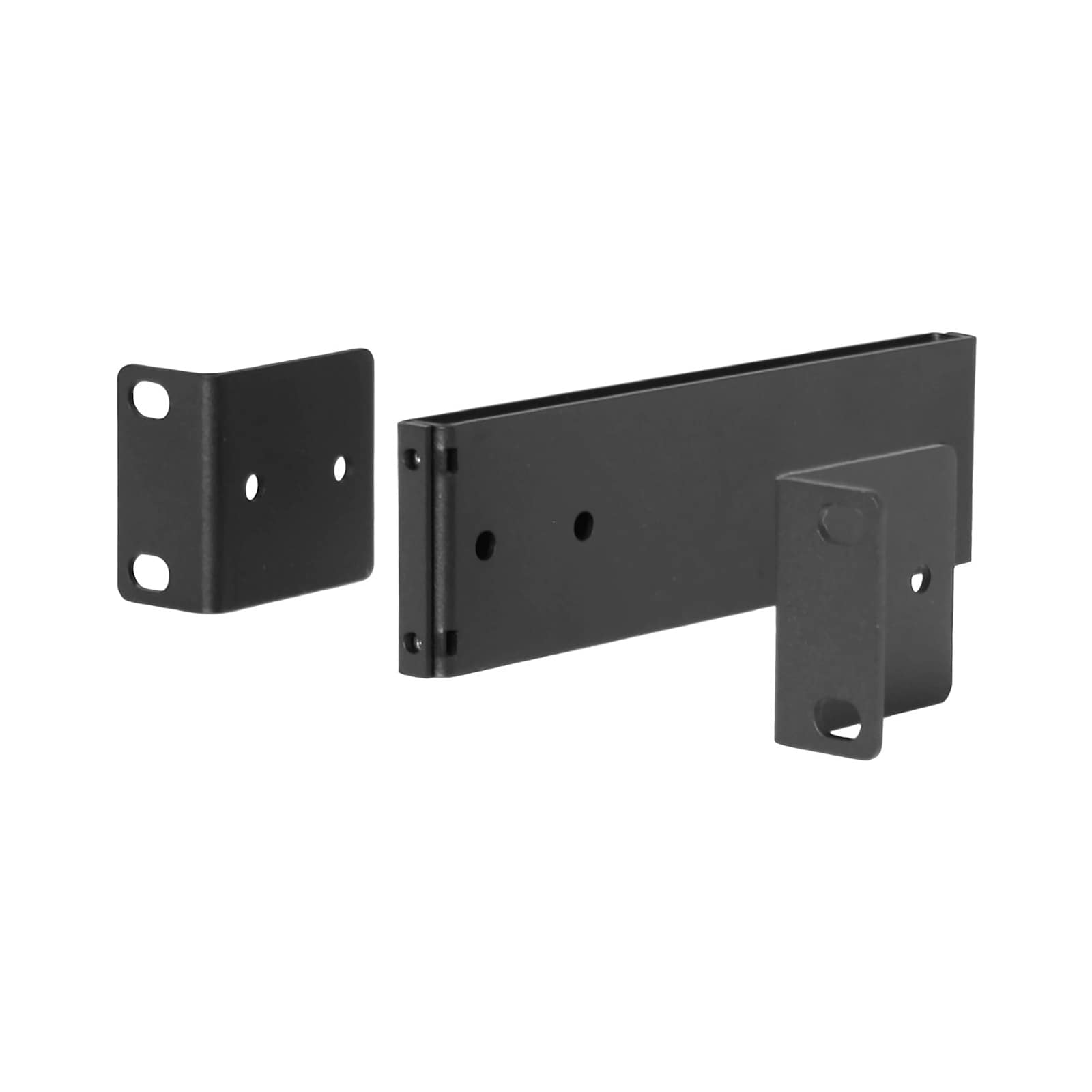

Dual 1/2 Rack Mounting Kit
998-6000-006$114.30

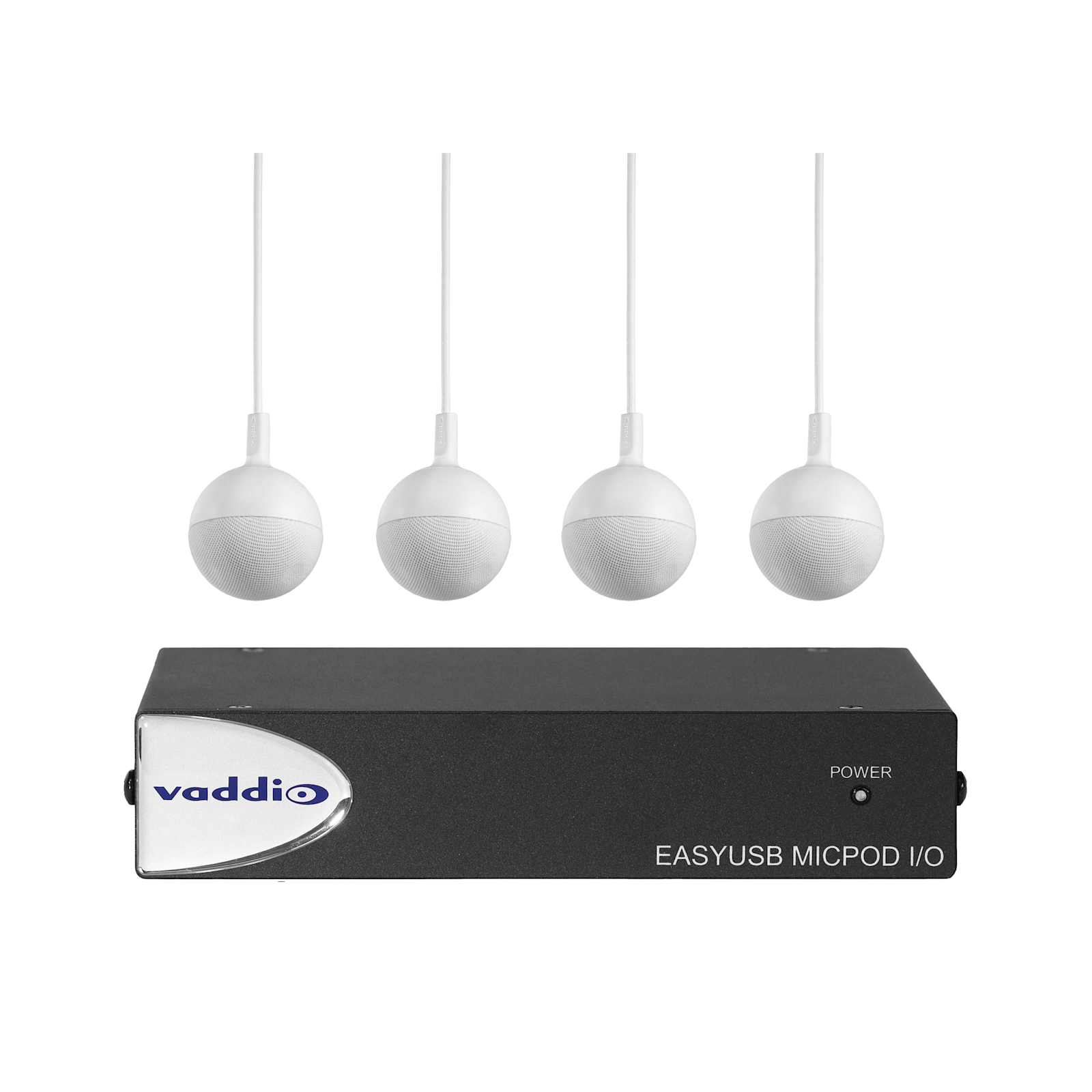

EasyUSB MicPOD I/O with Four CeilingMICs
999-88100-000$3,377.70

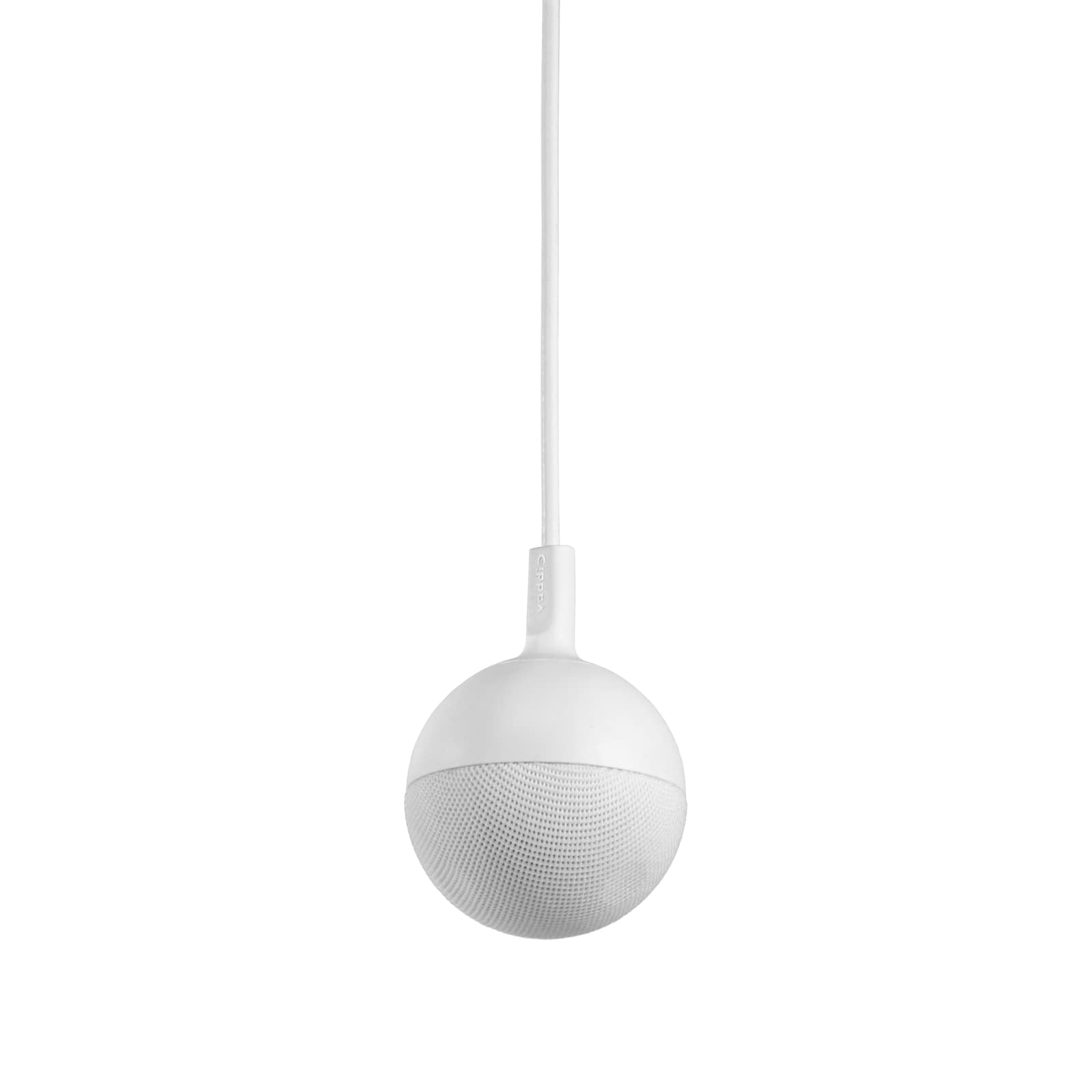

CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60

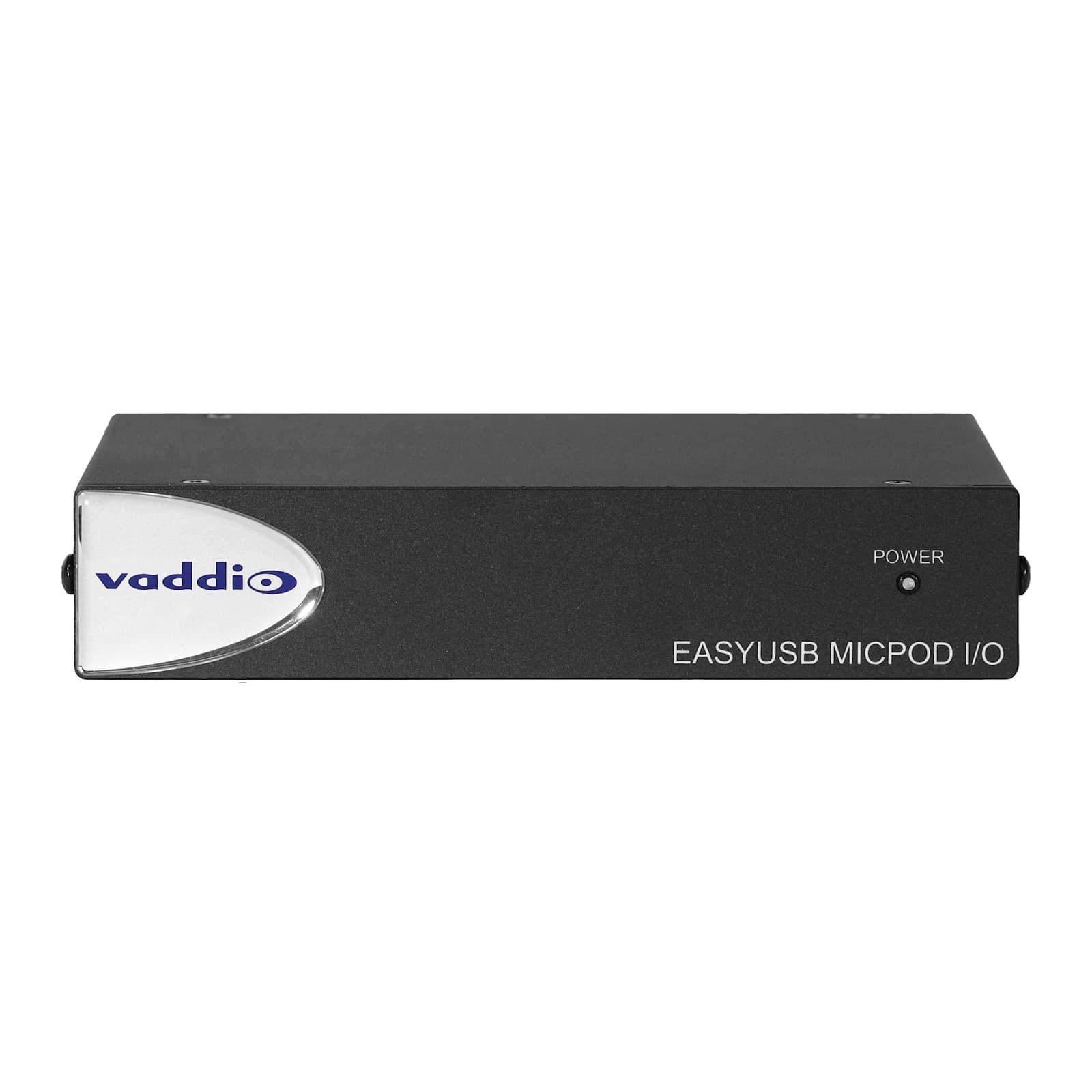

EasyUSB MicPOD I/O
999-8535-000$801.90
Questions about this part
Will this MicPOD I/O work with my existing audio mixer?
Yes, the 999-88000-000 converts EasyMIC technology to a balanced line out, allowing it to integrate with any professional audio mixer or internal DSP.
What is the difference between the 999-88000-000 and the 999-88100-000?
The 999-88100-000 is the version of this system that includes four CeilingMIC microphones instead of two.
Does this system require a specific power source?
The system uses local power via a 12VDC, 3.0A supply, and the package includes an 18V power supply with an AC cord set.
How do the CeilingMICs handle echo cancellation?
Each CeilingMIC features three electric condenser microphones that manage gain, gating, and echo cancellation internally to provide a single output.
Which documents are available for installation and submittals?
You can access the CeilingMIC and EasyIP CeilingMIC D Installation Guide, the EasyUSB MicPOD I/O Installation Guide, or the complete CeilingMIC Manual for detailed technical information.
