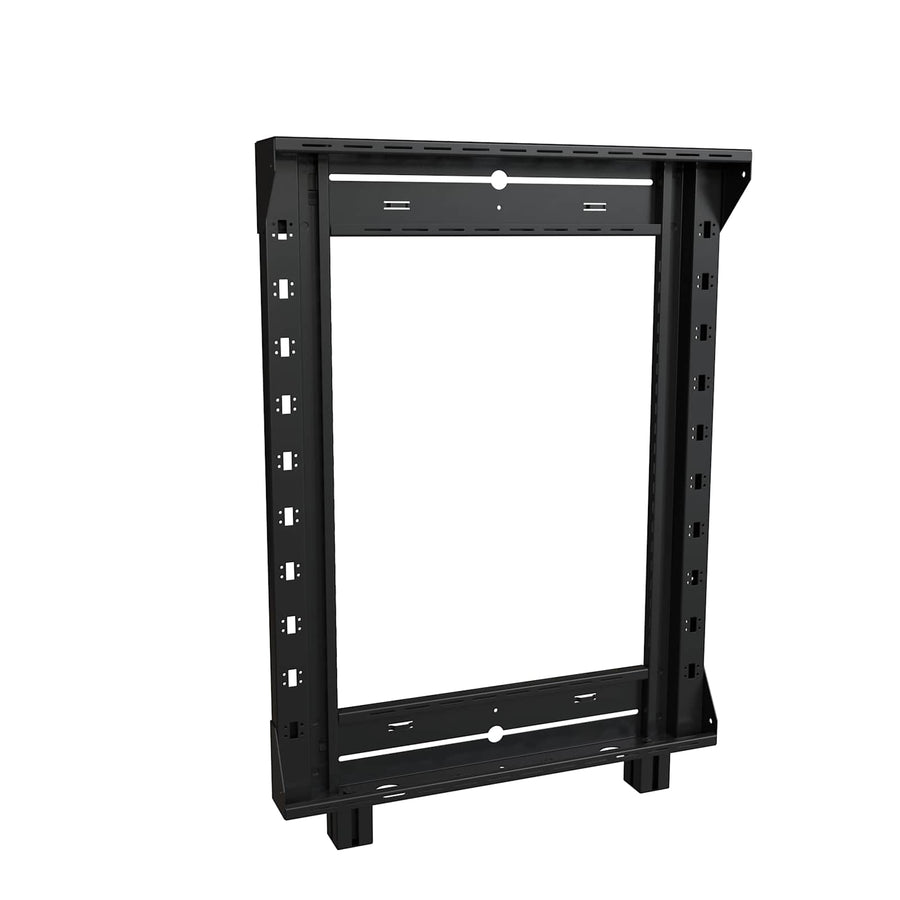

C3 Series Credenza Frame, 1 Bay, 32 Inches High
Steel 1-bay credenza frame for C3 Series woodkits, 32 in (81.3 cm) high, TAA compliant
The C3-FF32-1 is a professional 1-bay steel frame designed to serve as the foundation for Middle Atlantic C3 Series Credenza furniture. This 32 in (81.3 cm) high frame allows installers to mount AV equipment without the immediate obstruction of a woodkit, facilitating a smoother integration process. Once the internal equipment is secured, a C3 woodkit is installed over the steel structure to conceal the system in a finished aesthetic. This specific SKU is 32 in (81.3 cm) high and includes feet to ensure stability and proper airflow when used with optional display mounts. The frame is TAA compliant and comes with mounting hardware included. To achieve a complete furniture solution, this frame accepts the C3 Shelf Kit, C3 Slide-Out Tech Kit, C3 Stationary Tech Kit, or the C3 Single Display Mount option. It also includes an LL-VP2110 for mounting small devices.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.5 in (8.9 cm) |
| Height | 32 in (81.3 cm) |
| Product Weight | 12.9 lbs (5.9 kg) |
| Shipping Weight | 22 lbs (10 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 22.8 in (57.9 cm) |
| Available Internationally | Yes |
| Color | Black |
All other specifications 8
| Federal Ops Country of Origin | USA |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Number of Bays | 1 |
| TAA Compliant | Yes |
| UPC | 656747390029 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Premium Series UPS Replacement Battery Pack
UPS-RBP$936.00
Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00
Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00
Multi-Mount Rackmount Power, 6 Outlet, 20A & 6-Step Sequencing
PDS-620R$1,000.80
Multi-Mount Rackmount Power, 6 Outlet, 15A & 6-Step Sequencing
PDS-615R$869.40
Questions about this part
What equipment can I install in the C3-FF32-1?
This 1-bay frame accepts C3 Shelf Kits, C3 Slide-Out Tech Kits, and C3 Stationary Tech Kits. It also supports the C3 Single Display Mount option.
What do I need to buy to complete the furniture look?
The C3-FF32-1 is just the internal frame. To create a finished piece of furniture, you must purchase a C3 Series woodkit to install over the steel frame.
What is the weight capacity for this credenza frame?
The C3-FF32-1 has a weight capacity of 100 lbs (45.4 kg).
What mounting hardware is included for wall installation?
The frame includes SNAPTOGGLE Anchors specifically designed for mounting into cinderblock or steel-studded walls.
Which documents should I use for submittals or installation?
For installation, refer to the C3 Series Credenza Frame Instruction Sheet. Technical drawings and Revit models are also available in the Resources tab.
