Multi-Mount Rackmount Power, 6 Outlet, 15A & 6-Step Sequencing
1U rackmount power sequencer with 7 outlets, 15A capacity, and 6-step sequencing for controlled equipment startup

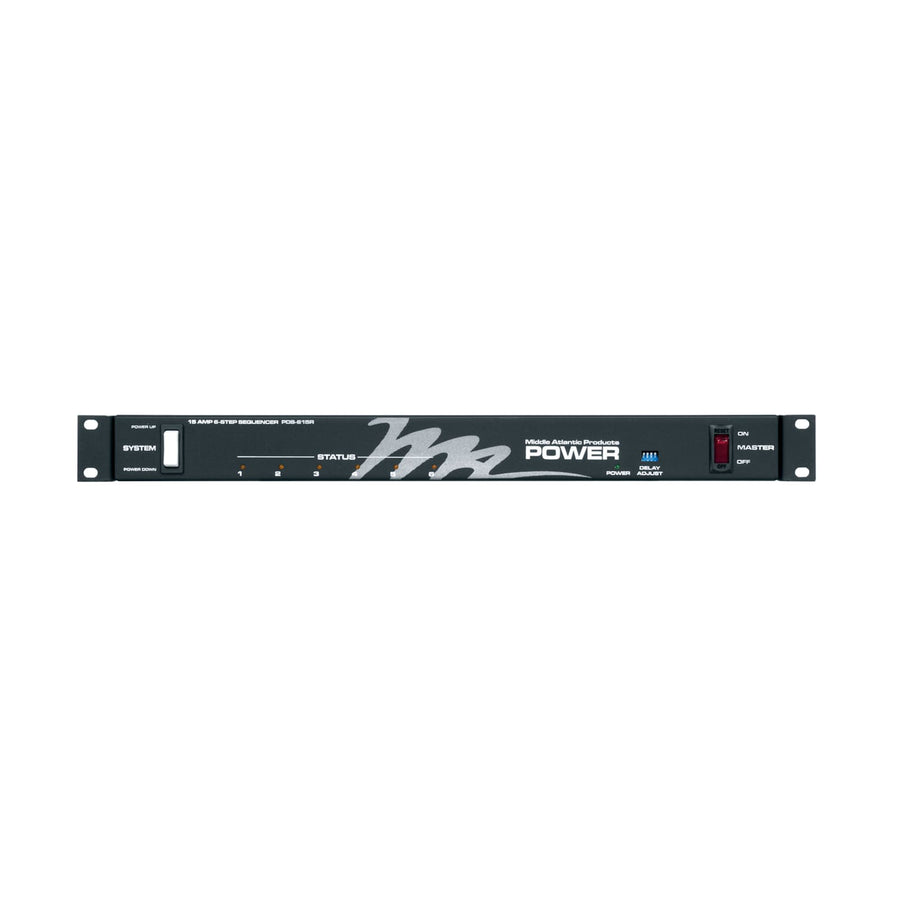

The Middle Atlantic PDS-615R is a 1RU rackmount power sequencer designed to provide controlled, 6-step power sequencing to 6 rear outlets. This intelligent power distribution unit operates on 115 VAC with a 15 Amp capacity and utilizes a 9 ft (2.7 m) SignalSAFE™ cord. The device features a 5-15P plug type and is built for professional rack environments where equipment startup order is critical to system stability. Installers can utilize adjustable intervals between power-up stages and manage the system via remote triggering and notifications. For larger deployments, this unit allows for daisy-chaining up to 3 sequencers together to work as a single coordinated system. The chassis is 1.75 in (4.4 cm) high, 19 in (48.3 cm) wide, and 9.84 in (25 cm) deep, featuring 2 mounting points for standard rack installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.84 in (25 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Volts AC | 115 VAC |
| Width | 19 in (48.3 cm) |
| Cable Type | Corded |
All other specifications 9
| Mounting Points | 2 |
| Multi-Mount | No |
| Number of Circuits | 1 |
| Outlet Count | 7 |
| Plug Type | 5-15P |
| Sequencing | Yes |
| TAA Compliant | No |
| UPC | 656747012679 |
| Certifications | ETL Listed |
Resources
Questions about this part
How many outlets are on the PDS-615R and which ones sequence?
This unit has 7 total outlets, providing 6-step sequencing specifically to the 6 rear outlets.
Can I use multiple PDS-615R units together in a single rack?
Yes, you can daisy-chain up to 3 sequencers together so they act as a single coordinated unit.
What kind of power cord is provided with this unit?
The PDS-615R includes a 9 ft (2.7 m) SignalSAFE™ power cord with a 5-15P plug.
Is this power sequencer ETL listed?
Yes, this product is ETL Listed for safe operation in professional environments.
What is the difference between this and other PDS models?
The PDS-615R is a 1RU variant within the PDS series, specifically configured with 7 total outlets.
