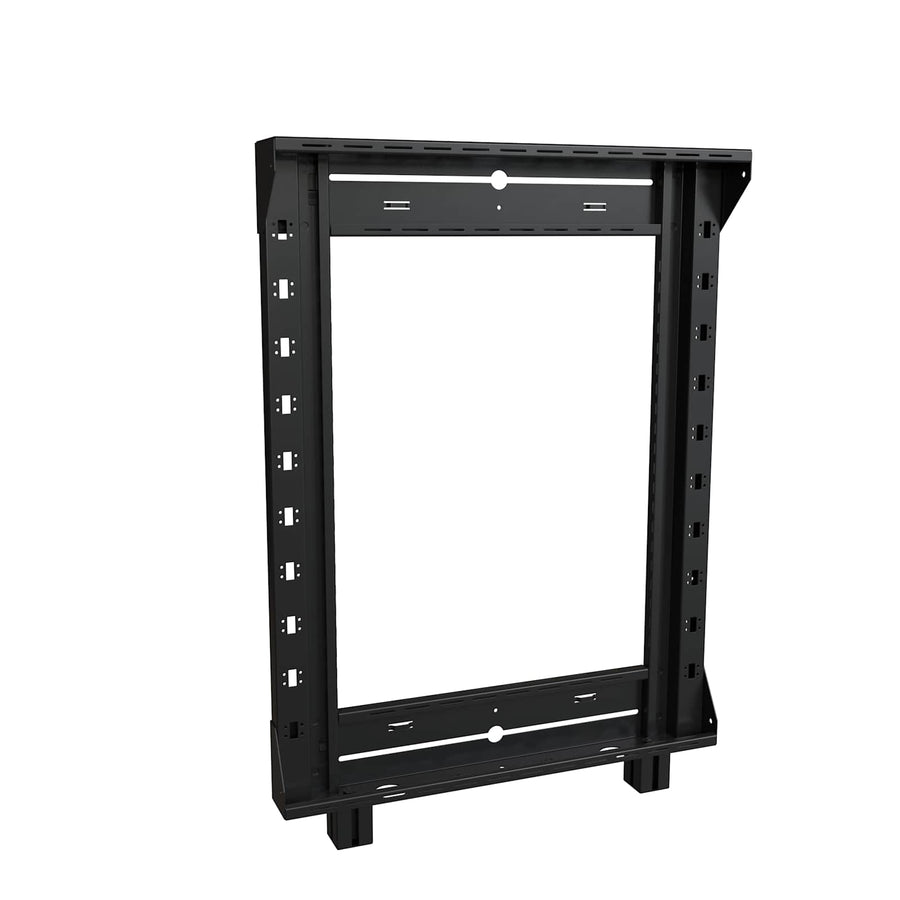

C3 Series Credenza Frame, 1 Bay, 24 Inches High
Steel 1-bay credenza frame, 24 inches high, designed for C3 Series woodkit integration
The Middle Atlantic C3-FF24-1 is the foundational component for a professional C3 Series Credenza assembly. This 1-bay steel frame allows installers to mount AV equipment directly to the wall, facilitating seamless integration without the obstructions typically caused by traditional wood cabinetry. Once the internal AV hardware is secured, a C3 woodkit is installed over the frame to conceal the system within a polished furniture finish. This 24-inch high frame is built for versatility, accepting a C3 Shelf Kit, C3 Slide-Out Tech Kit, or C3 Stationary Tech Kit. It is also compatible with the C3 Single Display Mount option. For stability and airflow, this unit includes integrated feet and comes equipped with one LL-VP2110 for mounting small devices. It is designed for varied installation environments, including cinderblock or steel-studded walls, as it includes SNAPTOGGLE® Anchors for secure mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.5 in (8.9 cm) |
| Height | 24 in (61 cm) |
| Product Weight | 11.3 lbs (5.1 kg) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 22.8 in (57.9 cm) |
| Available Internationally | Yes |
| Color | Black |
All other specifications 8
| Federal Ops Country of Origin | USA |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Number of Bays | 1 |
| TAA Compliant | Yes |
| UPC | 656747390050 |
| Certifications | TAA |
| Patents | www.legrandav.com/patents |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
ConferenceSHOT ePTZ Camera
999-21050-000$1,018.80
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Premium Series UPS Replacement Battery Pack
UPS-RBP$936.00

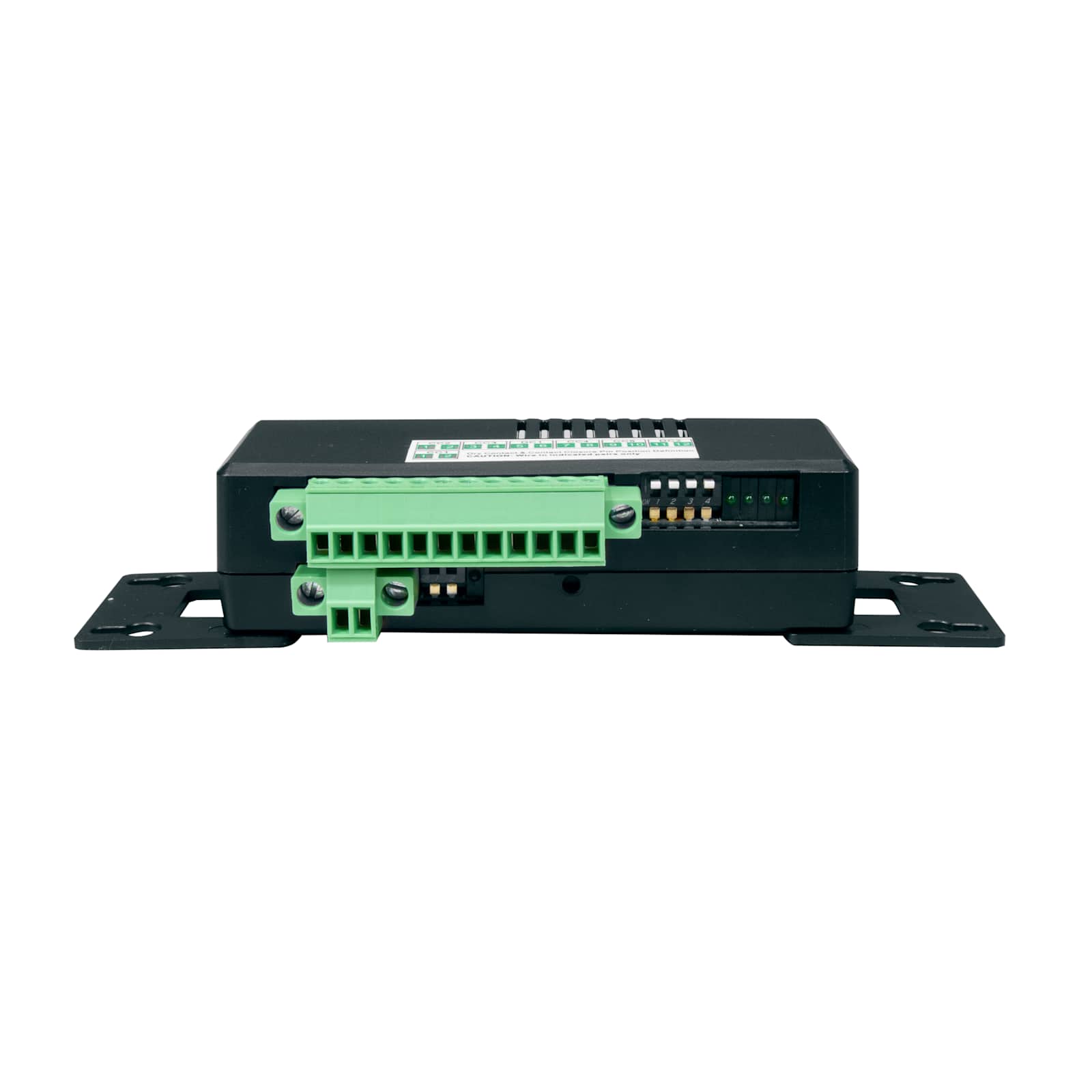

Dry Contact Sensor Rlnk-Cont For Use With Premium+ PDU With RackLink™
RLNK-CONT$216.00

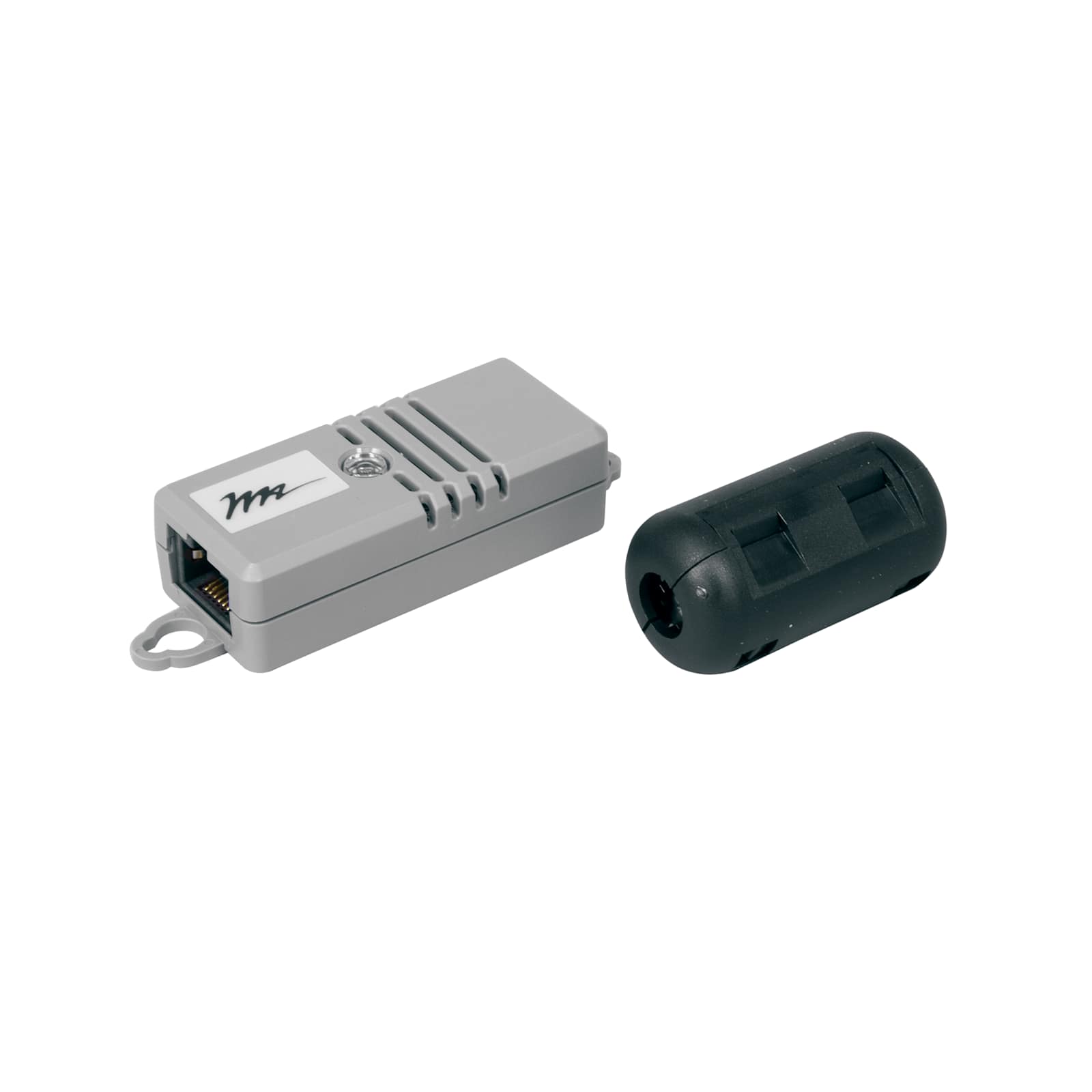

Premium+ PDU With RackLink™ Temperature And Humidity Sensor
RLNK-TEMP$126.00

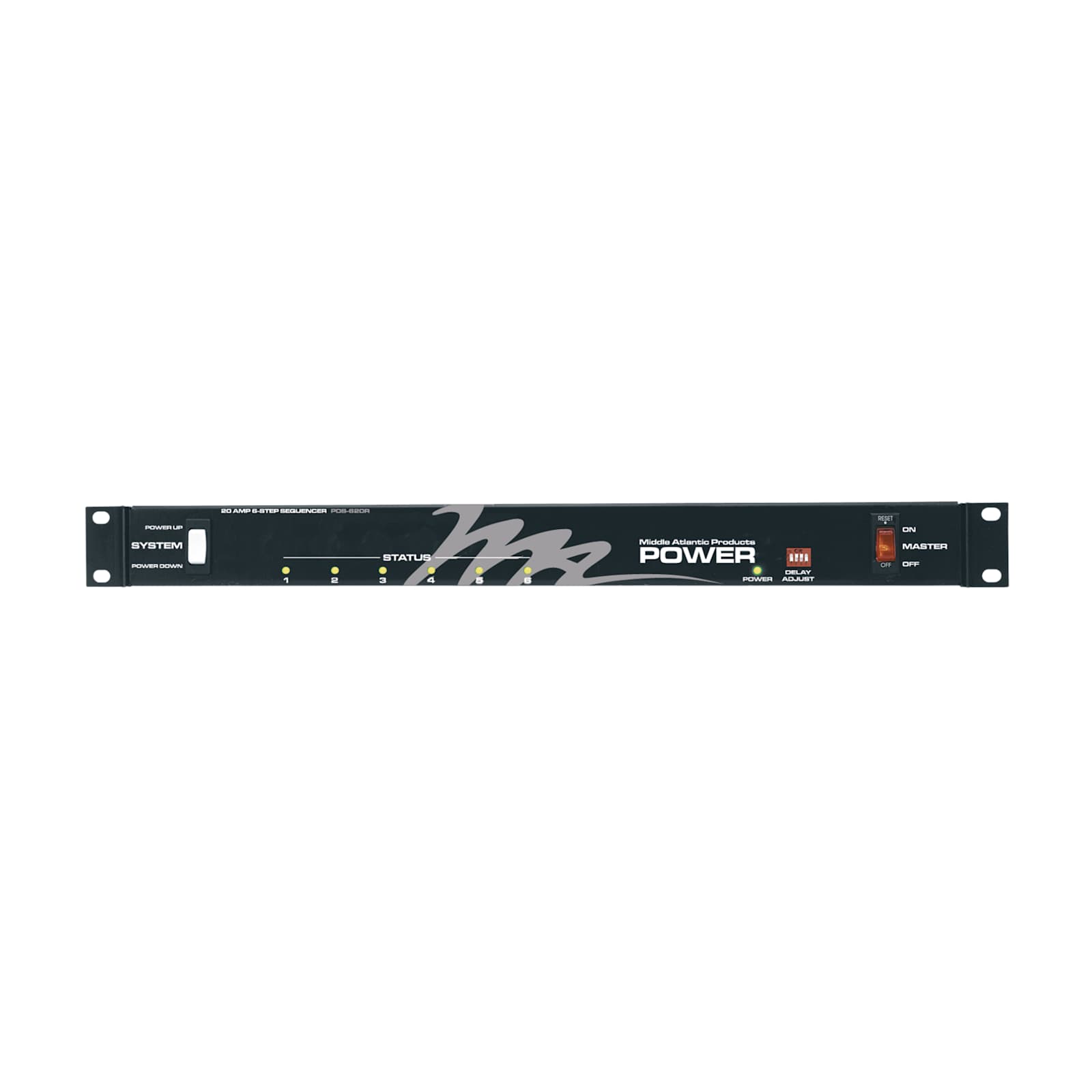

Multi-Mount Rackmount Power, 6 Outlet, 20A & 6-Step Sequencing
PDS-620R$1,000.80

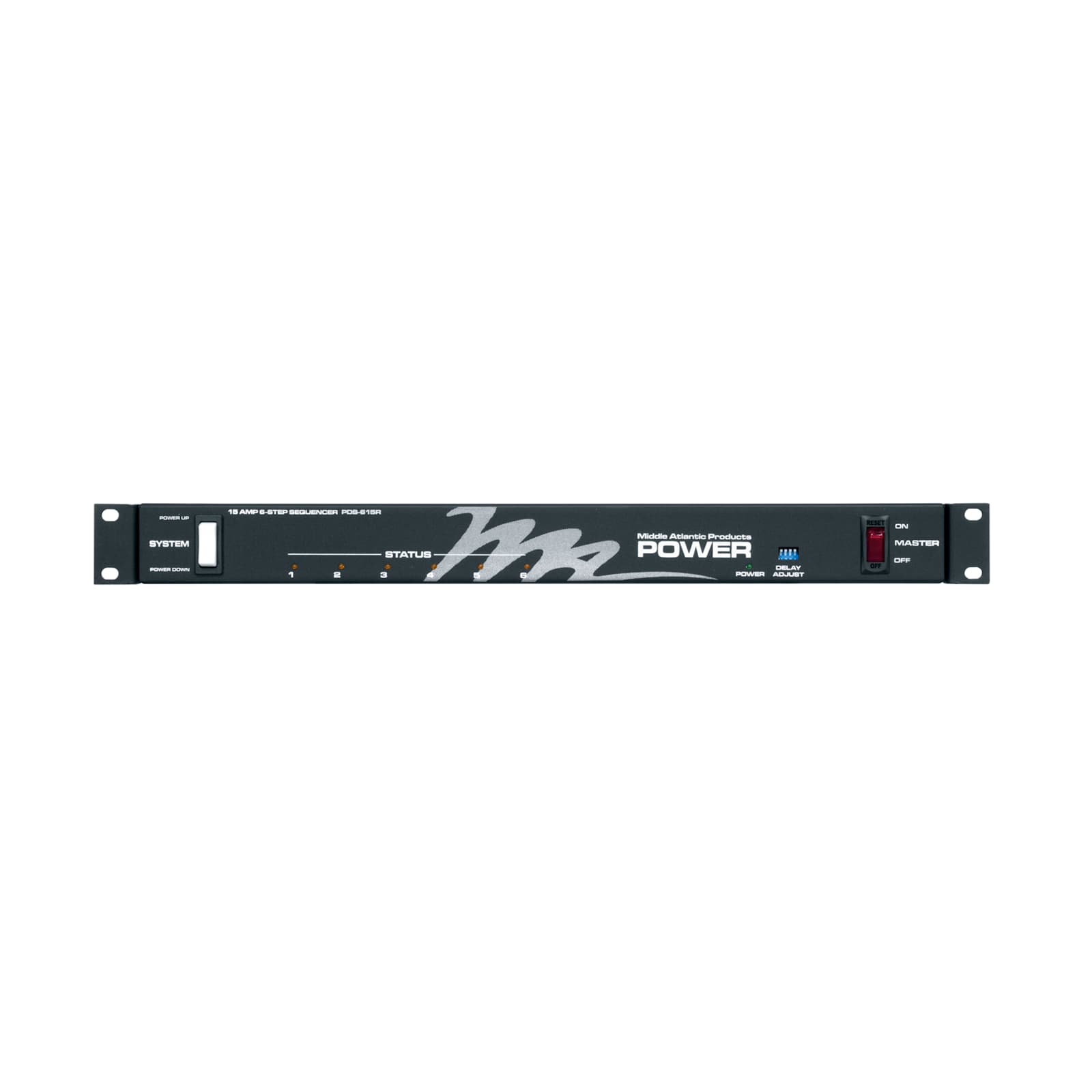

Multi-Mount Rackmount Power, 6 Outlet, 15A & 6-Step Sequencing
PDS-615R$869.40
Questions about this part
What accessories are required to complete the C3 Credenza assembly?
This is the base frame; you will need a C3 Series woodkit to fully enclose the system. You can also add a C3 Shelf Kit, a C3 Slide-Out Tech Kit, or a C3 Stationary Tech Kit based on your equipment needs.
Can I mount this frame to cinderblock or steel-studded walls?
Yes, this frame includes SNAPTOGGLE® Anchors specifically designed for secure installation in cinderblock or steel-studded wall environments.
Is the C3-FF24-1 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the USA.
Does this frame include hardware for mounting?
Yes, the C3-FF24-1 includes mounting hardware and also comes with one LL-VP2110 for mounting smaller devices.
How much weight can the C3-FF24-1 frame support?
The frame has a total weight capacity of 100 lbs (45.4 kg).
