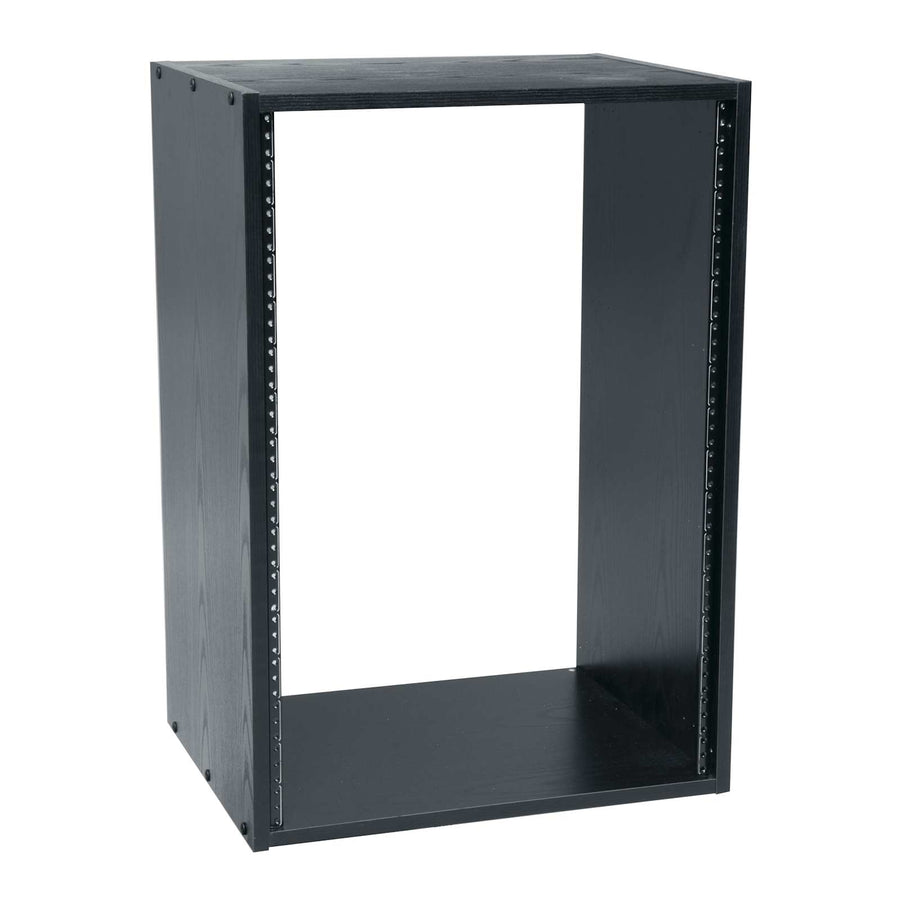

BRK Series Black Laminate Rack - BRK20-28
20 RU wood laminate rack with 28" depth, 250 lbs capacity, and black wood grain finish
The Middle Atlantic BRK20-28 is a 20 RU knockdown rack designed for efficient field assembly and shipping. This wood laminate enclosure features a black wood grain finish and a 28 in (71.1 cm) depth. It provides 20 RU of vertical space with a usable height of 35 in (88.9 cm) and a usable depth of 27.5 in (69.9 cm). The structure has a 250 lbs (113.4 kg) weight capacity and utilizes 10-32 threaded front and rear rackrails. This TAA compliant rack arrives in a knockdown state for flat shipment, allowing for easier transport to job sites. For submittals, the BRK Series Instruction Sheet or the A&E Specification Sheet provide necessary technical details.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 36.63 in (93 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 80 lbs (36.3 kg) |
| Usable Depth | 27.5 in (69.9 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 20.7 in (52.6 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747099533 |
Resources
You'll need these with it
1 RU Rack Vent Panel, Perforated with 25% Open Area
VTF1$27.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Flat Blank Rack Panel, Aluminum
PHBL-2$23.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
How much weight can the BRK20-28 rack support?
This rack has a weight capacity of 250 lbs (113.4 kg).
What is the usable depth and height for equipment?
The unit provides a usable depth of 27.5 in (69.9 cm) and a usable height of 35 in (88.9 cm).
What kind of rack rails are used in this model?
The BRK20-28 includes 10-32 threaded front and rear rackrails for mounting components.
Is the BRK20-28 TAA compliant?
Yes, this product is TAA compliant and also carries PEP certification.
What accessories are compatible with this rack?
Compatible items include VTF series vent panels, PHBL-2 blank panels, and various WUSS wide unit shelf systems.
