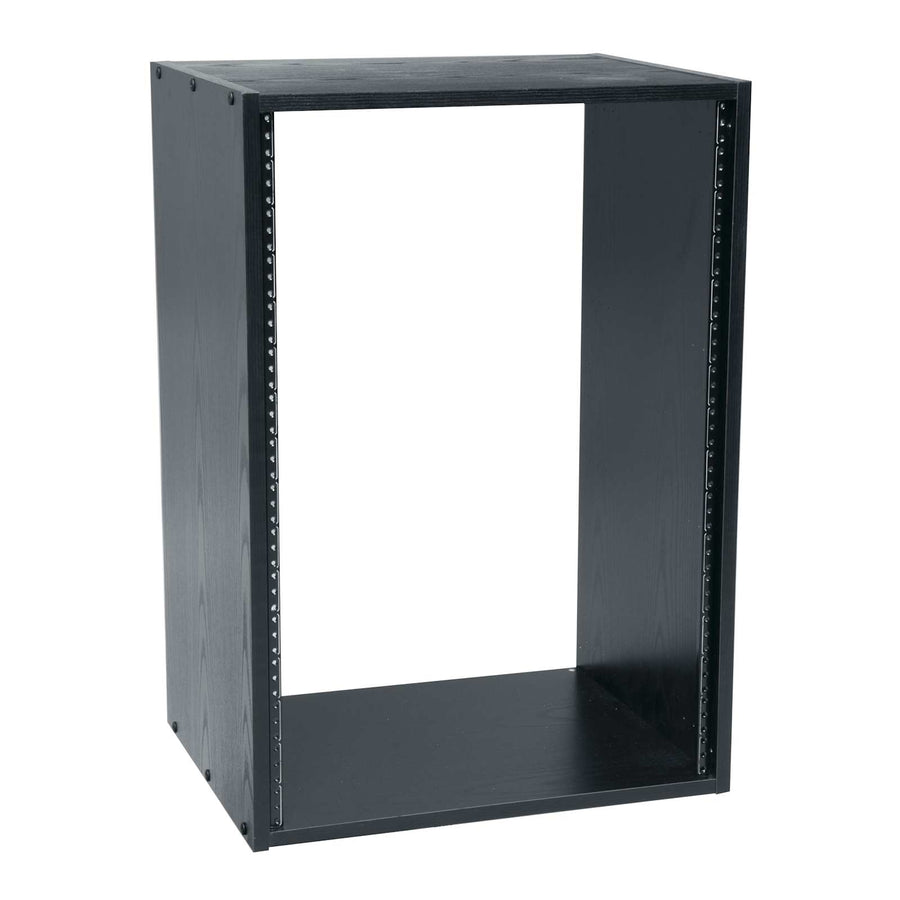

BRK Series Black Laminate Rack - BRK16-28
16 RU black wood grain laminate rack, 28 inches deep, with knockdown design for easy assembly
The BRK16-28 is a 16 RU wood laminate rack designed for efficient deployment in various professional AV installations. This series features a knockdown design, allowing for flat shipment via UPS and simplified on-site assembly using the included hardware. The unit is finished in a black wood grain and provides a total usable height of 28 inches (71.1 cm). With a total depth of 28 inches (71.1 cm) and a usable depth of 27.5 inches (69.9 cm), it is suitable for a variety of equipment depths. The rack structure supports a weight capacity of 200 lbs (90.7 kg) and utilizes 10-32 threaded front and rear rackrails to secure equipment. This TAA compliant rack is a versatile solution for system integrators requiring a professional aesthetic and reliable mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 28 in (71.1 cm) |
| Height | 29.63 in (75.3 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 74 lbs (33.6 kg) |
| Usable Depth | 27.5 in (69.9 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.7 in (52.6 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747099526 |
Resources
You'll need these with it
Rackmount Power/Cooling, 11 Outlet, 15A & 2-Stage Surge
PDCOOL-1115R$846.00
Caster Kit for Laminate Racks Heavy Duty
RKW-HD$135.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
16 RU Glass Door for RK, BRK, OBRKand MBRK Racks
RK-GD16$304.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
How much weight can the BRK16-28 hold?
The BRK16-28 has a weight capacity of 200 lbs (90.7 kg).
What is the usable depth of this 16 RU rack?
The rack has a total depth of 28 in (71.1 cm) with a usable depth of 27.5 in (69.9 cm).
Can I add a glass door to this rack?
Yes, the RK-GD16 is a 16 RU glass door compatible with this BRK series rack.
Does this rack support casters for mobility?
Yes, you can add the RKW-HD Caster Kit designed for heavy-duty laminate racks.
What do I need for submittals regarding this rack?
The BRK Series Instruction Sheet and the technical specification drawings are available in the resources tab.
