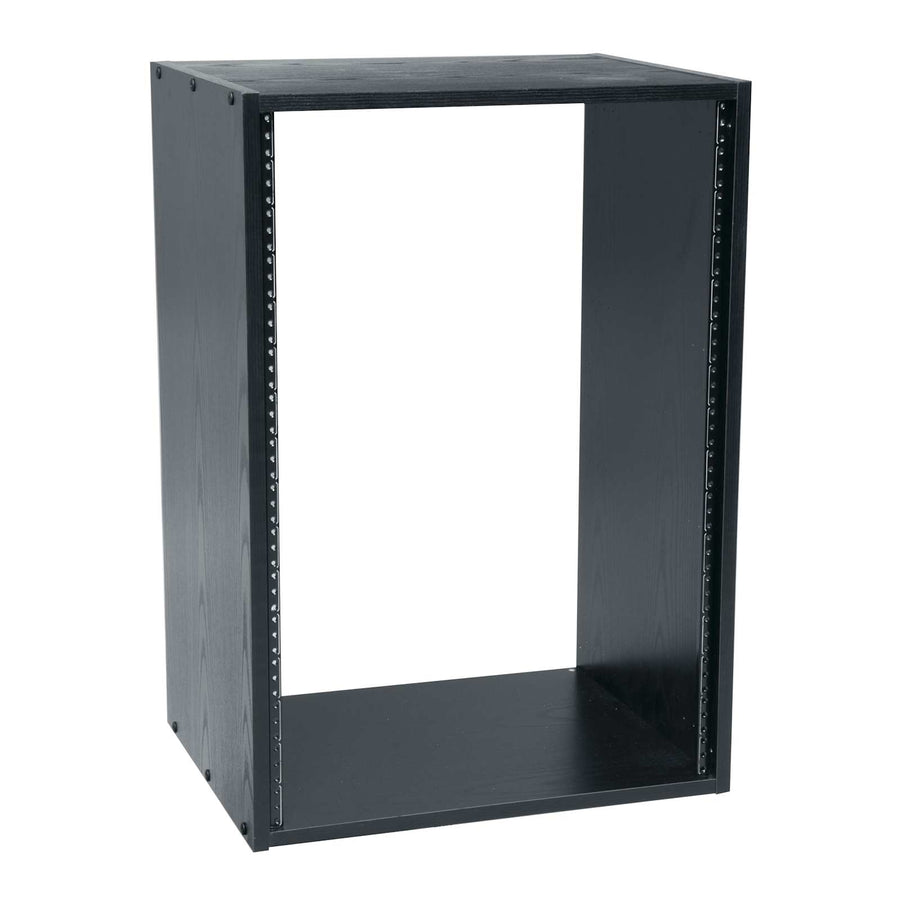

BRK Series Black Laminate Rack - BRK16-22
16 RU black laminate knockdown rack, 22 in (55.9 cm) depth, 200 lbs capacity
The Middle Atlantic BRK16-22 is a 16 RU wood rack designed for efficient deployment in various professional installations. This knockdown series is engineered for easy assembly using the included hardware, and its design allows for flat shipment via UPS to streamline logistics. The unit features a black wood grain finish and includes 10-32 threaded front and rear rackrails for secure equipment mounting. With a usable depth of 21.5 in (54.6 cm) and a weight capacity of 200 lbs (90.7 kg), this rack provides substantial support for heavy AV components. For enhanced security and airflow, this model is compatible with accessories such as the RK-GD16 glass door and the RK-RAP16 rear access panel. It is TAA compliant and meets PEP requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 29.63 in (75.3 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 62 lbs (28.1 kg) |
| Usable Depth | 21.5 in (54.6 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.7 in (52.6 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747099489 |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
16 RU Glass Door for RK, BRK, OBRKand MBRK Racks
RK-GD16$304.20

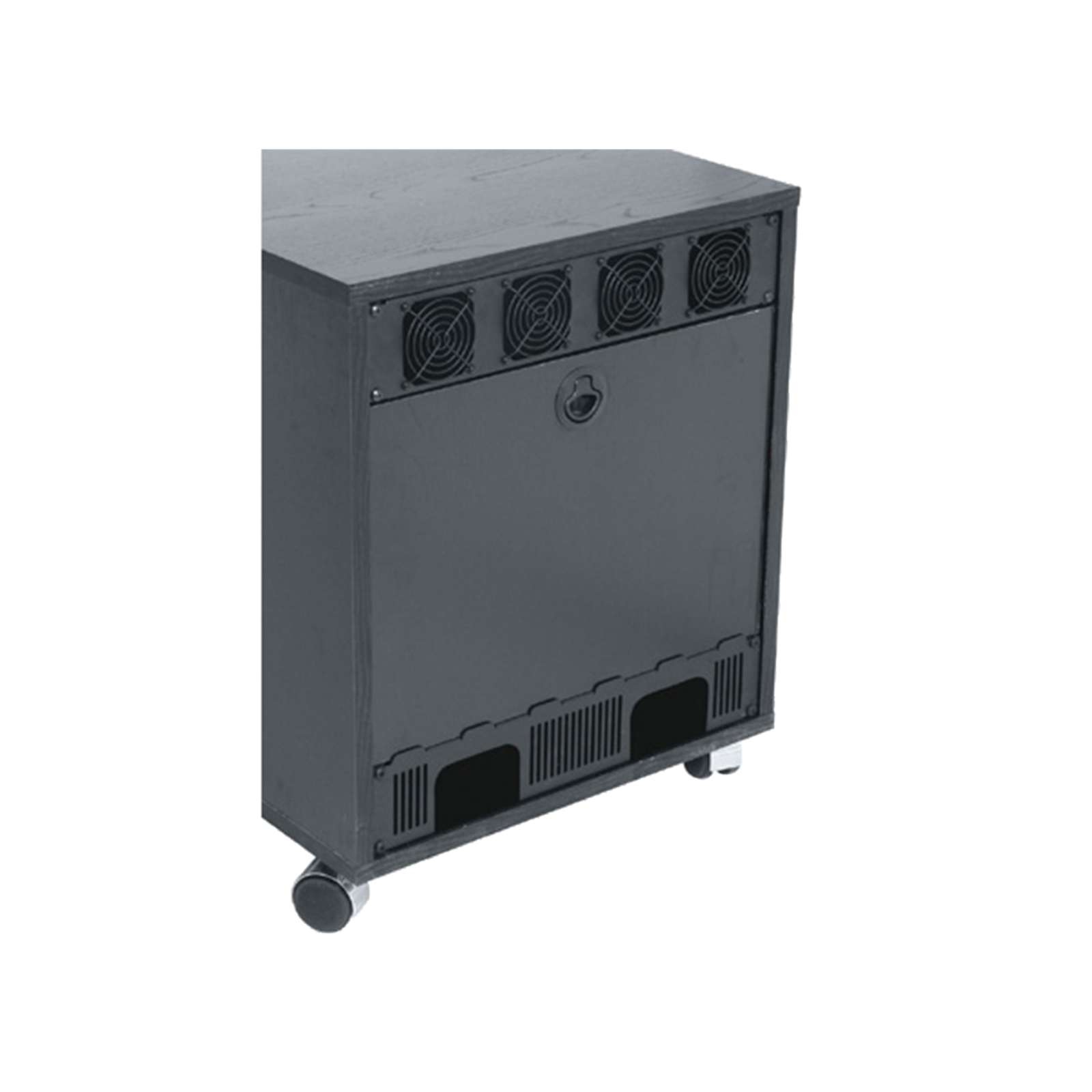

16 RU Rear Access Panel for BRK, MBRK,OBRK,RK Laminate Racks
RK-RAP16$320.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
Will the BRK16-22 fit my 16 RU equipment?
Yes, this rack provides 16 RU of vertical space with a usable height of 28 in (71.1 cm) and includes 10-32 threaded rackrails for standard mounting.
What accessories are compatible with the BRK16-22?
You can outfit this rack with the RK-GD16 glass door, the RK-RAP16 rear access panel, or various rackmount power modules like the RLM-20-1CA.
How much weight can this rack support?
The BRK16-22 has a total weight capacity of 200 lbs (90.7 kg) for mounted equipment.
Is the BRK16-22 TAA compliant?
Yes, this rack is TAA compliant and meets PEP certification standards.
What do I need to assemble this rack?
The rack is a knockdown type that ships with the hardware required for assembly included in the package.
