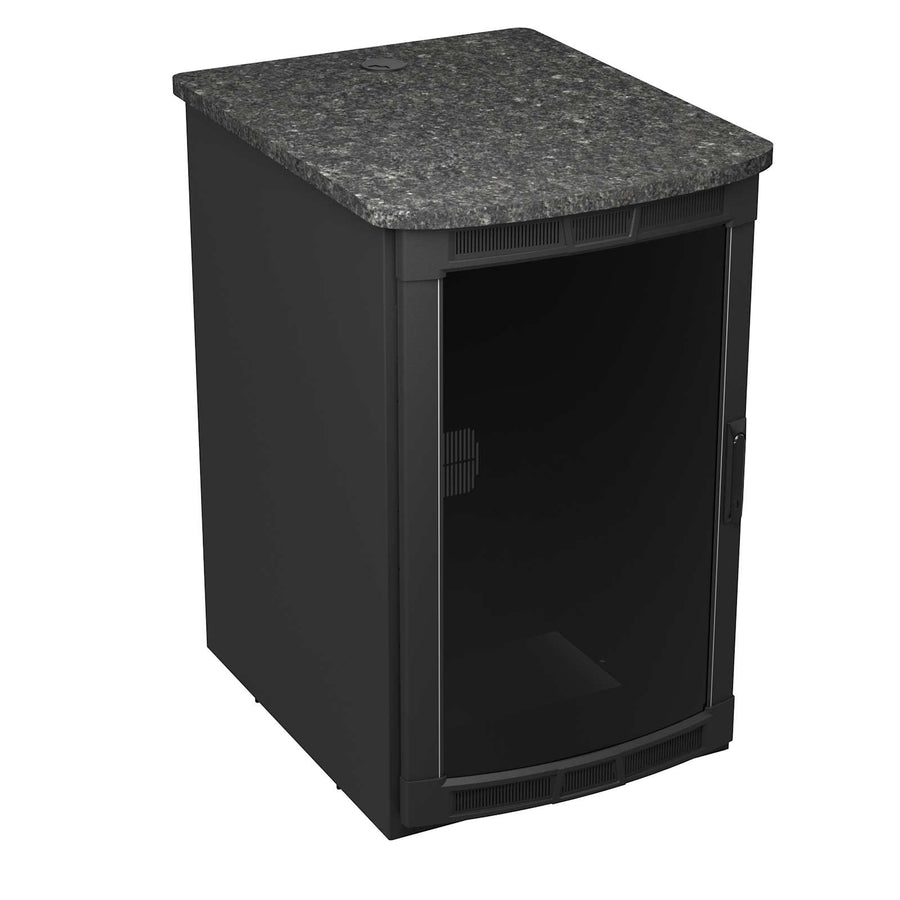

BGR-25SA27MDK-E2 Rolling Presentation Rack with Midnight Stone Top
25 RU mobile AV rack with Midnight Stone wood laminate top, 1100 lbs UL load capacity, and forward-compatible rackrails
The BGR-25SA27MDK-E2 is a 25 RU mobile AV rack designed to blend furniture aesthetics with professional-grade hardware. This rolling steel enclosure features a Midnight Stone high pressure laminate (HPL) top, providing a dedicated surface for mounting video monitors. The unit is built with a black wrinkle powder coat finish on steel and is TAA compliant. For equipment organization, the 23" width provides extra space for front-to-back cable management or mounting small devices using Lever Lock™ in the extra side area. This model includes the Forward Rackrail system, which is forward compatible with Forward blank panels, vent panels, and both horizontal and vertical cable management products. For secure access, the rack is equipped with a curved plexi front door, a rear door for cable entry, and 25mm x 150mm swing handles. The assembly is supported by a skirted wheelbase and leveling feet for stability, and it carries a UL Listed load capacity of 1100 lbs (499 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Midnight Stone |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402678 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
2 RU Flanged Blank Rack Panel, Wrinkled
WSB2$34.20
Questions about this part
Will the BGR-25SA27MDK-E2 work with my existing Forward management accessories?
Yes. This rack is Forward Compatible and features the Forward Rackrail system, which accepts Forward blank panels, vent panels, and both horizontal and vertical cable management products.
What is the maximum load capacity for this mobile rack?
This unit has a UL Listed load capacity of 1100 lbs (499 kg) and features a 24.4 in (62 cm) usable depth.
Can I mount a display on the top of the rack?
Yes, the BGR-25SA27MDK-E2 features a Midnight Stone high pressure laminate (HPL) top designed for monitor mounting.
What accessories are needed for cable management inside the rack?
The rack supports Forward vertical and horizontal cable management products, as well as Forward blank panels and vent panels for organized airflow.
Does this rack include a wheelbase for mobility?
Yes, the enclosure comes complete with a skirted wheelbase and includes leveling feet for a secure, stationary setup when needed.
