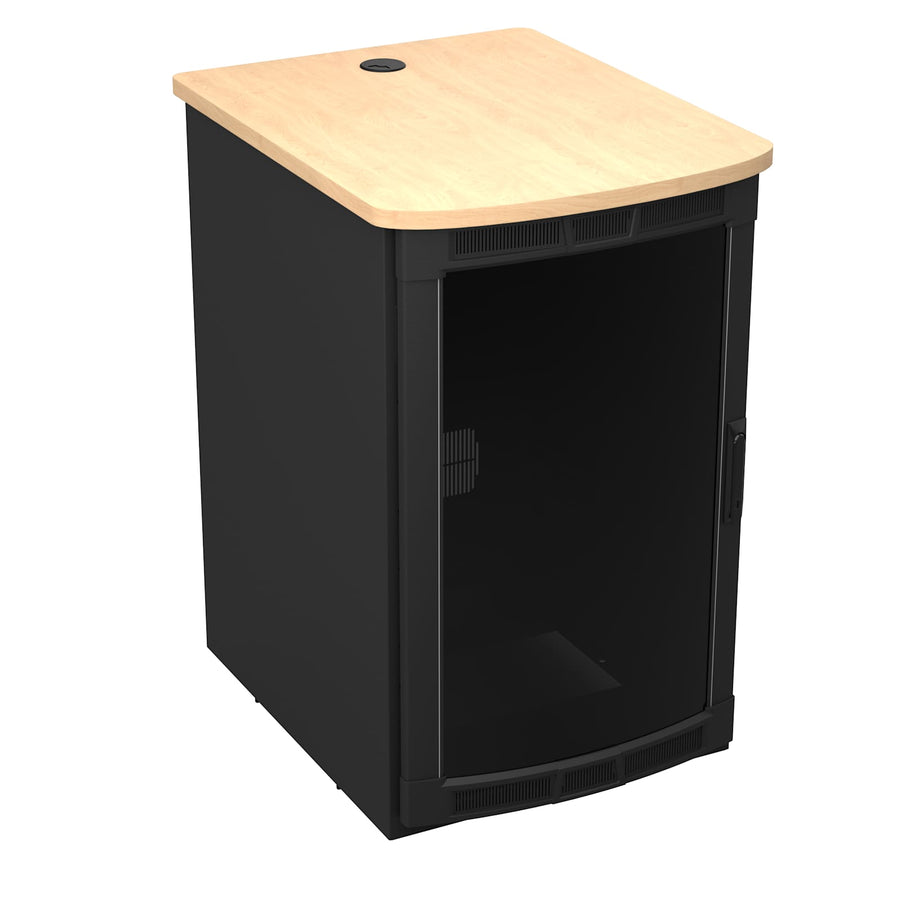

BGR-25SA27MDK-E1 Rolling Presentation Rack with Kensington Maple Top
25 RU mobile AV rack with Kensington Maple high-pressure laminate top, front and rear doors, and Forward Rackrail system
The Middle Atlantic BGR-25SA27MDK-E1 is a 25 RU mobile presentation rack that integrates professional-grade AV housing with high-end furniture aesthetics. It features a Kensington Maple high-pressure laminate (HPL) wood laminate top designed to accommodate video monitors for presentations. This steel enclosure is built with a black wrinkle powder coat finish and includes a skirted wheelbase with leveling feet for stable positioning. The unit is equipped with a curved plexi front door and a cable entry rear door for efficient access. It utilizes the Forward Rackrail system, which includes side lacing on the Forward rear rackrail to facilitate internal cabling and provides compatibility with Forward vertical and horizontal cable management products. The 23" width provides an extra 1.5" of clearance compared to standard 19" rails, creating a dedicated space for front-to-back cable management or mounting small devices via the Lever Lock system. This TAA-compliant, UL Listed mobile rack is designed for versatile, professional deployment in high-traffic environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Kensington Maple |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402661 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
2 RU Flanged Blank Rack Panel, Wrinkled
WSB2$34.20
Questions about this part
Will this rack fit my monitors?
The Kensington Maple HPL top is designed to accommodate video monitors for presentations, making it suitable for mobile display setups.
What is the difference between this and other BGR MDK racks?
This specific SKU, BGR-25SA27MDK-E1, is the 25 RU version with a Kensington Maple finish; other versions in the series offer different rack unit counts and wood finishes.
What cable management is compatible with the Forward Rackrail?
The Forward Rackrail system accepts Forward vertical cable management and horizontal cable management products, specifically designed for the side lacing on the rear rackrail.
How much weight can this mobile rack safely hold?
The unit has a UL Load Capacity of 1100 lbs (499 kg) and a product weight of 189 lbs (85.7 kg).
Does this rack include the necessary cooling accessories?
The rack is compatible with various fan panels, such as the UQFP-4RA 100 CFM Fan Panel, though these must be purchased separately.
