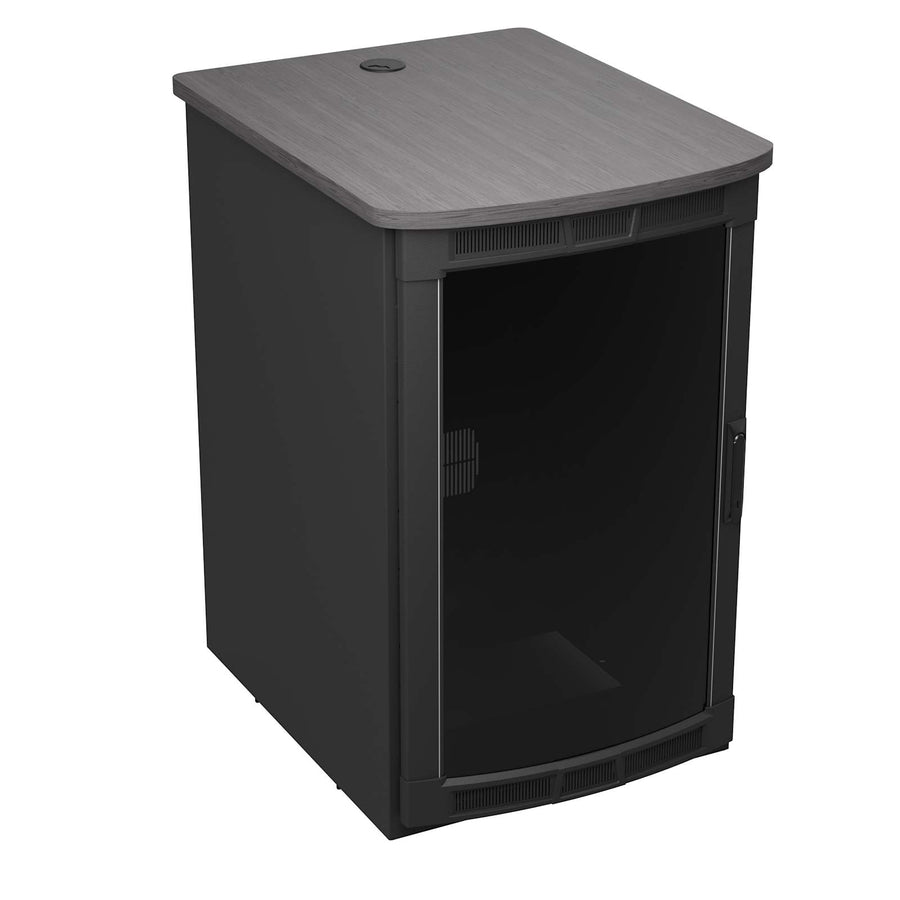

BGR-25SA27MDK-A3 Rolling Presentation Rack with Asian Night Top
25 RU mobile AV rack with an Asian Night HPL wood laminate top and 1100 lbs UL load capacity
The BGR-25SA27MDK-A3 is a 25 RU rolling presentation rack from the Middle Atlantic BGR-MDK series, designed to blend furniture elegance with heavy-duty performance. This mobile enclosure features a high-pressure laminate (HPL) top in Asian Night, which is suitable for mounting video monitors. The steel construction includes a black wrinkle powder coat finish and is equipped with a front curved plexiglass door and a rear door with cable entry. For ease of mobility, the unit includes a skirted wheelbase with leveling feet and 25mm x 150mm swing handles. This model is TAA compliant and is built in the USA. It utilizes the Forward Rackrail system, which is forward compatible with Forward blank panels, vent panels, and both horizontal and vertical cable management products. The 23-inch width provides additional lateral space for front-to-back cable management and accommodates small devices mounted on Lever Lock™ to maximize rackspace. With a UL Load Capacity of 1100 lbs (499 kg), this rack provides a stable, professional solution for mobile AV deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Asian Night |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402623 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60

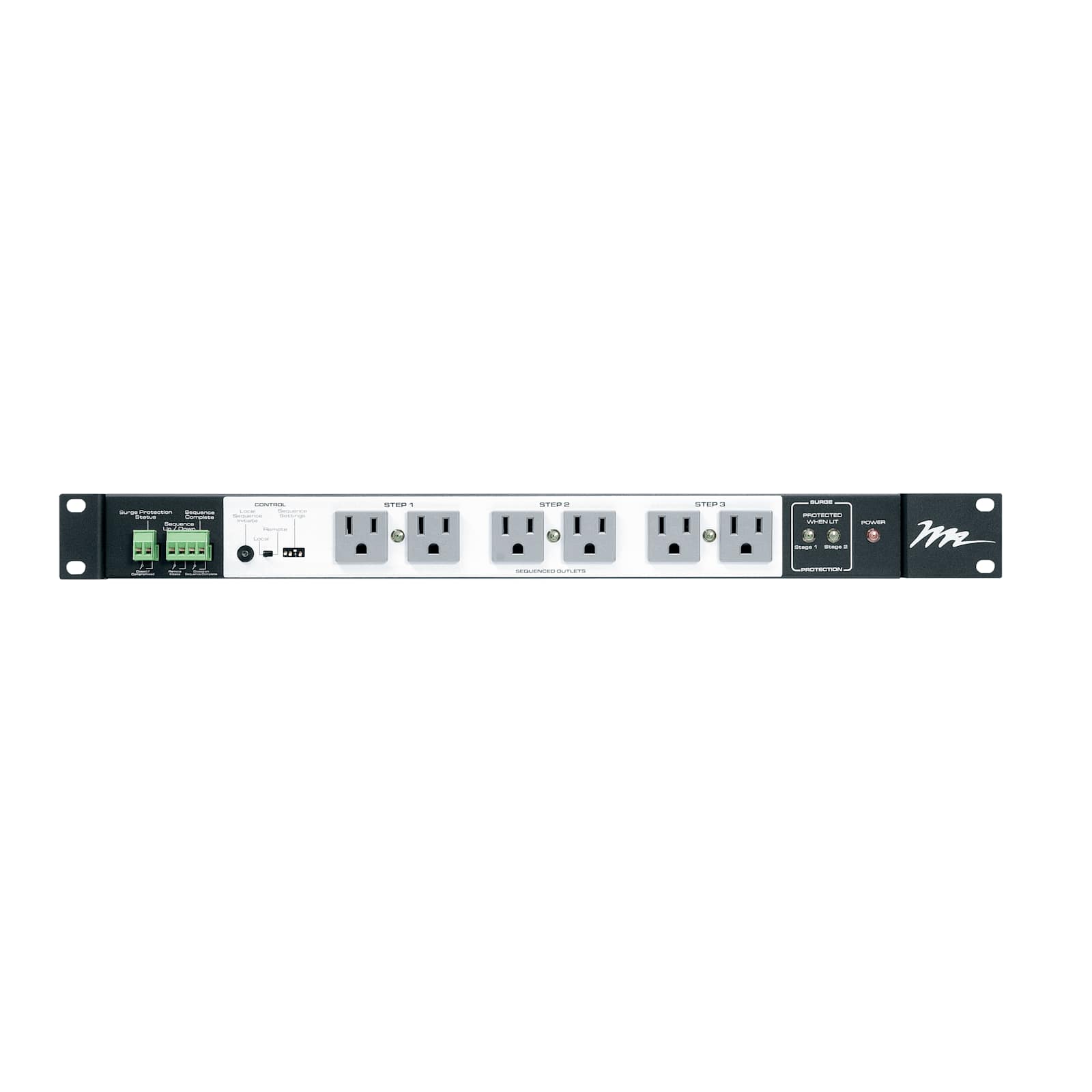

Multi-Mount Rackmount Power, 16 Outlet, 15A & 3-Step Sequencing
PDS-1615R$648.90
VTR/CPU Heavy-Duty Sliding Shelf Cover Panel for SS4-23VTR
SS-VTR-CVR4$86.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
What is the total weight capacity for this BGR-25SA27MDK-A3 rack?
This rack has a UL Load Capacity of 1100 lbs (499 kg).
Can I use this rack for monitor mounting?
Yes, the BGR-25SA27MDK-A3 features an Asian Night HPL wood laminate top that can accommodate video monitors.
What is the difference between this and other BGR-MDK series racks?
This SKU is the 25 RU version with an Asian Night finish; other models in the series vary by rack unit height and color options like Biltmore Cherry or Walnut Heights.
What accessories are needed for cable management?
The Forward Rackrail system is compatible with Forward blank panels, vent panels, and Forward vertical or horizontal cable management products.
Which document is best for technical submittals?
The BGR MDK Series CAD Technical Specification Drawings can be used for detailed submittals.
