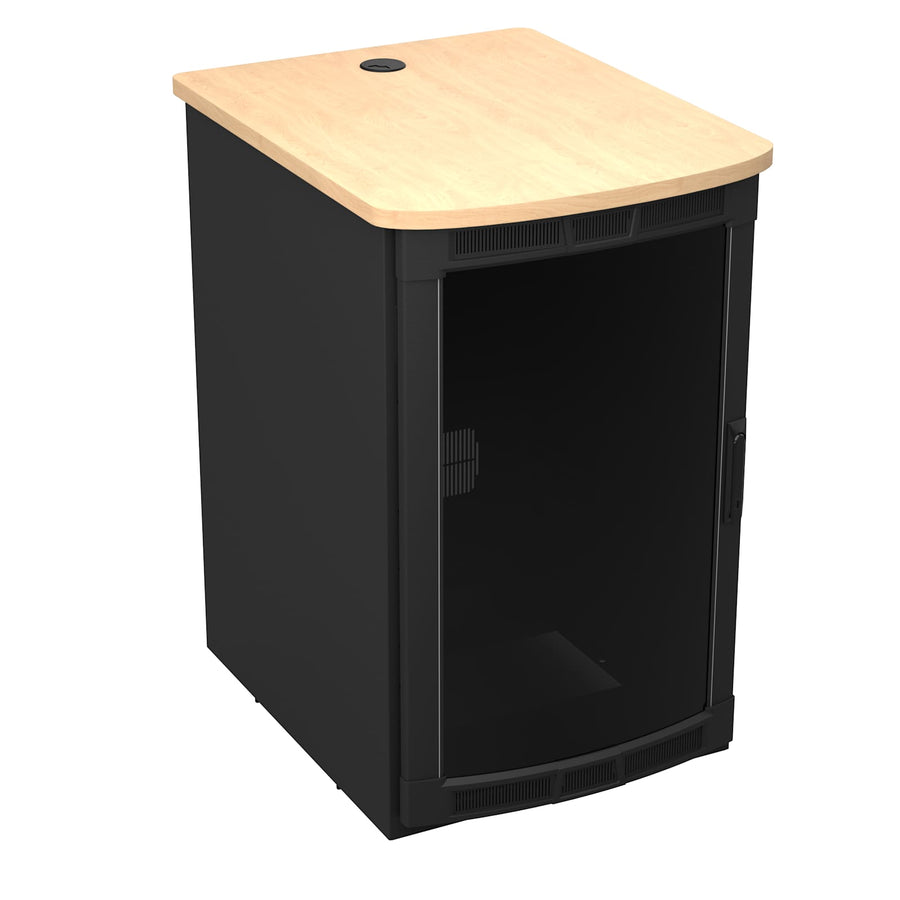

BGR-19SA27MDK-E1 Rolling Presentation Rack with Kensington Maple Top
19 RU mobile AV rack with a Kensington Maple wood laminate top and a 1100 lbs UL load capacity
The Middle Atlantic BGR-19SA27MDK-E1 is a mobile AV rack from the BGR MDK Series designed to combine professional-grade durability with furniture-style aesthetics. This 19 RU unit features a high-pressure laminate (HPL) top in a Kensington Maple finish, which is suitable for mounting video monitors in presentation environments. The enclosure is constructed from steel with a black wrinkle powder coat finish and includes both a curved plexiglass front door and a rear door designed for cable entry. This SKU is TAA compliant and features Forward Compatible rackrails, allowing for the integration of Forward blank panels, vent panels, and various cable management solutions. The 23-inch overall width provides a significant amount of extra space in the side channels, which facilitates front-to-back cable management or the mounting of small devices using Lever Lock™ hardware. For mobility, the unit is equipped with a skirted wheelbase and handles featuring a 25mm x 150mm swing design.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 39.5 in (100.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 165 lbs (74.8 kg) |
| Rack Units | 19 RU |
| Shipping Weight | 191 lbs (86.6 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 33.25 in (84.5 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Kensington Maple |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402586 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
2 RU Flanged Blank Rack Panel, Wrinkled
WSB2$34.20
Questions about this part
Will this rack fit my display monitors?
The BGR-19SA27MDK-E1 features a wood laminate top specifically designed to accommodate video monitors for presentation use.
What is the usable depth for mounting equipment?
This 19 RU mobile rack provides a usable depth of 24.4 in (62 cm) within a 31.35 in (79.6 cm) total depth profile.
What is the weight capacity for this mobile rack?
The unit has a UL listed load capacity of 1100 lbs (499 kg).
Can I use the Forward cable management system with this rack?
Yes, because this model is Forward Compatible, it accepts Forward blank panels, vent panels, and both horizontal and vertical cable management products.
Which technical documents are available for submittals?
Technical resources include CAD technical specification drawings, Revit models, and the BGR MDK Series A&E Specification Sheet.
