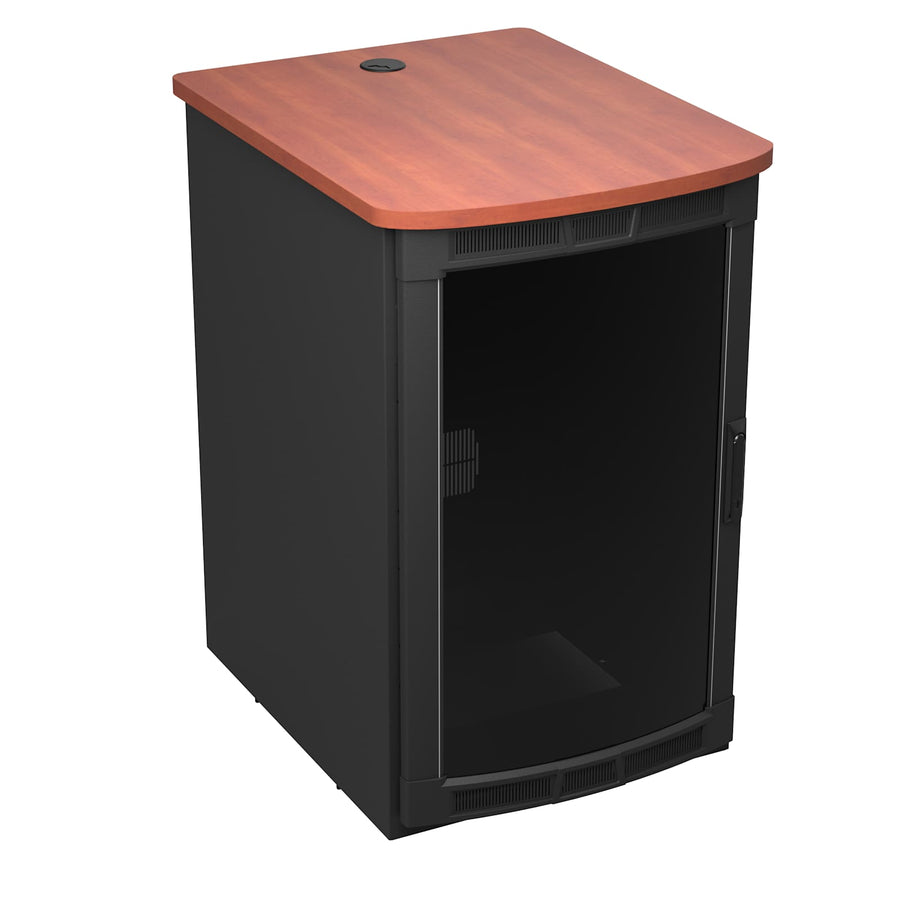

BGR-19SA27MDK-E0 Rolling Presentation Rack with Biltmore Cherry Top
19 RU mobile AV rack with a Biltmore Cherry high-pressure laminate top and a robust steel enclosure
The BGR-19SA27MDK-E0 is a professional-grade mobile AV rack from the Middle Atlantic BGR MDK Series that blends furniture-quality aesthetics with heavy-duty utility. This 19 RU enclosure features a Biltmore Cherry high-pressure laminate (HPL) wood top, providing a surface suitable for mounting video monitors. Constructed from steel with a Black Wrinkle Powder Coat finish, the unit includes a skirted wheelbase with leveling feet and a curved plexiglass front door. It is engineered for high-capacity installations, offering a UL Load Capacity of 1100 lbs (499 kg). This model is TAA compliant and is forward compatible with the Forward Rackrail system. The Forward Rackrail system includes innovative side lacing on the rear rackrail to assist with internal cabling and provides compatibility with Forward vertical cable management products. Its 24.5 inch (62.2 cm) width allows for extra clearance in the side channels, making it easy to mount small devices on Lever Lock™ hardware or manage front-to-back cabling without consuming primary rackspace.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 39.5 in (100.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 165 lbs (74.8 kg) |
| Rack Units | 19 RU |
| Shipping Weight | 191 lbs (86.6 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 33.25 in (84.5 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Biltmore Cherry |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402579 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
FTA Series 4 Inch DC Fan
FT-FAN$90.00
1 RU Fan Tray, 6 Fans, 414 CFM
FTA-6$701.10
PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
PDT-615C-NS$232.20
NEXSYS™ 1500VA, 15 Amp Online UPS Backup Power System, Bank Outlet Control
UPX-OL1500R-2$3,300.30

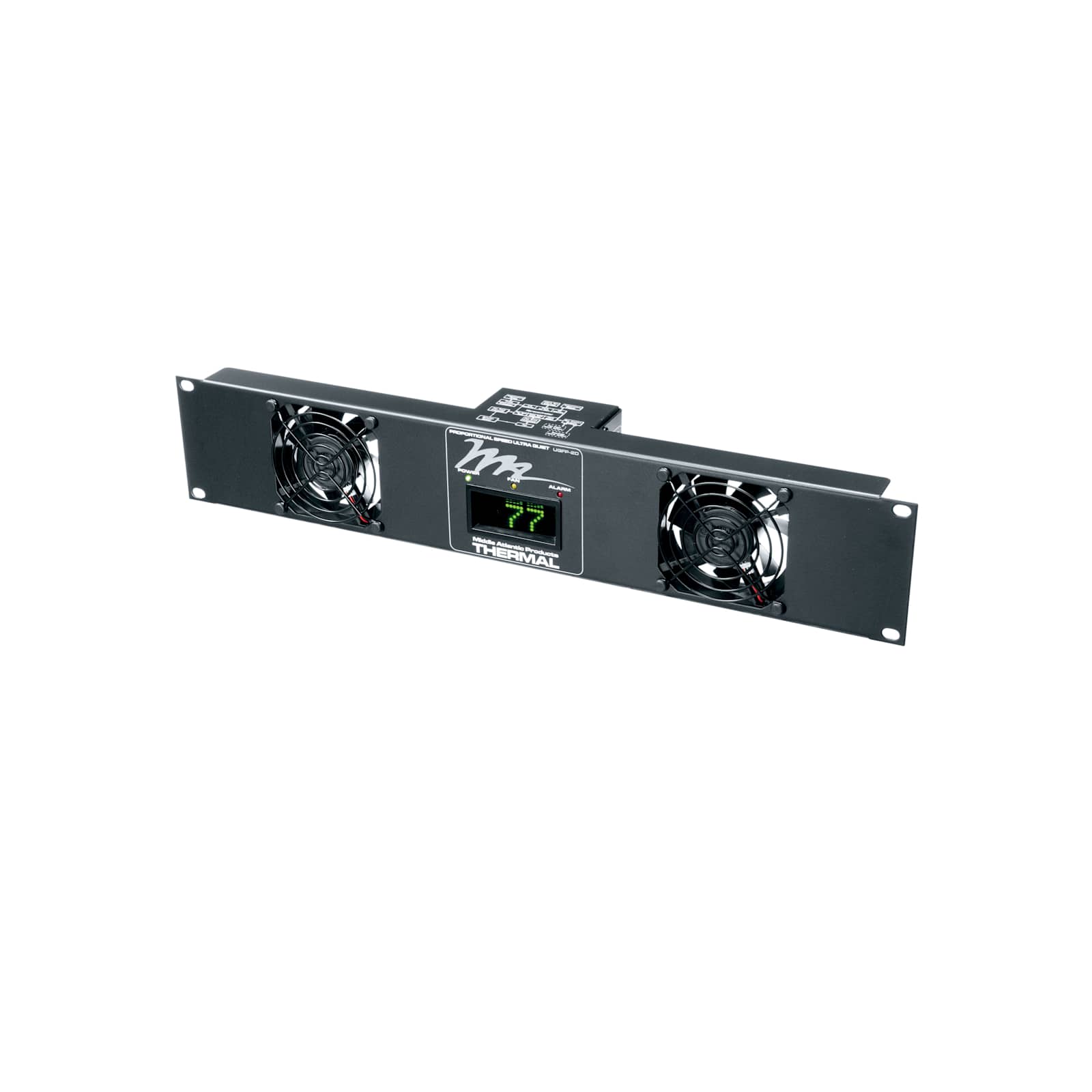

50 CFM Fan Panel with Display, 24dB
UQFP-2D$957.60
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
Questions about this part
Will this rack fit my equipment and monitor?
The BGR-19SA27MDK-E0 is a 19 RU rack with a 24.4 in (62 cm) usable depth and features a wood laminate top designed to accommodate video monitors.
What is the weight capacity of this mobile rack?
This unit is UL Listed with a load capacity of 1100 lbs (499 kg) and has a product weight of 165 lbs (74.8 kg).
Is this rack compatible with the Middle Atlantic Forward series?
Yes, this rack is Forward Compatible and utilizes Forward Rackrails, which accept Forward blank panels, vent panels, and vertical cable management.
What are the dimensions of the BGR-19SA27MDK-E0?
The unit stands 39.5 in (100.3 cm) high with a width of 24.5 in (62.2 cm) and a depth of 31.35 in (79.6 cm).
Which documents are available for submittals?
Installers can access the BGR MDK Series A&E Specification Sheet, CAD Technical Drawings, and Revit Models via the resources tab.
