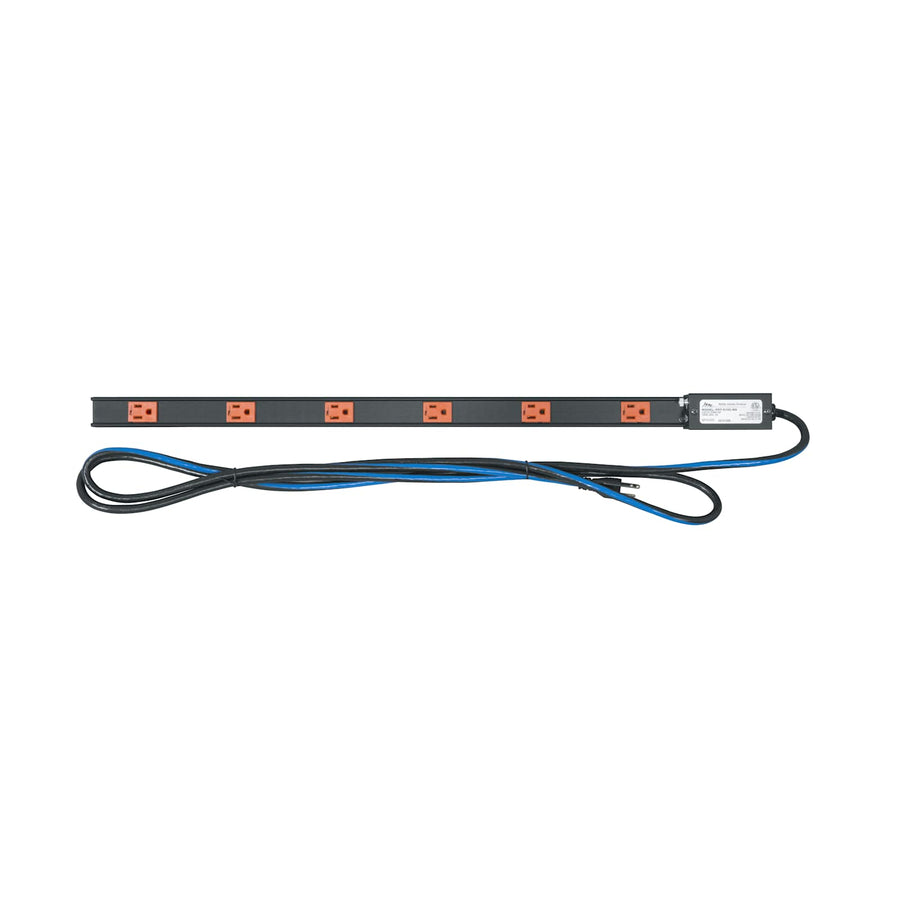

PDT Low Profile Vertical Power Strip, 6 Outlet, 15A
Low-profile vertical power strip with 6 outlets, 15A capacity, and 9 ft (2.7 m) SignalSAFE cord for rack mounting
The Middle Atlantic PDT-615C-NS is a low-profile vertical power strip designed to expand outlet availability within a rack without sacrificing valuable mounting space. Featuring a thin 1.58 in (4 cm) width and 2.1 in (5.3 cm) depth, this 6-outlet PDU mounts unobtrusively in the rear of a rack, placing power sources directly adjacent to the equipment requiring them. This unit operates on 120 VAC with a 15 Amp capacity and is ETL Listed for safety. To address potential electromagnetic interference in dense AV environments, this corded model utilizes SignalSAFE™ wire, which helps minimize AC magnetic field interference from surrounding rack equipment. Installation is streamlined through a snap-in mounting system that is compatible with all styles of Middle Atlantic rack rail brackets. The unit includes the necessary mounting hardware for a quick one-two clip installation and features a 9 ft (2.7 m) 5-15P plug-type cord.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 29.88 in (75.9 cm) |
| Shipping Weight | 3.5 lbs (1.6 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 6 |
| Plug Type | 5-15P |
| UPC | 656747198922 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-615C-NS fit in my existing Middle Atlantic rack?
Yes, this PDU is designed to mount to every style of Middle Atlantic rack rail brackets using the included hardware.
How does the SignalSAFE wire help with interference?
The 9 ft (2.7 m) SignalSAFE wire is specifically designed to minimize potential interference caused by AC magnetic fields from other equipment in the rack.
What is the difference between this and other PDT models?
While this SKU offers 6 outlets, the PDT series includes other variants in the Select Series with different outlet counts to suit your specific rack space requirements.
What kind of plug does this power strip use?
The PDT-615C-NS features a standard 5-15P plug type on its 9 ft (2.7 m) cord.
Which document should I use for a submittal?
You can use the PDT Series Thin Power Distribution A&E Specification Sheet (PDF) or the 3 Part Specification (docx) for submittals.
