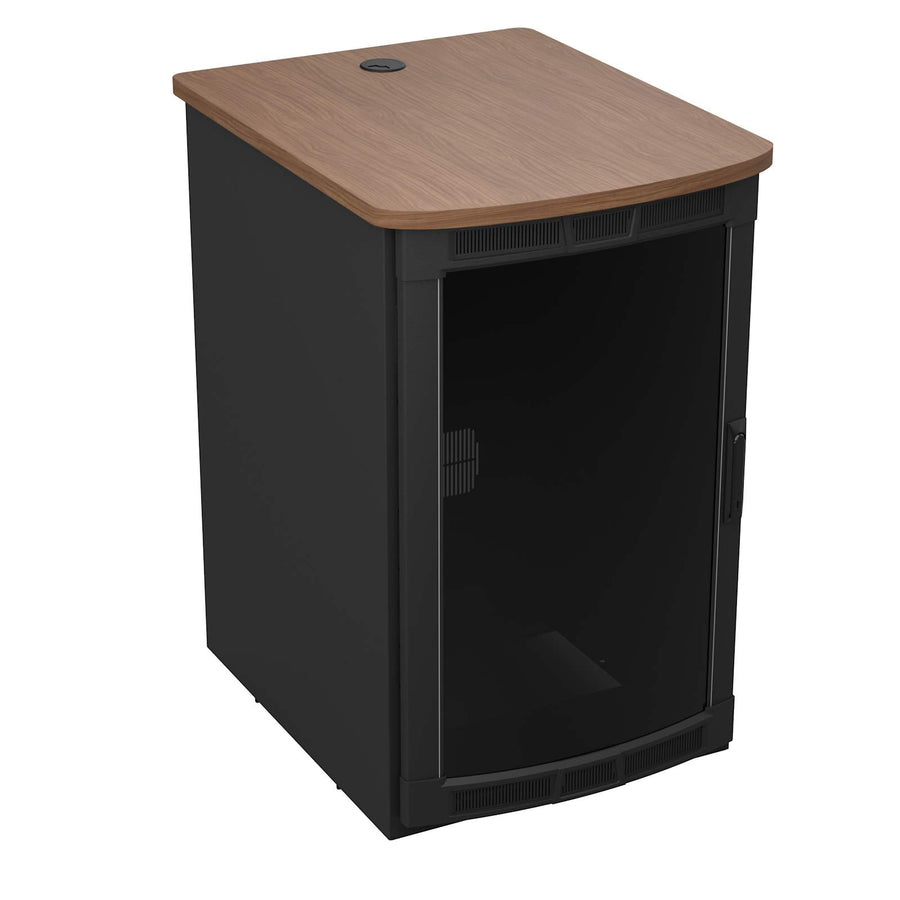

BGR-19SA27MDK-D0 Rolling Presentation Rack with Walnut Heights Top
19 RU mobile AV rack featuring a Walnut Heights HPL monitor top and Forward Compatible rackrails
The BGR-19SA27MDK-D0 is a 19 RU mobile AV rack from the Middle Atlantic BGR MDK series designed to blend professional-grade durability with furniture-style aesthetics. This rolling enclosure features a Walnut Heights high-pressure laminate (HPL) wood laminate top, which provides a stable surface suitable for monitor mounting. The unit is constructed from steel with a black wrinkle powder coat finish and includes a skirted wheelbase and leveling feet for stability on various floor surfaces. For ease of access and maintenance, the rack is equipped with a curved plexi front door, a cable entry rear door, and 25mm x 150mm swing handles. This model is Forward Compatible, utilizing the Forward Rackrail system which features innovative side lacing on the rear rackrail to facilitate flexible internal cabling. This extra-wide 23" width provides additional space for front-to-back cable management and allows for mounting small devices on Lever Lock™ hardware to maximize usable rackspace. This TAA compliant, UL Listed unit is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 39.5 in (100.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 165 lbs (74.8 kg) |
| Rack Units | 19 RU |
| Shipping Weight | 191 lbs (86.6 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 33.25 in (84.5 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Walnut Heights |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402609 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
Questions about this part
Will the BGR-19SA27MDK-D0 fit my equipment?
This 19 RU rack is designed for standard 19-inch panel width equipment and features a usable height of 33.25 in (84.5 cm) and a usable depth of 24.4 in (62 cm).
What accessories are needed for cable management?
The Forward rackrail system is compatible with Forward blank panels, vent panels, and both horizontal and vertical cable management products.
What is the weight capacity of this mobile rack?
This steel enclosure has a UL Load Capacity of 1100 lbs (499 kg) and a product weight of 165 lbs (74.8 kg).
How do I manage cabling inside the BGR-19SA27MDK-D0?
The Forward rear rackrail includes side lacing to provide flexibility for internal cabling, and the 23" width offers additional space for front-to-back management.
Can I use this rack for submittals?
Detailed technical drawings, including CAD and Revit models, are available in the Resources tab for system integration planning.
