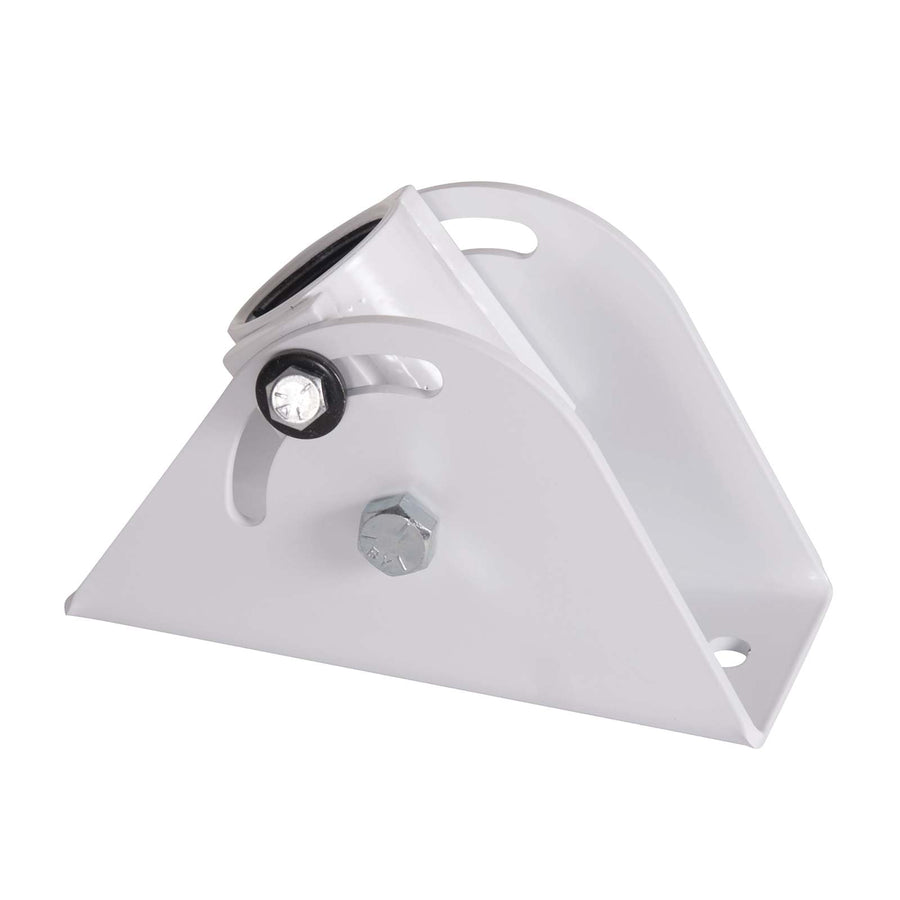

Angled Ceiling Plate in White
White angled ceiling plate for projector installations, featuring a 500 lbs weight capacity and UL Listing
The Chief CMA395W is an angled ceiling plate designed to provide a cost-effective and attractive solution for basic projector installations. Finished in white, this plate is intended for use with angled ceiling applications where a clean aesthetic is required. The unit features a 7.5 in (19.1 cm) ceiling plate size and 7.5 in (19.1 cm) depth to accommodate standard mounting needs. It is UL Listed for safety and performance. This plate is part of the Chief Ceiling Plates series and is designed to integrate with various Chief extension columns, such as the CMS006W 6-inch fixed column or the CMS0305W 3-5' adjustable extension column, to provide the necessary height for the specific installation environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Plate Size | 7.5 in (19.1 cm) |
| Depth | 7.5 in (19.1 cm) |
| Height | 4.4 in (11.2 cm) |
| Overall Dimensions | 4.4" x 3.4" x 7.5" (111 x 86 x 191 mm) |
| Shipping Weight | 4.55 lbs (2.1 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 3.4 in (8.6 cm) |
| Accessory Type | Ceiling Plates and Adapters |
All other specifications 6
| Application | Angled Ceiling |
| Ceiling Plate Type | Angled |
| Color | White |
| TAA Compliant | No |
| UPC | 841872092553 |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS0305W, 3-5' Adjustable Extension Column, Pole
CMS0305W$185.60
CMS0203W, 2-3' Adjustable Extension Column, Pole
CMS0203W$166.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
CMS009W, 9 Inch Fixed Extension Column, Pole
CMS009W$41.60
CMS009, 9 Inch Fixed Extension Column, Pole
CMS009$41.60
CMS006W, 6 Inch Fixed Extension Column, Pole
CMS006W$22.40
CMS006, 6 Inch Fixed Extension Column, Pole
CMS006$22.40
CMS018024, 18-24 Inch Adjustable Extension Column, Pole
CMS018024$153.60
CMS060W, 60 Inch Fixed Extension Column, Pole
CMS060W$101.60
Questions about this part
What is the weight capacity of the CMA395W?
The CMA395W has a weight capacity of 500 lbs (226.8 kg).
Which Chief extension columns are compatible with this plate?
This plate is compatible with a wide range of Chief columns, including the CMS003W 3-inch fixed column, CMS006W 6-inch fixed column, and the CMS0305W 3-5' adjustable extension column.
Is the CMA395W UL Listed?
Yes, this ceiling plate is UL Listed.
What are the dimensions of the CMA395W?
The overall dimensions are 4.4" x 3.4" x 7.5" (111 x 86 x 191 mm).
What is the difference between the CMA395W and the black version?
The CMA395W is the white finish version of this ceiling plate, intended for installations where a white aesthetic is preferred.
