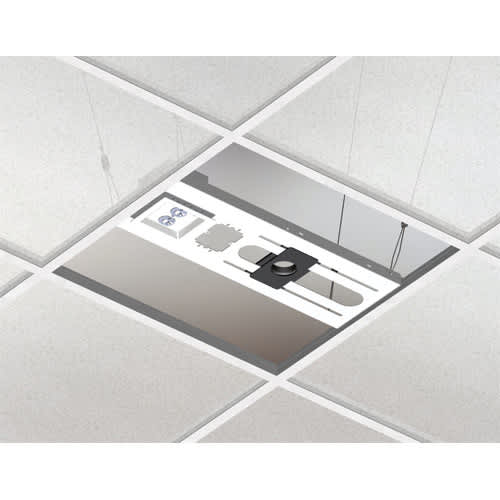

Above Tile Suspended Ceiling Kit & 3 Inch Fixed Pipe
Suspended ceiling projector kit for 2'x2' and 2'x4' tiles, includes a 3" fixed pipe and 50 lbs total weight capacity
The Chief CMA443 is an economical and efficient mounting solution specifically designed for suspended ceiling environments. This bundle provides everything needed for an above-tile installation by combining the CMA440 Above Tile Suspended Ceiling Kit with the CMS003 3" Fixed Pipe. It is engineered to clamp easily to ceiling tracks, making it one of the most straightforward kits to install in a professional setting. This kit supports a total weight capacity of 50 lbs (22.7 kg), a figure that accounts for the combined weight of the projector, the mounting hardware, and the column itself. Designed for versatility, the kit is compatible with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. This UL Listed assembly includes a 10 ft (304.8 cm) safety cable and a 20 ft (609.6 cm) strand wire to ensure secure installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) |
| Depth | 8 in (20.3 cm) |
| Height | 1.2 in (3.1 cm) |
| Shipping Dimensions | 34.75" x 10.75" x 2" (882.7 x 273.1 x 50.8 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 24.4 in (62 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 10
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | White |
| Column Type | Fixed |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | No |
| UPC | 841872062037 |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS012018W, 12-18 Inch Adjustable Extension Column, Pole
CMS012018W$142.40
Above-Tile Storage Accessory-CMA472
CMA472$137.60
Speed-Connect Suspended Ceiling Tile Replacement Kit
CMS445$275.20
Speed-Connect Above Tile Suspended Ceiling Kit
CMS440$150.40
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS0305W, 3-5' Adjustable Extension Column, Pole
CMS0305W$185.60
CMS0203W, 2-3' Adjustable Extension Column, Pole
CMS0203W$166.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
CMS009W, 9 Inch Fixed Extension Column, Pole
CMS009W$41.60
CMS009, 9 Inch Fixed Extension Column, Pole
CMS009$41.60
Questions about this part
What is the total weight capacity of the CMA443 kit?
The kit supports a total weight of 50 lbs (22.7 kg), which includes the weight of the projector, the column, and the mount.
What ceiling tile sizes are compatible with this kit?
The CMA443 is designed for use with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) suspended ceiling tiles.
What is included in the CMA443 bundle?
This bundle includes the CMA440 Above Tile Suspended Ceiling Kit and the CMS003 3" Fixed Pipe, plus a 10 ft safety cable and 20 ft strand wire.
Does the CMA443 include a power outlet for the projector?
No, this specific kit does not include a power outlet; it is a mechanical mounting solution.
What do I need if I need a longer extension than the included 3" pipe?
You can use the CMS003 3" Fixed Pipe included here, or purchase adjustable extension columns like the CMS012018W or CMS0305W.
