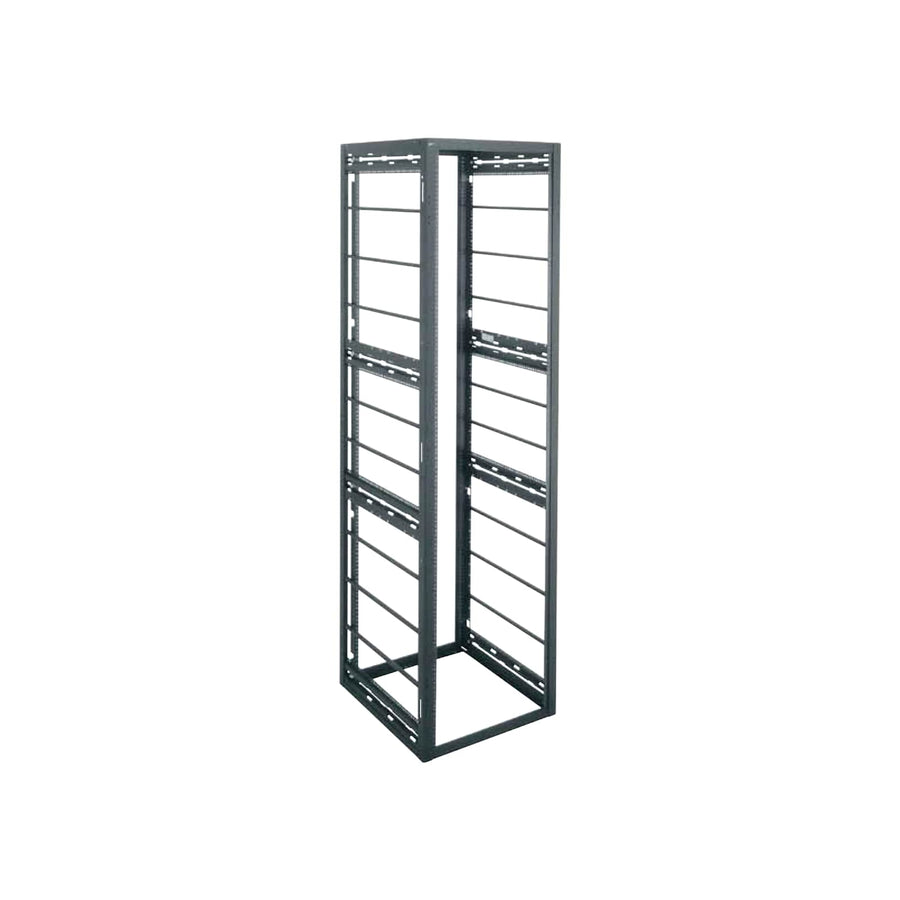

52 RU GRK Series Broadcast Rack, 30 Inches Deep
52 RU floor-standing broadcast rack, 30 inches deep, with 1,500 lbs capacity and welded gangable construction
The Middle Atlantic GRK-52-30HLRD is a 52 RU floor-standing broadcast rack designed for high-density video environments. This welded gangable rack features a solid frame top and bottom to ensure robust construction for heavy equipment loads. With a 1,500 lbs (680.4 kg) weight capacity, it is engineered to support extensive hardware installations. The rack allows for straight vertical cable runs through a fully open top and bottom, and includes finished edges at these openings to prevent cable chafing. This 30 in (76.2 cm) deep unit includes integrated horizontal cable management bars for tie-and-slide lacing. For easier installation, the rack features numbered rackspace increments. Standard top and bottom grounding and bonding studs are included for electrical safety. This model is TAA compliant and UL Listed, making it suitable for various professional broadcast and facility applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 30 in (76.2 cm) |
| Height | 94 in (238.8 cm) |
| Rack Units | 52 RU |
| Shipping Weight | 265 lbs (120.2 kg) |
| Weight Capacity | 1500 lbs (680.4 kg) |
| Federal Ops Country of Origin | USA |
| Rear Door | No |
| TAA Compliant | Yes |
| UPC | 656747062490 |
| Certifications | cULusTAAUL Listed |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
52 RU Rackrail 10-32 for GRK Series
GRK-RR52$260.10
52 RU GRK Pro RAIL - 1 Pair
PROGRK-RR52$260.10
52 RU Split Rackrail 10-32 for GRK Series
GRK-RR-S52
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
What is the weight capacity of the GRK-52-30HLRD?
This rack has a 1,500 lbs (680.4 kg) weight capacity and is built with a solid frame top and bottom for heavy-duty use.
Is the GRK-52-30HLRD TAA compliant?
Yes, this 52 RU rack is TAA compliant and carries UL, cULus, and UL-2416 (NWIN) certifications.
What accessories are compatible with the GRK Series?
Compatible accessories include the QTFP-2 100 CFM Fan Panel, various Select Series PDUs like the RLM30-L530-1, and WUSS17-5 Wide Unit Shelves.
How does the cable management work on this rack?
The rack features horizontal cable management bars designed for tie-and-slide lacing and allows for straight vertical cable runs through the open top and bottom.
What is the difference between this and the GRK-52-30 series variants?
This specific SKU is the 30-inch deep, 52 RU version; other models in the series offer different lengths and RU counts like 44 RU or 48 RU.
