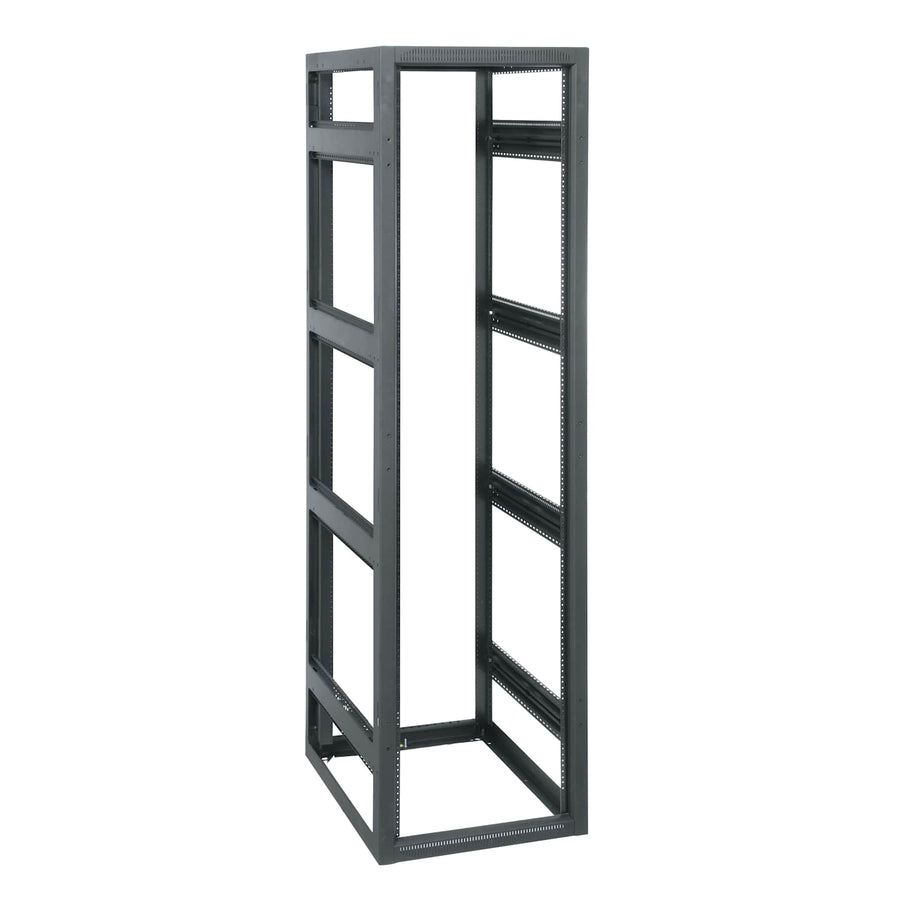

45 RU BGR Series Rack, 38 Inches Deep without Rear Door
45 RU floor-standing rack, 38" deep, featuring seismic rating, TAA compliance, and Forward Rackrail compatibility
The Middle Atlantic BGR-4538LRD is a 45 RU floor-standing rack designed for high-performance AV environments requiring massive capacity and rapid deployment. This frame-only configuration features a 38 in (96.5 cm) depth with a 23 in (58.4 cm) width, providing significant lateral space for front-to-back cable management and mounting small devices via the Lever Lock™ system. This specific model is delivered as a frame without a rear door, offering an open-access configuration for thermal management or custom door integration. The Forward Rackrail design includes numbered spaces and adjustable front and rear rails, making it highly versatile for complex cabling. Built for demanding installations, this steel rack is Seismic Rated with a seismic load capacity of 1175 lbs (533 kg) and holds a UL Load Capacity of 3000 lbs (1,360.8 kg). It is also TAA compliant and holds OSHPD (OPM-0444-13) and ASCE certifications, making it suitable for highly regulated environments. The 25mm x 150mm swing handles facilitate easy access to internal components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 38 in (96.5 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 165 lbs (74.8 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 35.4 in (89.9 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140181 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
45 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR45$219.60
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
276 CFM Fan Top, with Controller for BGR Series
BGR-276FT-FC$801.00
10-32 Rackscrew Truss-Head - 100 Piece
HP$41.40
552 CFM Fan Top, for BGR Series
BGR-552FT$656.10
45 RU Cable-Entry Rear Door for BGR Racks
BGR-RDC45$372.60
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the BGR-4538LRD fit my seismic requirements?
Yes, this rack is Seismic Rated with a seismic load capacity of 1175 lbs (533 kg) and carries ASCE certification.
What is the difference between this and the BGR series with a rear door?
This BGR-4538LRD is a frame-only configuration with no rear door; for cable entry options, the BGR-RDC45 45 RU Cable-Entry Rear Door is available.
What other components are compatible with this rack?
The rack accepts several accessories, including the CBS-BGR Caster Base, BGR-552FT Fan Tops, and various Select Series PDUs like the PD-2420SC-NS.
What tools are needed for installation?
An installer will need a 10-32 Rackscrew Truss-Head (such as the HP model) to secure equipment to the Forward Rackrail.
Is this rack suitable for TAA compliant projects?
Yes, the BGR-4538LRD is TAA compliant and was manufactured in the USA.
