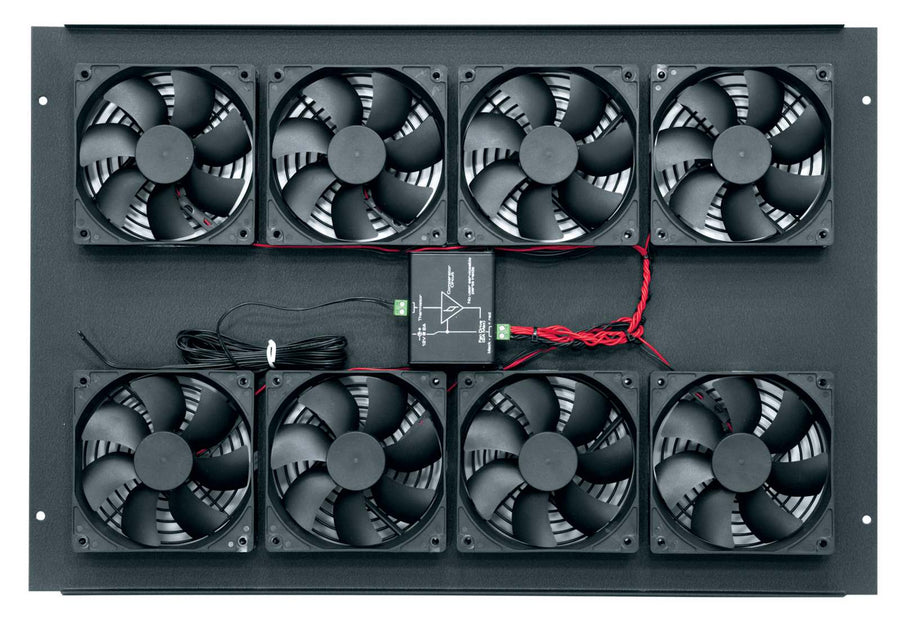

552 CFM Fan Top, with Controller for BGR Series
Active BGR series fan top with 8 mounted fans, 552 CFM airflow, and included controller
The Middle Atlantic BGR-552FT-FC is an active cooling solution designed specifically for use with the BGR series rack. This fan top utilizes 8 mounted 4 in (10.2 cm) fans to provide a total airflow of 552 CFM at a noise level of 38 dBA. To manage thermal loads effectively, the unit includes a dedicated fan controller that features settable control points and an integrated alarm for system monitoring. This component operates on 12 VDC power and accepts 120V AC input. The assembly has a footprint of 22.38 in (56.9 cm) wide by 15.72 in (39.9 cm) high, with a depth of 1.53 in (3.9 cm). This TAA compliant cooling module is an essential accessory for BGR series deployments requiring precise, controlled thermal management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 552 |
| Depth | 1.53 in (3.9 cm) |
| Fan Size | 4 in (10.2 cm) |
| Height | 15.72 in (39.9 cm) |
| Shipping Weight | 9.6 lbs (4.4 kg) |
| Volts DC | 12 VDC |
| Width | 22.38 in (56.9 cm) |
All other specifications 9
| Available Internationally | No |
| Base Series | BGR |
| Component Type | Active |
| Controlled | Yes |
| Fan Controller Included | Yes |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747147814 |
| Warranty | 3 years |
Resources
Questions about this part
Will the BGR-552FT-FC fit my BGR series rack?
This fan top is specifically designed for the Middle Atlantic BGR Series as an active component.
Does this fan top include the necessary controller?
Yes, the BGR-552FT-FC includes a fan controller featuring settable control points and an alarm.
What are the airflow and noise specifications?
This unit moves 552 CFM of air and operates at 38 dBA.
What power requirements are needed for installation?
The unit operates on 12 VDC and requires a 120V AC input.
What documentation is available for submittals?
You can access the BGR Series Fan Tops Instruction Sheet (PDF) or the BGR Series A&E Specification Sheet (PDF) for technical details.
