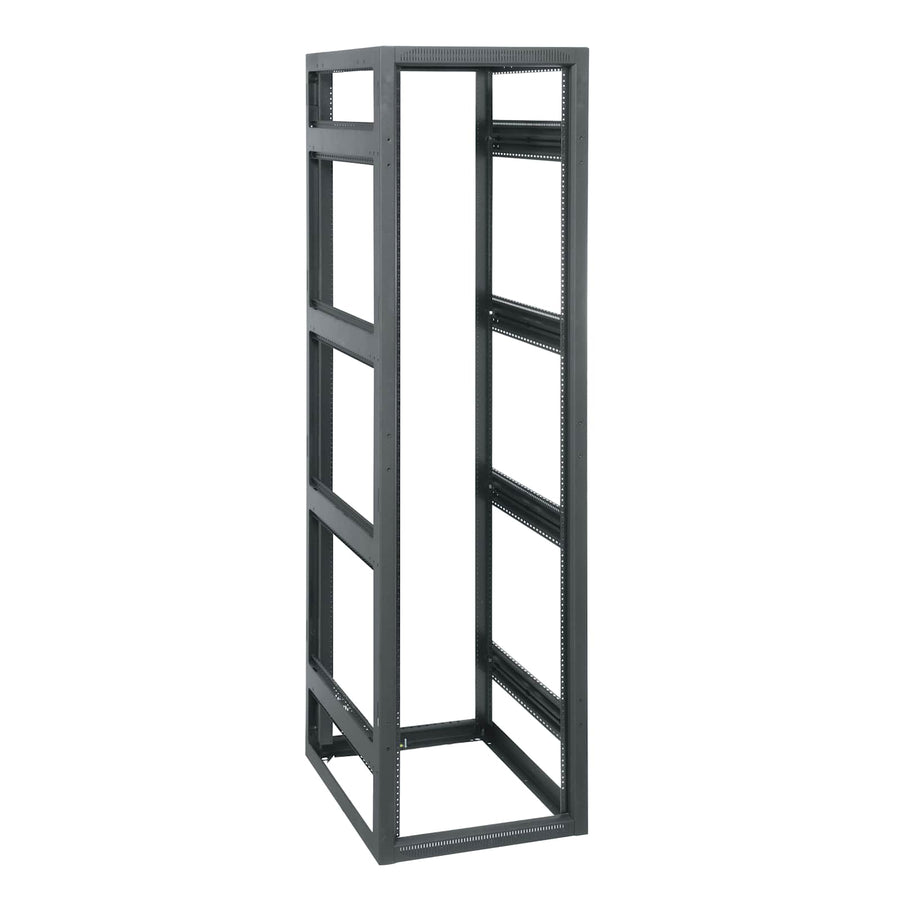

45 RU BGR Series Rack, 32 Inches Deep without Rear Door
45 RU BGR Series Rack, 32 inches deep, 23 inch width, featuring Forward and Lever Lock™ compatibility for rapid installation
The Middle Atlantic BGR-4532LRD is a 45 RU frame-only rack designed for high-performance AV environments. This 32 in (81.3 cm) deep series is the first to be Forward Compatible, allowing for rapid integration with the Lever Lock™ system. The 23 in (58.4 cm) wide chassis provides significant extra space in the side channels for front-to-back cable management and for mounting small devices via Lever Lock™ accessories, maximizing your usable rackspace. This BGR Series rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and features a UL listed load capacity of 3000 lbs (1,360.8 kg). The front and rear adjustable Forward Rackrails are numbered for precision, and the side lacing on the Forward rear rackrail accommodates Vertical Rackmount System products. For specialized deployments, this rack is TAA compliant and HCAI (formerly OSHPD) listed (OPM-0444-13), making it suitable for diverse professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 146 lbs (66.2 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140198 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Caster Base for BGR Series
CBS-BGR$285.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
45 RU Side Panels for 32 Inch Deep BGR Racks
BSPN-45-32$1,040.40
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
44 RU Copper Bus Bars, 1 Inch Wide
BB-44-1$296.10
45 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR45$219.60
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
1 RU Mounting Rackshelf - 12 Piece
UTR1-RP12$615.60
Questions about this part
Will the BGR-4532LRD work with Lever Lock™ accessories?
Yes, this rack is specifically designed to accept the Lever Lock™ system for tool-free installation of cable management and other accessories.
What is the difference between the UL load capacity and seismic load capacity for this rack?
The BGR-4532LRD has a UL listed load capacity of 3000 lbs (1,360.8 kg) and a specific seismic load capacity of 1175 lbs (533 kg).
Can I add side panels and a rear door to this unit?
This specific SKU is a Frame Only configuration with no rear door; however, it is compatible with BSN-45-32 side panels and brush grommet rear door kits.
Is this rack suitable for government or regulated installations?
Yes, it is TAA compliant and carries HCAI (formerly OSHPD) certification (OPM-0444-13).
What do I need to buy to complete the rack installation?
As this is a frame-only unit, you may need to purchase accessories such as the CBS-BGR caster base, BGR Series 552 CFM Fan Top, or various UMS rackshelves.
