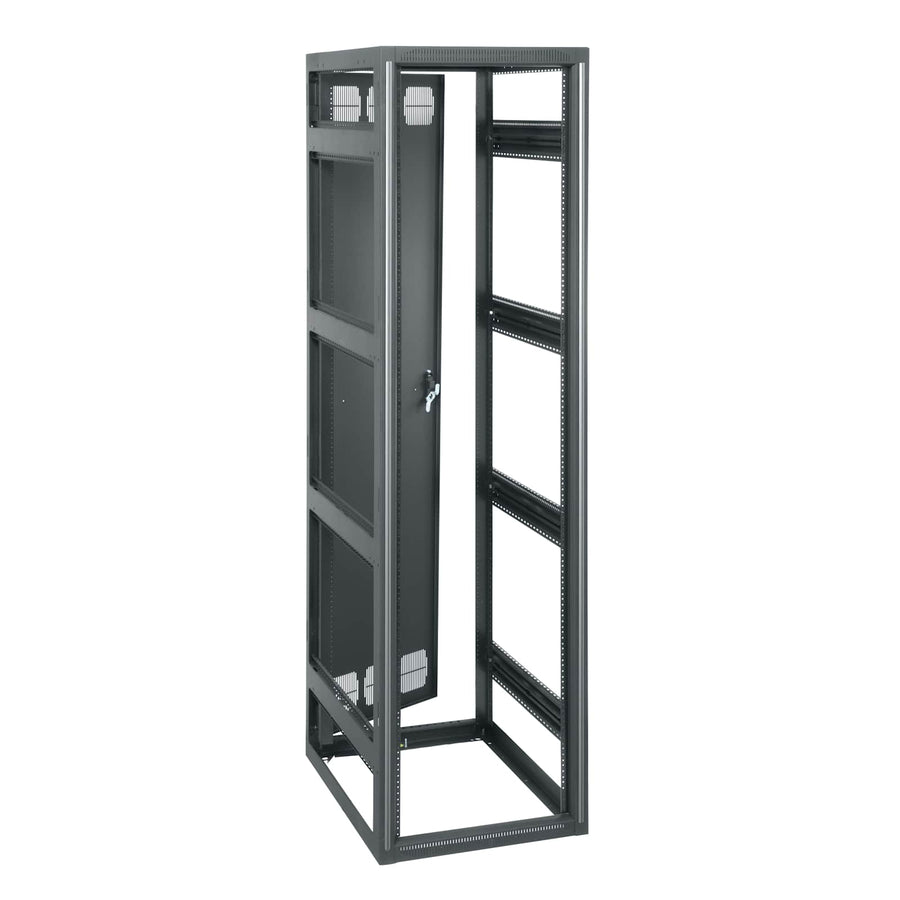

45 RU BGR Series Rack, 32 Inches Deep
45 RU floor-standing rack, 32 in (81.3 cm) depth, 3000 lbs UL load capacity, seismic rated, and TAA compliant
The Middle Atlantic BGR-4532 is a 45 RU floor-standing rack designed for high-performance AV environments. This 32 in (81.3 cm) deep frame offers a 29.4 in (74.7 cm) usable depth and a 23 in (58.4 cm) width, providing extra space for front-to-back cable management and mounting small devices using the Lever Lock™ system. Built with steel and a black wrinkle powder coat finish, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and carries a UL load capacity of 3000 lbs (1,360.8 kg). The design features Forward Rackrail technology, making it Forward and Lever Lock™ compatible for faster, tool-free installations. The configuration includes a standard vented rack rear door and 25mm x 150mm swing handles. This TAA compliant rack is also OSHPD certified (OPM-0444-13) and is gangable to create larger enclosures. It is the ideal solution for integrators requiring high-strength, scalable, and seismic-compliant mounting for large-scale system deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 82.88 in (210.5 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 164 lbs (74.4 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 78.88 in (200.4 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140082 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
44 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-44-OWP$400.50
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
45 RU Side Panels for 32 Inch Deep BGR Racks
BSPN-45-32$1,040.40
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
Will this rack work with my existing Lever Lock accessories?
Yes, the BGR-4532 is Lever Lock™ compatible, allowing you to use tool-free Lever Lock™ cable management accessories for faster installation.
What is the maximum weight this rack can support?
This rack has a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg).
Is the BGR-4532 suitable for seismic-sensitive environments?
Yes, this rack is seismic rated and carries an OSHPD certification (OPM-0444-13).
What accessories are needed to customize the rear door?
You can upgrade the included vented rear door with a brush grommet rear door kit to allow for larger cable passages without fishing.
Can I add casters to this rack?
Yes, the BGR-4532 is compatible with the CBS-BGR Caster Base for improved mobility.
