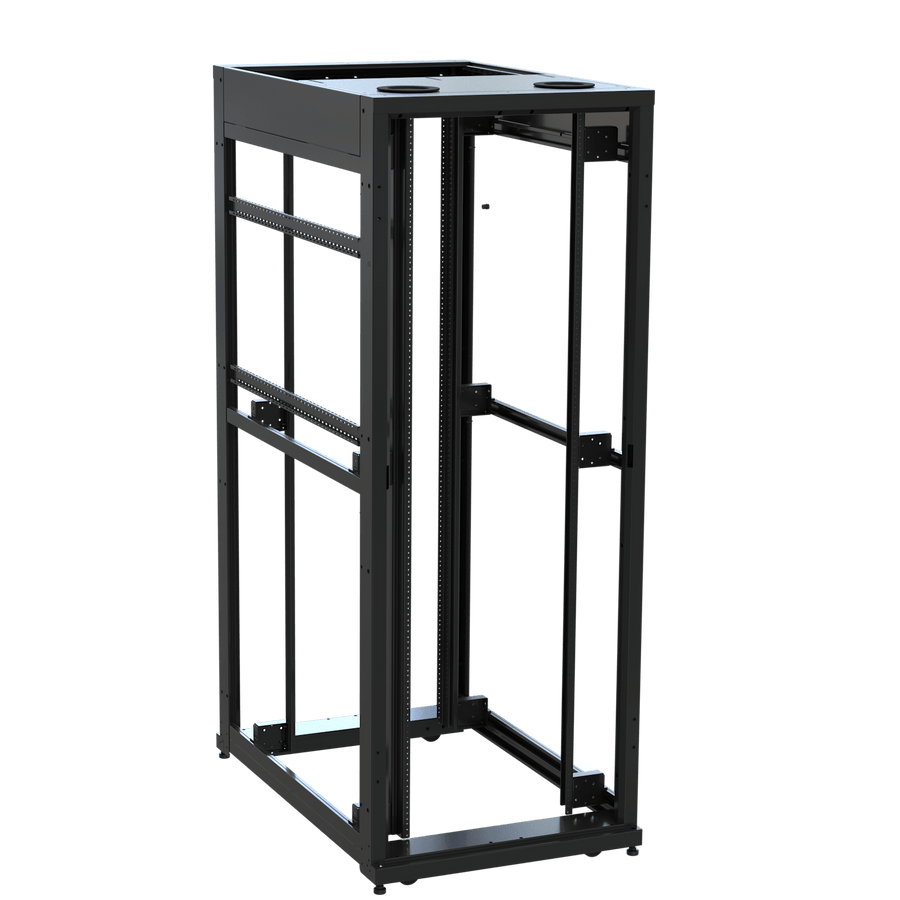

42 RU SNE Series Rack Frame, 48 Inches Deep, 30 Inches Wide with 10-32 Rackrail
42 RU floor standing rack frame, 48 in depth, 30 in width, 3000 lbs UL load capacity, seismic rated
The Middle Atlantic SNE30F-4248 is a 42 RU SNE Series rack frame designed to meet the rigorous requirements of IP networking, analog, digital, and hybrid systems. This floor-standing system features a usable height of 73.5 in (186.7 cm) and a usable depth of 44.48 in (113 cm) within its 79.65 in (202.3 cm) total height. Built with a 30.04 in (76.3 cm) width, this frame supports a UL load capacity of 3000 lbs (1,360.8 kg). This TAA compliant and seismic rated frame includes two pairs of 10-32 threaded rackrails and comes with both 4 leveling feet and 4 casters for installation flexibility. The unit features a black texture powder coat finish and is gangable for multi-rack configurations. This specific SKU is part of a series being discontinued on December 1, 2026, with the DRK19-44-42 recommended as its replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 245 lbs (111.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 44.48 in (113 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747232275 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
What is the recommended replacement for the SNE30F-4248?
Middle Atlantic recommends the DRK19-44-42 as the replacement for this SNE Series frame.
Can this rack frame be used in seismic zones?
Yes, this frame is seismic rated and includes a seismic and standard riser base for raised-floor readiness.
What is the maximum weight capacity of the SNE30F-4248?
The frame has a UL listed load capacity of 3000 lbs (1,360.8 kg).
Does this rack include mounting rails?
This frame includes two pairs of 10-32 threaded rackrails for equipment installation.
What is the usable depth for equipment installation?
The usable depth for this 48 in (121.9 cm) frame is 44.48 in (113 cm).
