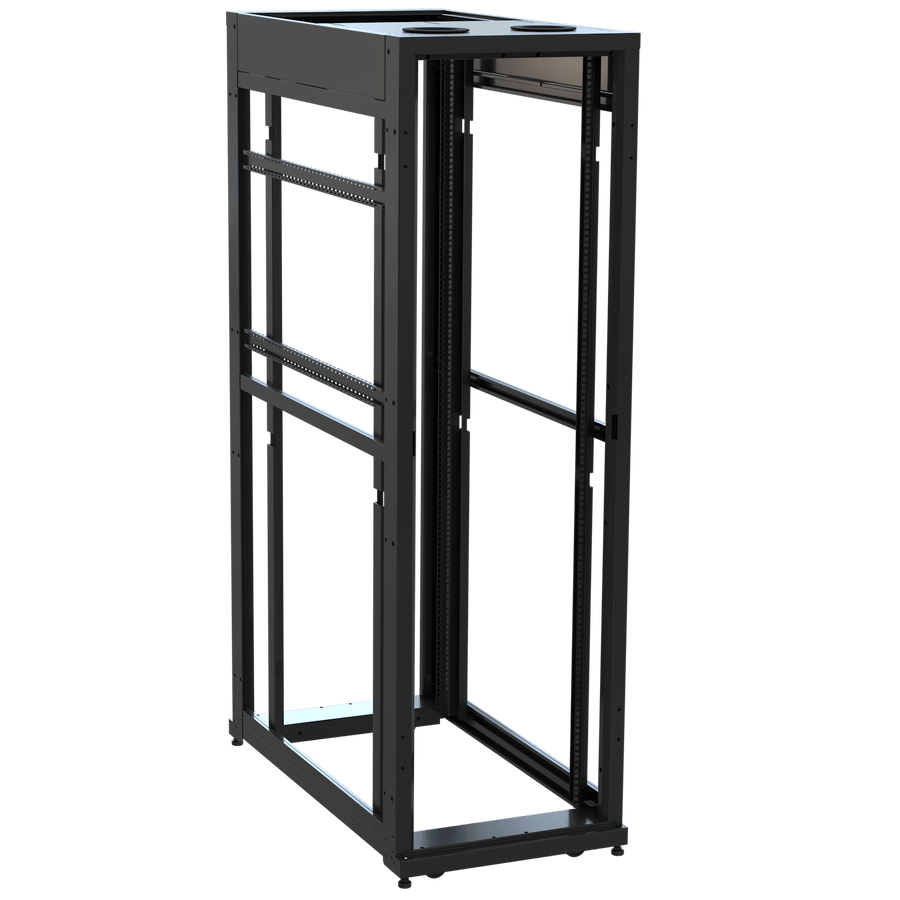

42 RU SNE Series Rack Frame, 48 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
42 RU floor-standing rack frame, 48 in deep, 24.04 in wide, seismic rated with cage nut rackrails
The SNE24F-CN-4248 is a 42 RU floor-standing rack frame from the Middle Atlantic SNE Series, engineered specifically for high-security network and hybrid system environments. This frame provides a massive 3000 lbs (1,360.8 kg) UL load capacity, making it suitable for heavy equipment deployments. It features a 48 in (121.9 cm) depth with a usable depth of 44.48 in (113 cm) and a total height of 79.65 in (202.3 cm). The 24.04 in (61.1 cm) width is designed for versatile integration, and this frame is seismic rated for enhanced protection. This specific SKU is a frame-only system that includes two pairs of cage nut rackrails and 4 leveling feet and 4 casters for installation flexibility. This model is TAA compliant and manufactured in the USA. Note that this product is scheduled for discontinuation on December 1, 2026; the recommended replacement is the WMRK-4248.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 48 in (121.9 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 217 lbs (98.4 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 44.48 in (113 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238307 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
What is the recommended replacement for the SNE24F-CN-4248?
Middle Atlantic recommends the WMRK-4248 as the replacement for this SNE Series frame, which is slated for discontinuation on December 1, 2026.
Is this rack frame suitable for seismic or high-security locations?
Yes, this frame is seismic rated and UL listed, making it purpose-built for the requirements of IP, analog, digital, and hybrid security systems.
What is the difference between the usable depth and the total depth?
While the total depth is 48 in (121.9 cm), the usable depth for equipment mounting is 44.48 in (113 cm).
What accessories are compatible with this SNE Series frame?
This frame is compatible with various accessories, including Select Series PDUs like the RLNK-215 and Select Series UPS systems like the UPS-SRBP-500.
Does this rack include the tools required for installation?
This SKU is a frame-only system that includes four leveling feet and four casters; it does not include mounting hardware or specialized tools.
