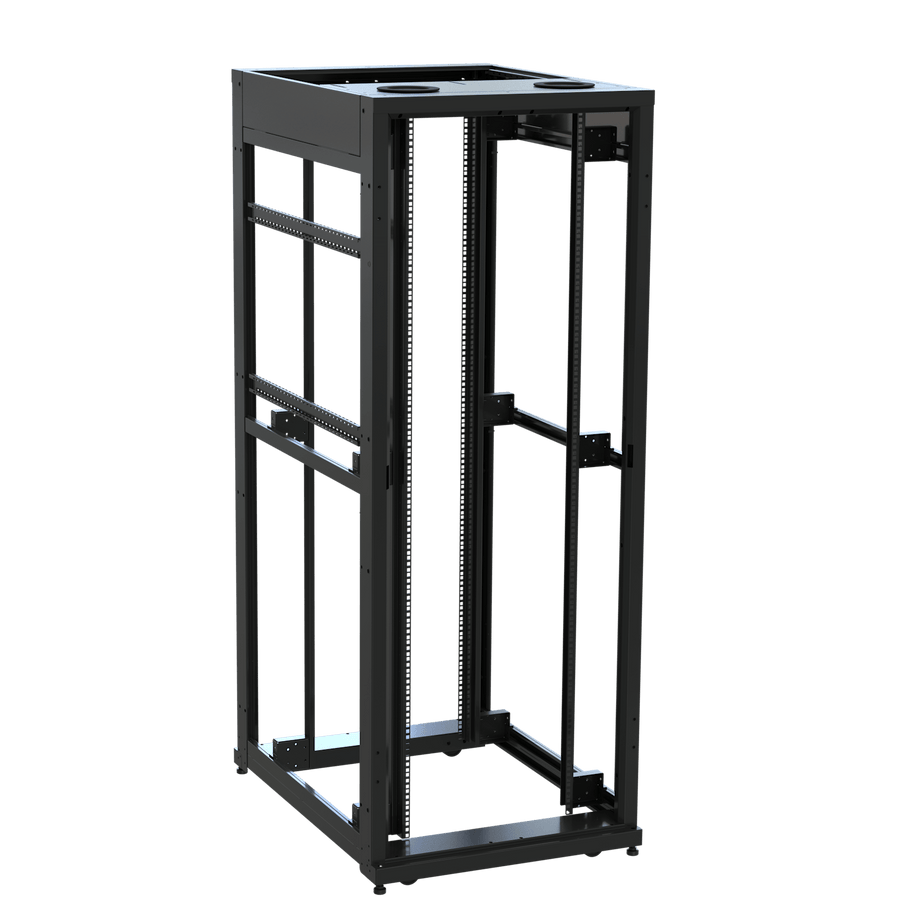

42 RU SNE Series Rack Frame, 42 Inches Deep, 30 Inches Wide with Cage Nut Rackrail
42 RU floor-standing rack frame, 30.04" wide, 42" deep, seismic rated and UL listed
The SNE30F-CN-4242 is a 42 RU SNE Series Rack Frame designed for high-security and complex network environments. This floor-standing frame provides a robust foundation for IP, analog, digital, or hybrid systems. It features a 30.04" width and a 42" depth, offering a usable depth of 38.48" and a usable height of 73.5". This frame is built for heavy-duty deployments with a UL load capacity of 3000 lbs (1,360.8 kg). The unit includes two pairs of cage nut rackrails for versatile component mounting and features a black texture powder coat finish. For installation versatility, the frame includes four leveling feet and four casters. This TAA compliant, seismic-rated frame is also gangable, allowing for side-by-side expansion in large-scale deployments. Note that this product is scheduled for discontinuation on December 1, 2026; the manufacturer recommends the DRK19-44-42 as a replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 222 lbs (100.7 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 30.04 in (76.3 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238505 |
| Certifications | TAAUL Listed |
