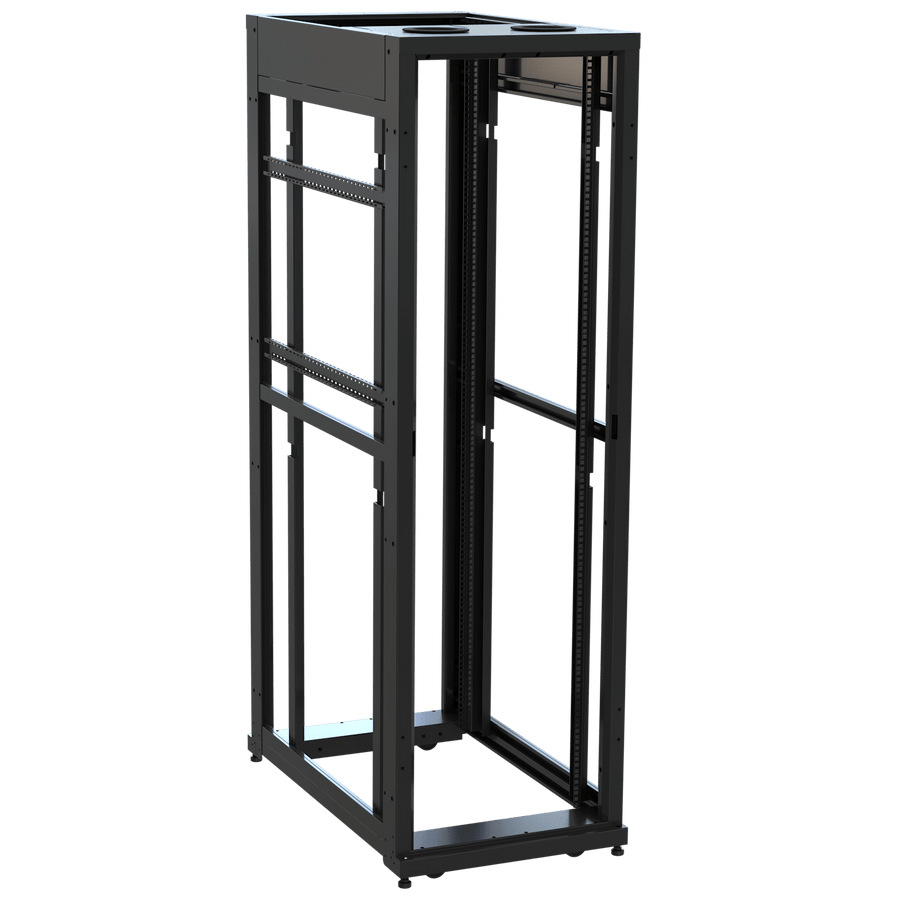

42 RU SNE Series Rack Frame, 42 Inches Deep, 24 Inches Wide with Cage Nut Rackrail
42 RU floor-standing SNE series frame, 42 inches deep, 24 inches wide, seismic rated and TAA compliant
The SNE24F-CN-4242 is a 42 RU floor-standing rack frame from the Middle Atlantic SNE Series, designed for complex security and network environments. This purpose-built frame is engineered to support IP, analog, digital, and hybrid systems, providing a robust foundation for high-density equipment. It features a 24.04 in (61.1 cm) width and a 42 in (106.7 cm) depth, offering 38.48 in (97.7 cm) of usable depth and 73.5 in (186.7 cm) of usable height. This frame is seismic rated and UL listed, making it suitable for mission-critical installations. The system is TAA compliant and includes two pairs of cage nut rackrails for flexible mounting. For advanced mounting, the frame is compatible with the Lever Lock™ system to secure small devices in unused vertical spaces. This frame is gangable, allowing for larger multi-rack configurations, and is raised-floor ready when paired with the appropriate seismic or standard riser bases. Please note this series is scheduled for discontinuation on December 1, 2026, with the WMRK-4242 recommended as the replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 79.65 in (202.3 cm) |
| Rack Units | 42 RU |
| Shipping Weight | 208 lbs (94.4 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 73.5 in (186.7 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | Cage Nut |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747238260 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
What is the recommended replacement for the SNE24F-CN-4242?
The manufacturer recommends the WMRK-4242 as the replacement for this SNE Series frame.
Is the SNE24F-CN-4242 suitable for seismic-sensitive environments?
Yes, this rack frame is seismic rated and UL listed for high-performance security and network installations.
What mounting hardware is included with this frame?
This frame includes two pairs of cage nut rackrails and is compatible with the Lever Lock™ system for mounting small devices in unused spaces.
Can this rack be mounted on a raised floor?
Yes, the frame is raised-floor ready when used with seismic or standard riser bases.
What accessories are compatible with the SNE Series?
Compatible accessories include various power solutions like the PDX-920R, shelving systems like the WUSS20-5, and vent panels like the VTP-3.
