41 RU BGR Series Rack, 32 Inches Deep without Rear Door
41 RU floor-standing BGR Series rack, 32" depth, seismic rated, with Forward Rackrail and TAA compliance

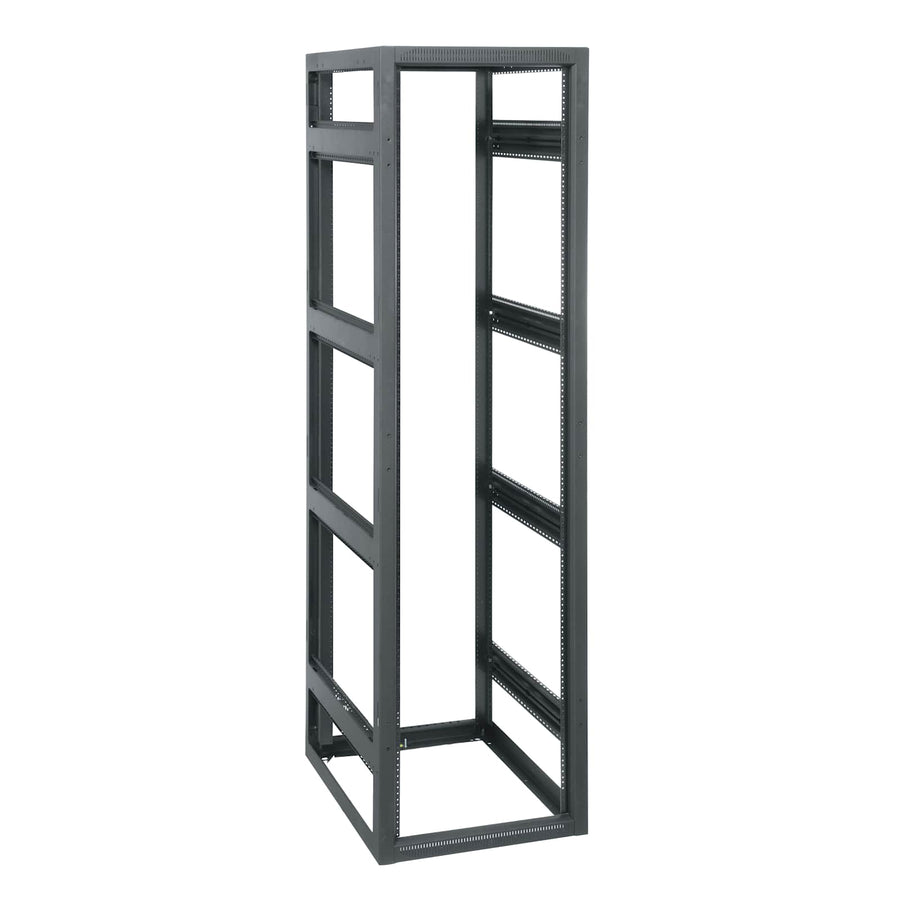

The Middle Atlantic BGR-4132LRD is a 41 RU floor-standing rack designed for high-performance AV environments requiring maximum mounting flexibility and structural integrity. This 32" (81.3 cm) deep frame is engineered with Forward Rackrail technology, making it compatible with both Forward and Lever Lock™ accessories to accelerate installation speed. The chassis is constructed from steel with a black wrinkle powder coat finish and features 25mm x 150mm swing handles. This model is provided as a frame only and does not include a rear door. For seismic applications, it offers a seismic load capacity of 1175 lbs (533 kg) and carries UL, ASCE, and HCAI (formerly OSHPD) certifications (OSHPD Number: OPM-0444-13). The 23" wide footprint provides an additional side channel for front-to-back cable management or mounting small devices via Lever Lock™. This TAA-compliant rack is also gangable, allowing multiple units to be joined for expanded capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 142 lbs (64.4 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140228 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
1 RU Fan Tray, 6 Fans, 414 CFM
FTA-6$701.10
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80
Vented Top BGR Series
BGR-LVT9$87.30
9 RU Top Panel BGR Series
BGR-STP9$73.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
Will the BGR-4132LRD fit my seismic requirements?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and holds HCAI (formerly OSHPD) certification.
What is the difference between the BGR-4132LRD and the BGR series with a door?
The BGR-4132LRD is a frame-only configuration that does not include a rear door, allowing for easier access to rear cabling.
What accessories are compatible with the BGR series rack rails?
The Forward Rackrail design accepts Lever Lock™ tool-free cable management accessories and is Forward Compatible.
Does the BGR-4132LRD include mounting rails and handles?
The unit includes standard front and rear adjustable Forward Rackrails with numbered spaces and 25mm x 150mm swing handles.
Can I add wheels or casters to this rack?
Yes, the BGR Series accepts the CBS-BGR Caster Base for improved mobility.
