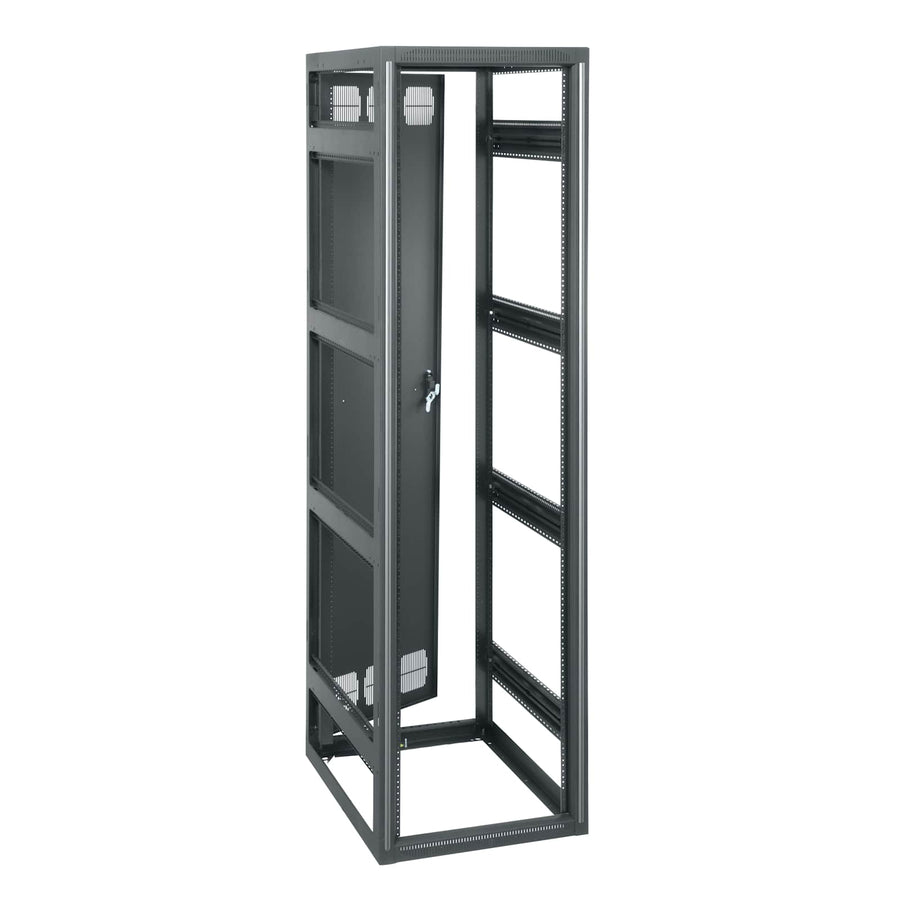

41 RU BGR Series Rack, 32 Inches Deep
41 RU floor-standing AV rack with 32 in (81.3 cm) depth, featuring Forward Rackrail and seismic rating
The Middle Atlantic BGR-4132 is a 41 RU floor-standing rack designed for high-performance AV environments requiring rapid deployment and maximum mounting flexibility. This 32 in (81.3 cm) deep frame is the first to be Forward Compatible, supporting the Lever Lock™ system for tool-free installation of cable management accessories. The 23 in (58.4 cm) total width provides significant extra space in the side channels for front-to-back cable management or mounting small devices via the Lever Lock™ system. The rack features standard front and rear adjustable Forward Rackrails with numbered spaces to facilitate precise equipment placement. For thermal management, it includes a standard vented rack rear door that accepts optional fans, such as the BGR-552FT-FC, and is compatible with brush grommet rear door kits. This steel frame is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and an UL Load Capacity of 3000 lbs (1,360.8 kg). It is TAA compliant and gangable for large-scale deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 159 lbs (72.1 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140112 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00

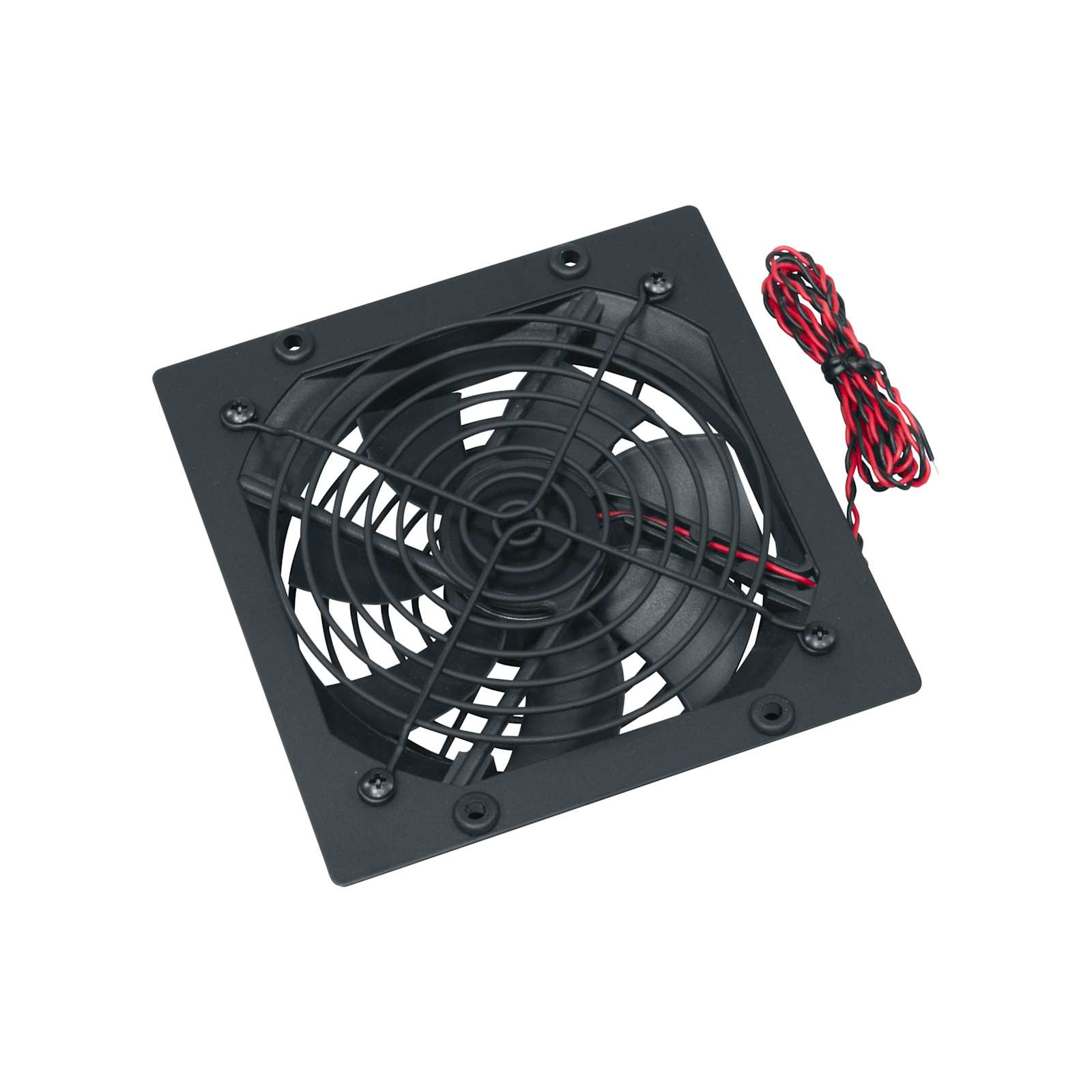

FTA Series 4 Inch DC Fan
FT-FAN$90.00

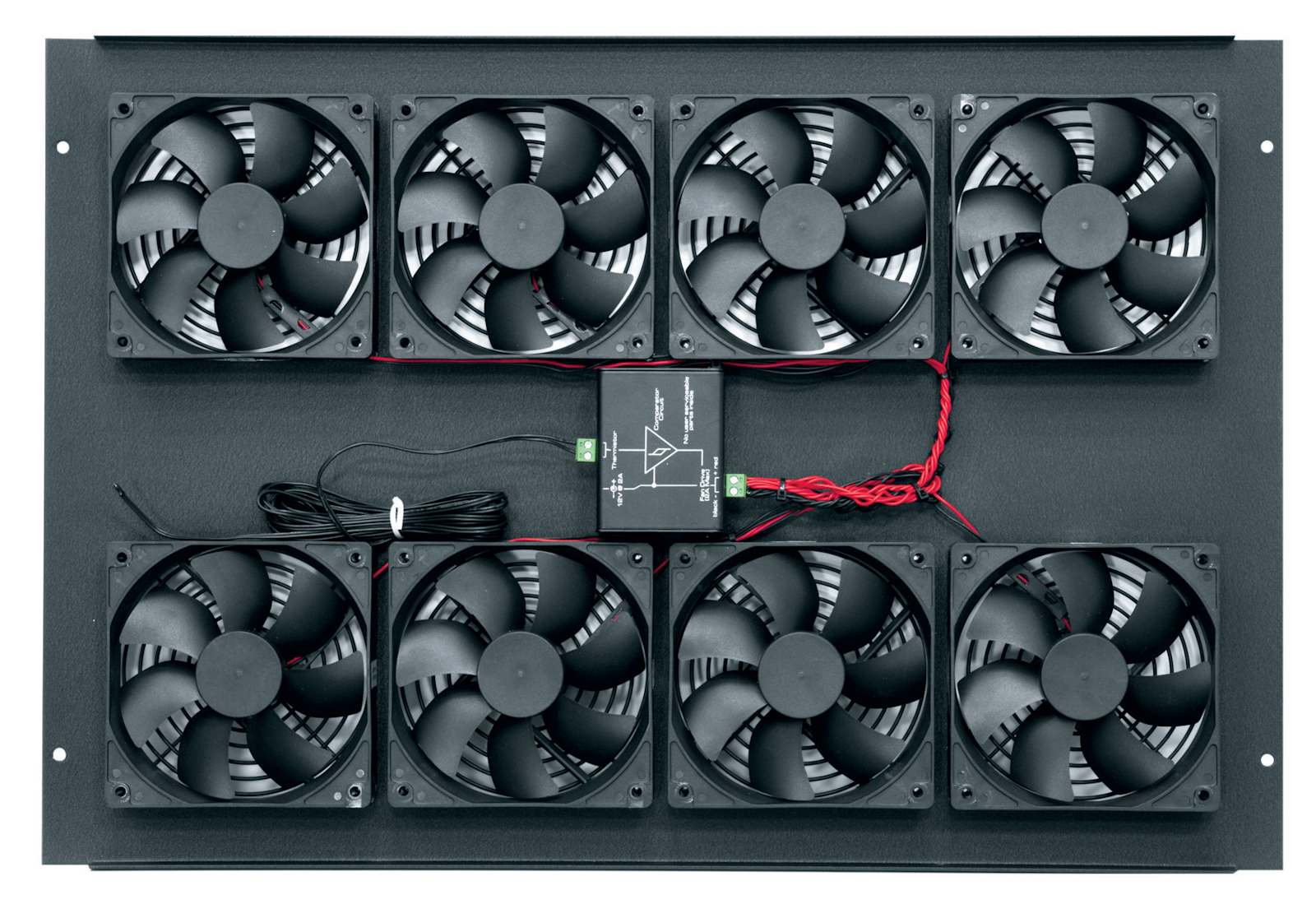

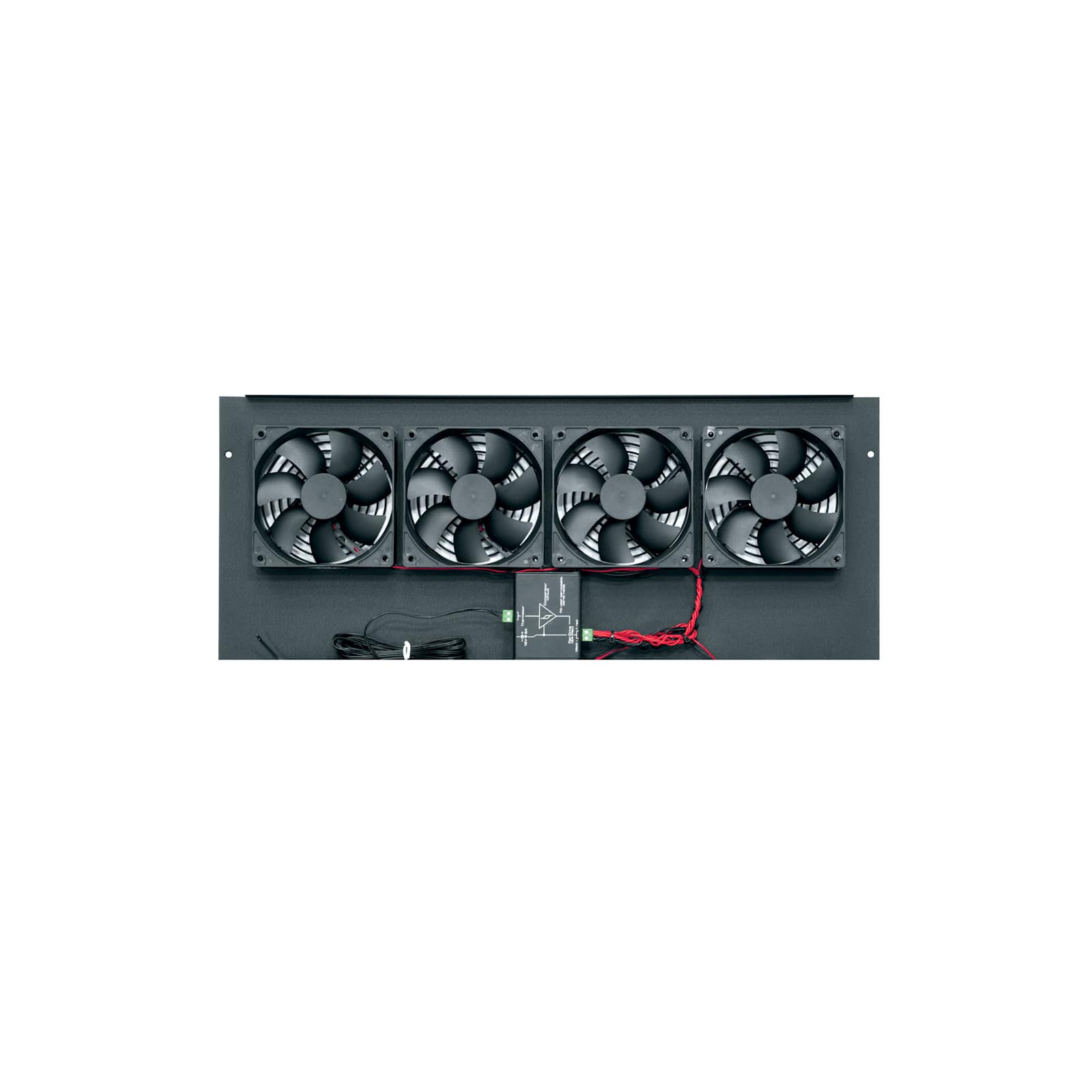

552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
276 CFM Fan Top, with Controller for BGR Series
BGR-276FT-FC$801.00
552 CFM Fan Top, for BGR Series
BGR-552FT$656.10
Single LED Work Light
LT-CABUTL-SINGLE$261.00

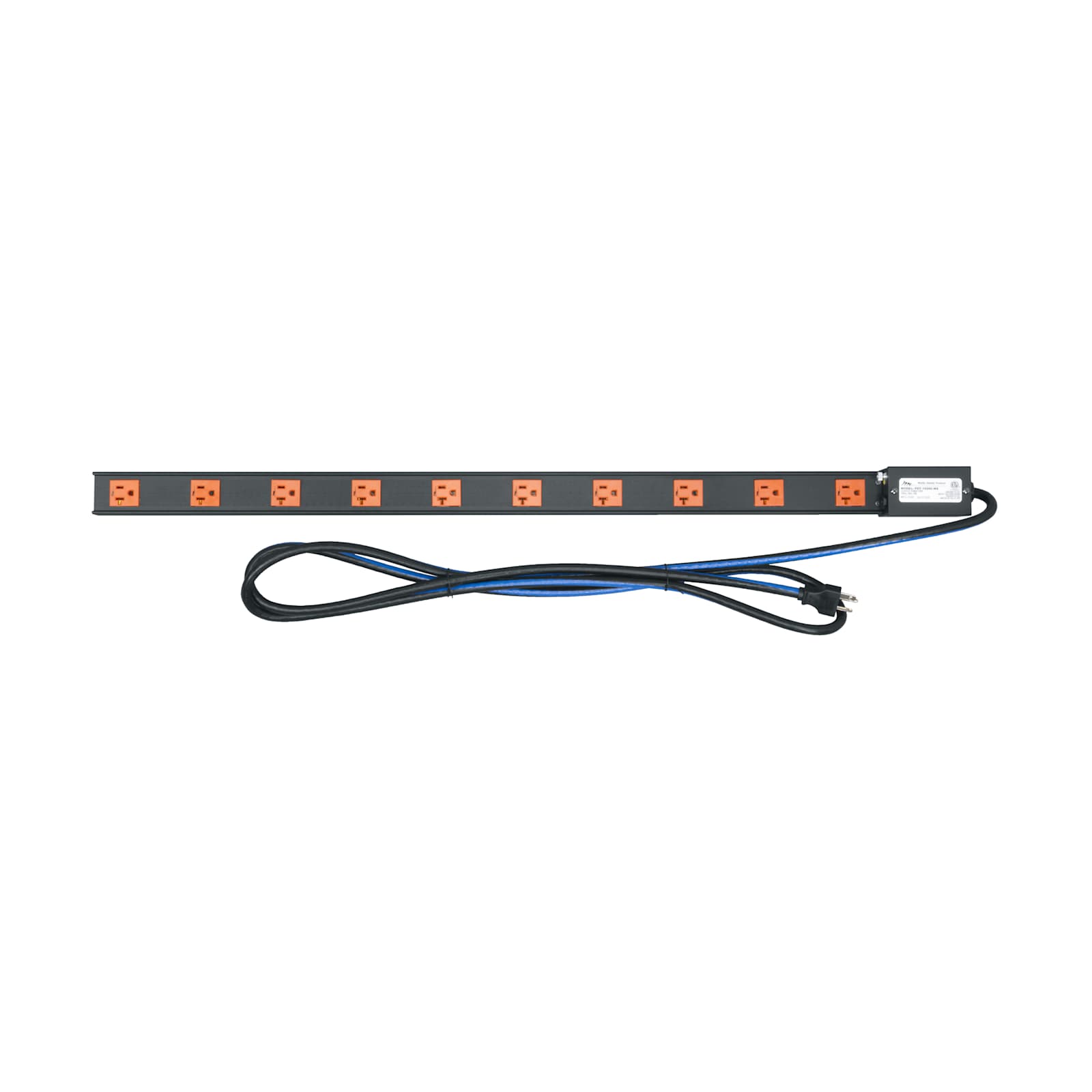

PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90

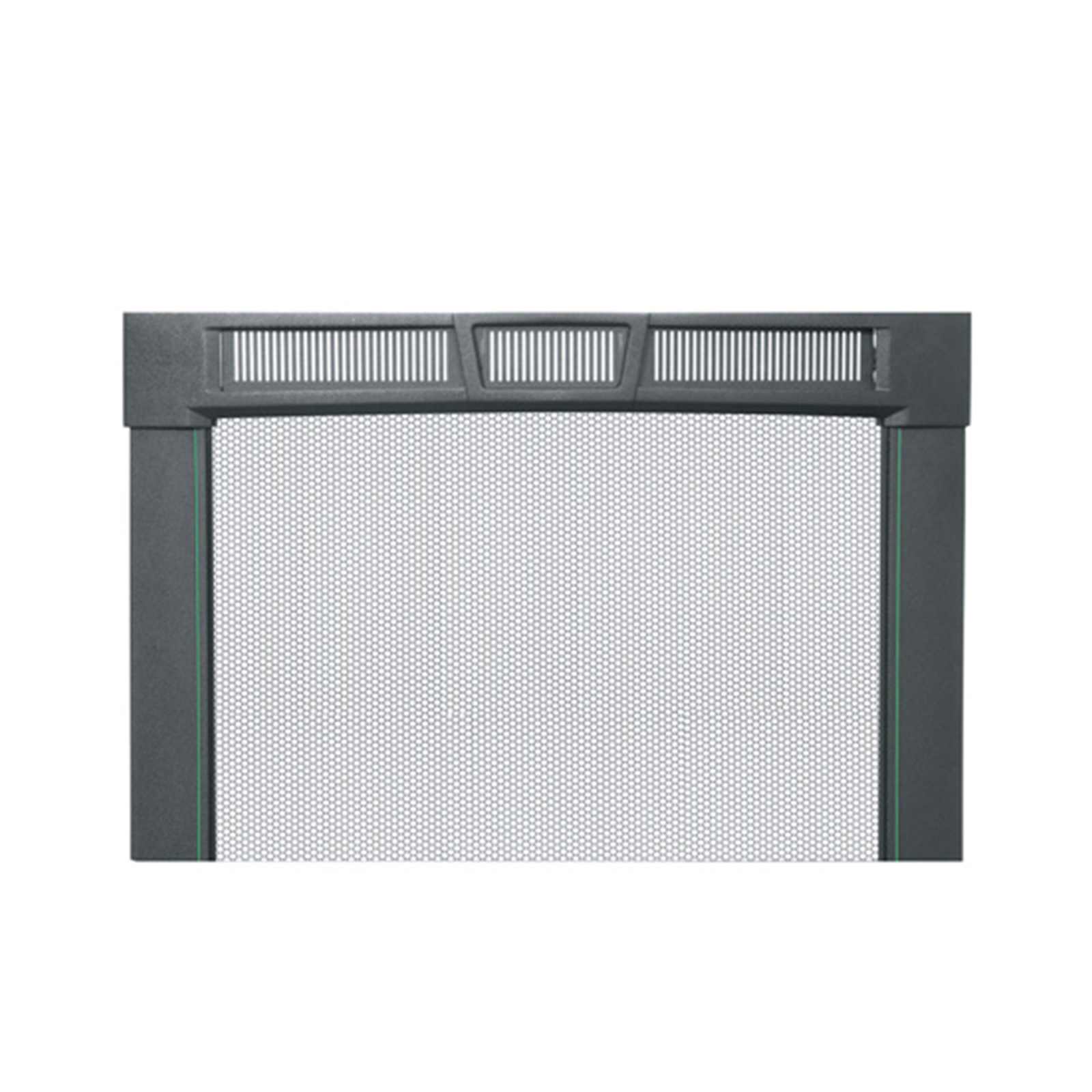

41 RU Vented Front Door, Curved
VFD-41A$760.50
Questions about this part
Will this BGR-4132 rack fit my equipment depth requirements?
The BGR-4132 has a 32 in (81.3 cm) total depth and provides 29.4 in (74.7 cm) of usable depth to accommodate deep AV components.
What accessories are needed to complete this rack configuration?
This is a Frame Only configuration. You may need to add items such as the CBS-BGR caster base, BGR series fan tops (like the BGR-552FT), or vertical PDUs such as the PD-2420SC-NS.
Is this rack suitable for seismic-rated installations?
Yes, this rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and meets ASCE and HCAI (OSHPD) standards.
How does the BGR series handle cable management?
The design utilizes Forward Rackrails with side lacing for internal cabling and is compatible with the Lever Lock™ system for tool-free, rapid accessory mounting.
Does this rack support thermal management upgrades?
The included standard vented rear door is designed to accept optional fans, such as the BGR-552FT, to improve airflow within the 41 RU enclosure.
