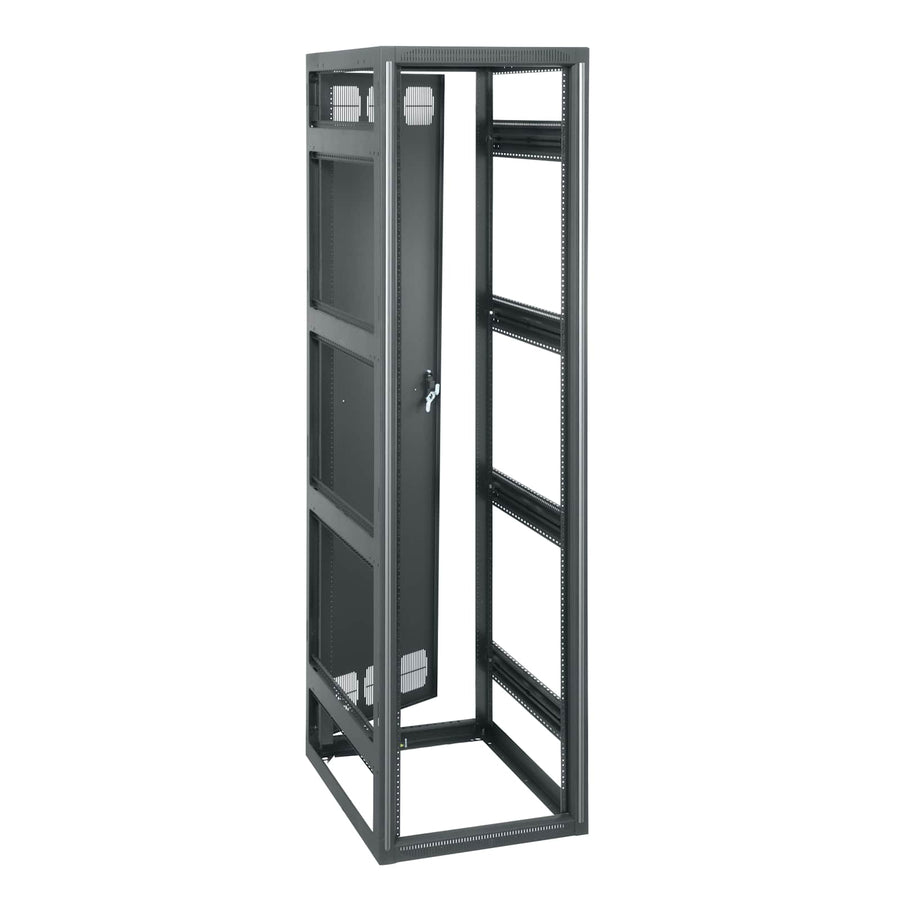

41 RU BGR Series Rack, 27 Inches Deep
41 RU floor standing BGR Series rack, 27 inches deep, seismic rated and TAA compliant
The Middle Atlantic BGR-4127 is a high-capacity 41 RU floor standing rack designed for professional AV installations. This 27 in (68.6 cm) deep frame features a 19 in (48.3 cm) panel width and a 23 in (58.4 cm) total width, providing an extra side space for efficient front-to-back cable management. As a Forward Compatible rack, it supports the Lever Lock™ system, allowing for tool-free installation of cable management accessories. The steel construction includes standard front and rear adjustable Forward Rackrails with numbered spaces for precise mounting. For thermal management, it includes a standard vented rack rear door that accepts optional fans or a brush grommet rear door kit. This BGR Series rack is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and carries a UL load capacity of 3000 lbs (1,360.8 kg). It is TAA compliant and listed with HCAI (formerly OSHPD) under number OPM-0444-13. This frame-only configuration is gangable and features 25mm x 150mm swing handles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 150 lbs (68 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140129 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Caster Base for BGR Series
CBS-BGR$285.30
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
1 RU Fan Tray, 6 Fans, 414 CFM & 220 - 240VAC
IFTA-6$762.30
Vented Top BGR Series
BGR-LVT9$87.30
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
276 CFM BGR Series Fan Top for the European Union
BGR-276FT-K-EU$630.90

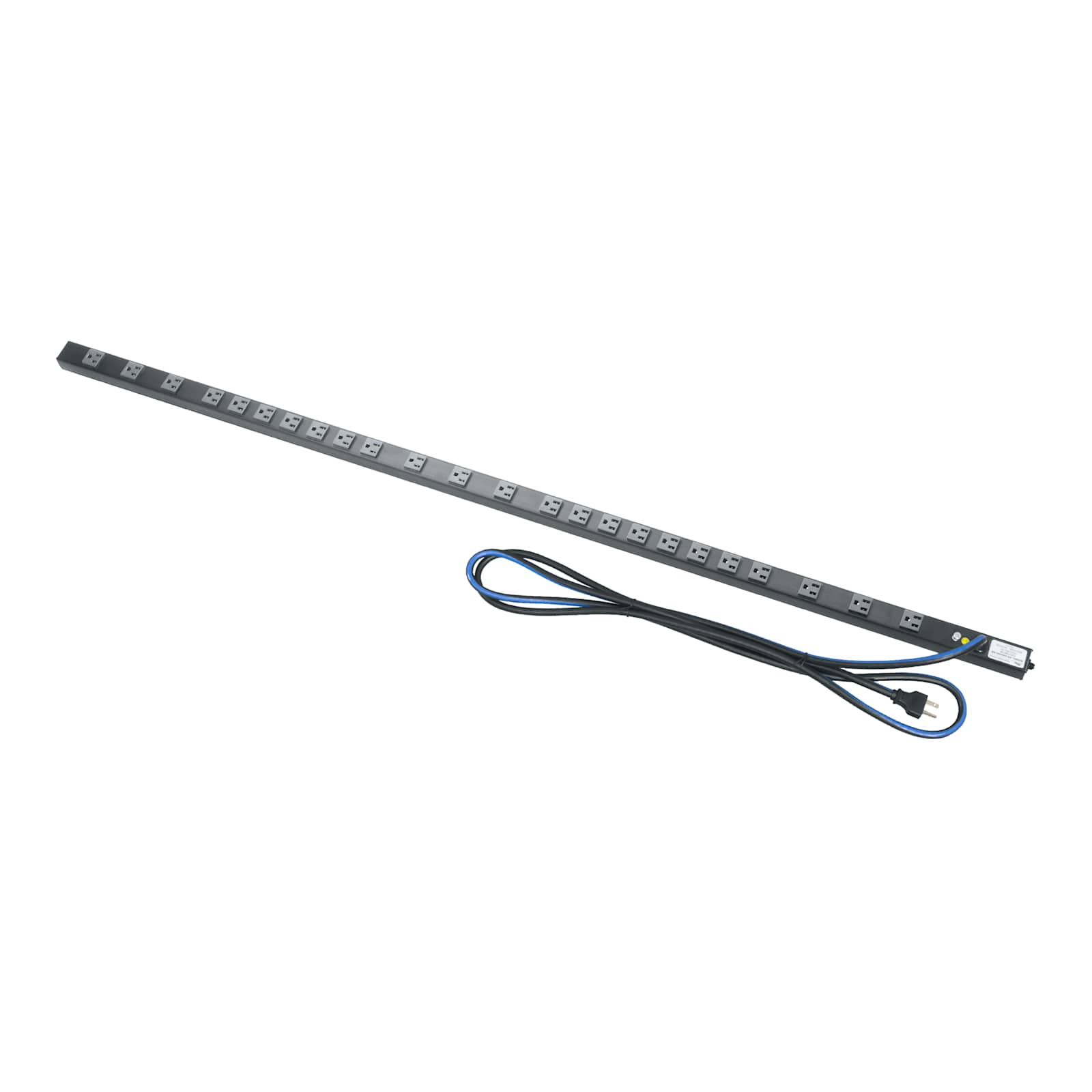

PD Slim High Density Vertical Power Strip, 24 Outlet, 15A
PD-2415SC-NS$286.20
41 RU 64% Vented Front Door for BGR Racks
BVFD-41$603.00
41 RU Forward Rackrail For BGR Series Enclosures
FWD-BGR-RR41$204.30
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
Will the BGR-4127 fit my equipment depth?
With a 27 in (68.6 cm) total depth and 24.4 in (62 cm) usable depth, this rack accommodates most standard AV components. For specific cable clearance, note the 23 in (58.4 cm) total width provides extra room for side cable management.
What accessories are needed for cable management with this rack?
This rack is Lever Lock™ compatible, allowing you to use tool-free accessories. You can also utilize the Forward vertical cable management products via the side lacing on the Forward rear rackrail.
Is the BGR-4127 rated for seismic environments?
Yes, this rack is seismic rated. It has a seismic load capacity of 1175 lbs (533 kg) and is UL listed with a 3000 lbs (1,360.8 kg) load capacity.
What is required for a submittal for this BGR series rack?
For technical submittals, you can use the BGR Series CAD Technical Specification Drawings (.dwg) or the BGR Series 3 Part Specification docx available in the resources tab.
Can I add cooling to this rack?
Yes, the standard vented rear door is designed to accept optional fans, such as the BGR-552FT-FC 552 CFM Fan Top, to manage airflow within the enclosure.
