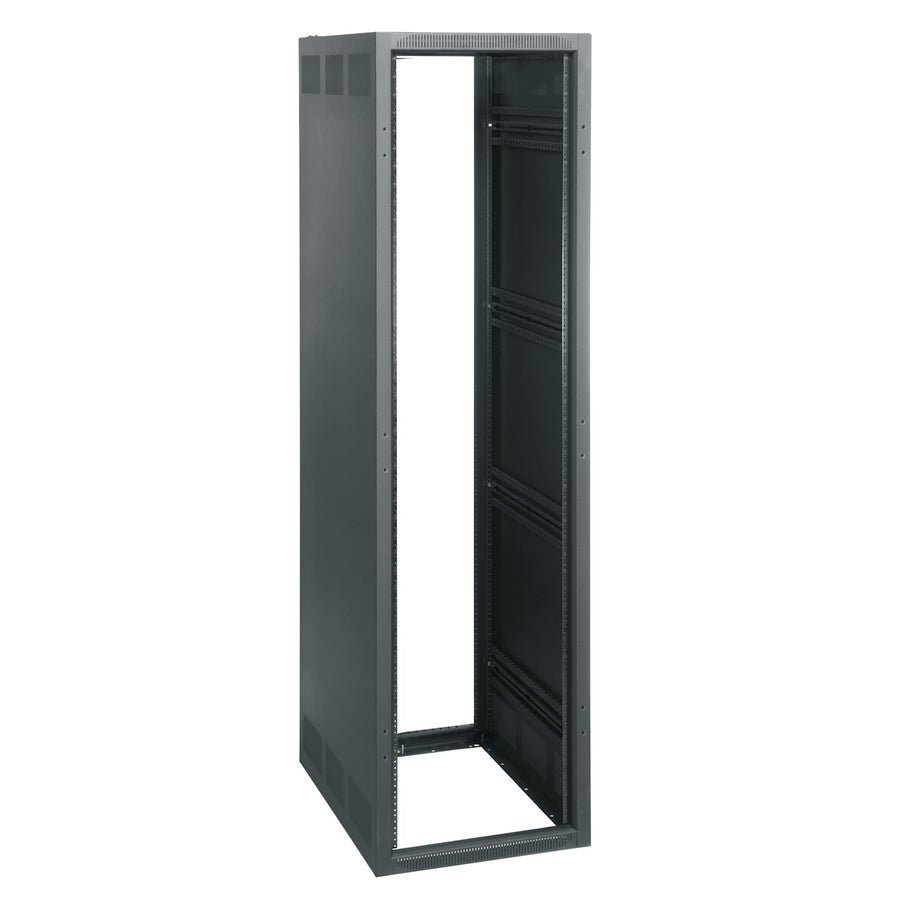

41 RU BGR-SA Series Rack, 32 Inches Deep, without Rear Door
41 RU floor-standing AV rack, 32-inch depth, with a 3000 lbs UL load capacity and seismic rating
The Middle Atlantic BGR-41SA-32LRD is a high-capacity, 41 RU standalone AV rack designed for professional system integration. This frame-only configuration features a 32-inch (81.3 cm) depth and a usable depth of 29.4 inches (74.7 cm). Built with a robust steel construction and a black wrinkle powder coat finish, it is designed for high-performance environments requiring significant strength, offering a UL load capacity of 3000 lbs (1,360.8 kg). This model is Forward Compatible and supports the Lever Lock™ tool-free accessory system, which significantly accelerates installation times. The 23-inch width provides extra lateral space for front-to-back cable management or the mounting of small devices using Lever Lock™ accessories. For secure and organized deployments, the rack features solid sides to control airflow and can be gangable to create larger enclosures. It is TAA compliant and includes seismic rating with a seismic load capacity of 1175 lbs (533 kg), making it suitable for various structural requirements, including HCAI (formerly OSHPD) and ASCE standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 161 lbs (73 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140006 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
PD Slim High Density Vertical Power Strip, 24 Outlet, 15A
PD-2415SC-NS$286.20
41 RU 64% Vented Front Door for BGR Racks
BVFD-41$603.00
Cable Chase Top Section, 32 Inches Deep for BGR Racks
BGR-CC-32LT$72.90
1 RU Plastic Cable Manager, 4 Inches Deep
PHCM-1-4$54.90
LBP Adjustable Horizontal Lace
LBP-ADJ-A-2PK$158.40

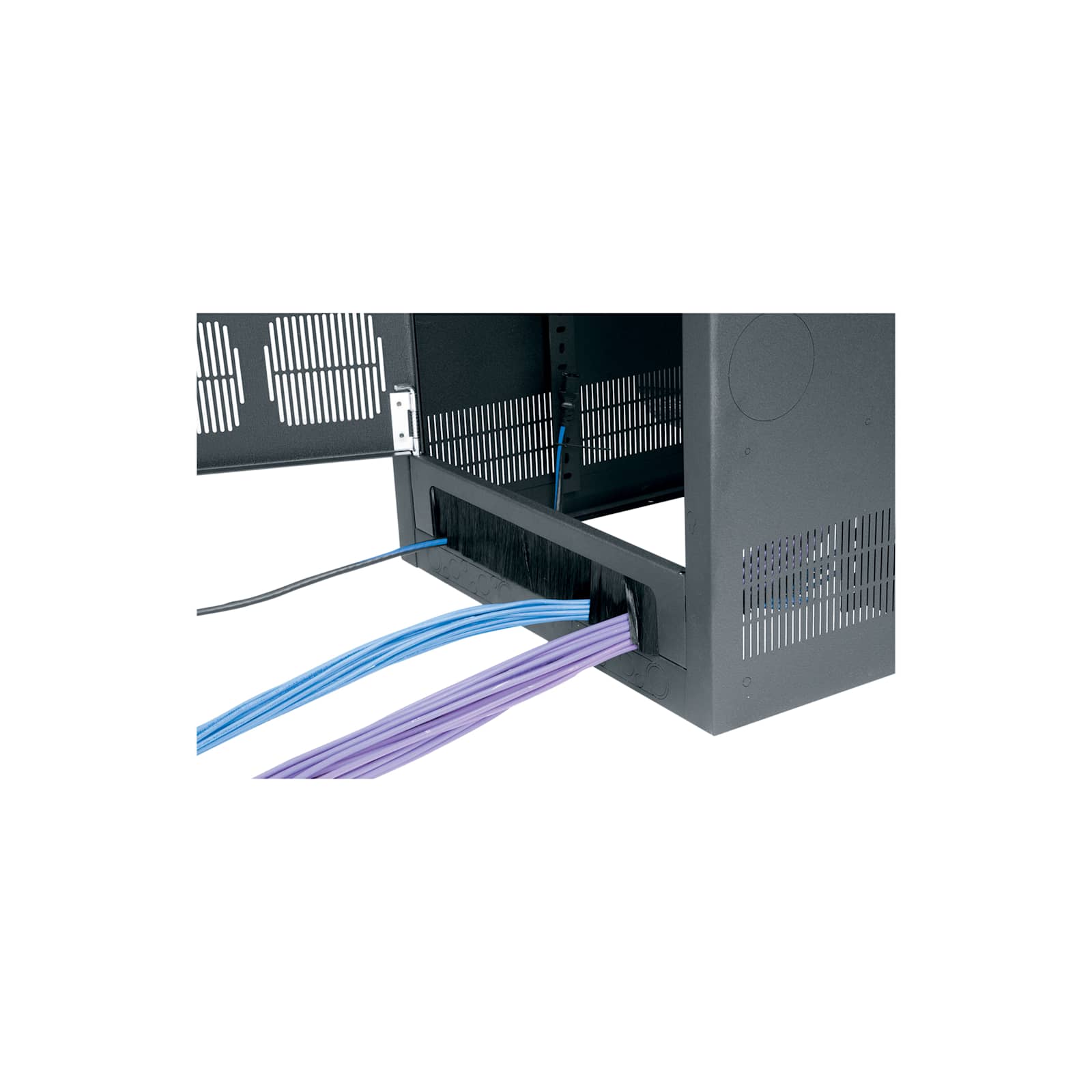

41 RU Cable-Entry Rear Door for BGR Racks
BGR-RDC41$362.70
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System, Bank Outlet Control
UPX-2000R-2$3,079.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
Will this BGR-41SA-32LRD fit my equipment depth?
The unit has a 32-inch (81.3 cm) total depth and provides a usable depth of 29.4 inches (74.7 cm) for mounting equipment.
Is this rack suitable for seismic-rated installations?
Yes, this is a seismic-rated rack with a seismic load capacity of 1175 lbs (533 kg) and carries ASCE and HCAI (formerly OSHPD) certifications.
What accessories are needed for cable management?
This rack is compatible with the Lever Lock™ system for tool-free management and accepts the BGR-RDC41 cable-entry rear door kit for large cable passage.
Does this BGR-41SA-32LRD include doors?
This specific SKU is a frame-only configuration without a rear door; however, it is compatible with the BVFD-41 64% Vented Front Door.
Can I connect multiple racks together?
Yes, the sides feature ganging holes that allow you to join multiple BGR-SA series racks together for larger system enclosures.
