41 RU Cable-Entry Rear Door for BGR Racks
41 RU rear door for BGR Series racks, featuring seismic rating and venting for optional cooling fans

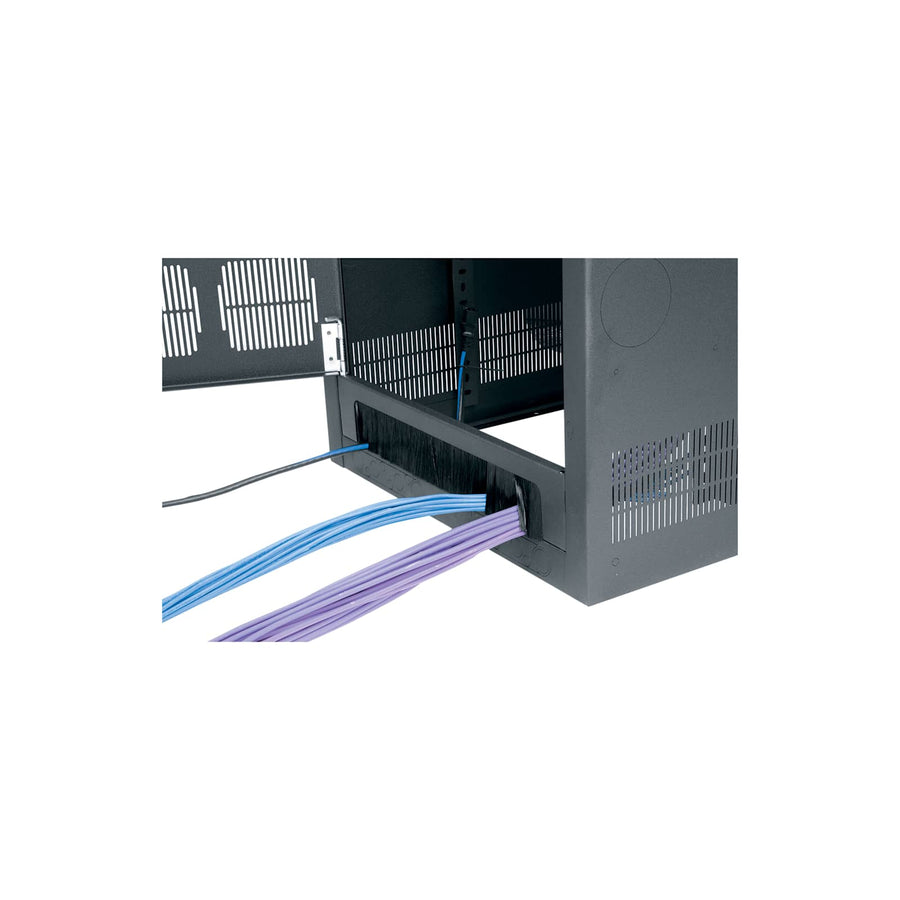

The BGR-RDC41 is a 41 RU cable-entry rear door designed specifically for use with the Middle Atlantic BGR Series racks. This steel construction door provides a large cable passage that allows for easy access to equipment wiring without the need for fishing cables through tight spaces. To manage airflow, the vented door design accepts optional cooling fans, such as the FAN2-DC or IFAN2-DC kits. For cable management, a brush grommet can be installed at either the top or the bottom of the rear door. This seismic rated door is TAA compliant and maintains a matching finish with the base BGR rack series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.36 in (3.5 cm) |
| Height | 72.63 in (184.5 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 25 lbs (11.3 kg) |
| Width | 20.3 in (51.6 cm) |
| Base Series | BGR |
| Seismic Rated | Yes |
| UPC | 656747147531 |
Resources
You'll need these with it
Questions about this part
Will the BGR-RDC41 fit my BGR Series rack?
Yes, this 41 RU rear door is specifically designed for the BGR Series base racks.
Can I add cooling fans to this rear door?
Yes, the vented design of the door allows for the installation of optional kits like the FAN2-DC or the FAN2-DC-FC with a thermo controller.
Is this door suitable for seismic applications?
Yes, the BGR-RDC41 is a seismic rated product.
How do I manage cables passing through the rear door?
You can install a brush grommet at either the top or the bottom of the door to facilitate cable entry.
Which documents are available for submittals?
You can access the BGR Series 3 Part Specification, A&E Specification Sheet, and CAD/Revit models in the Resources tab.
