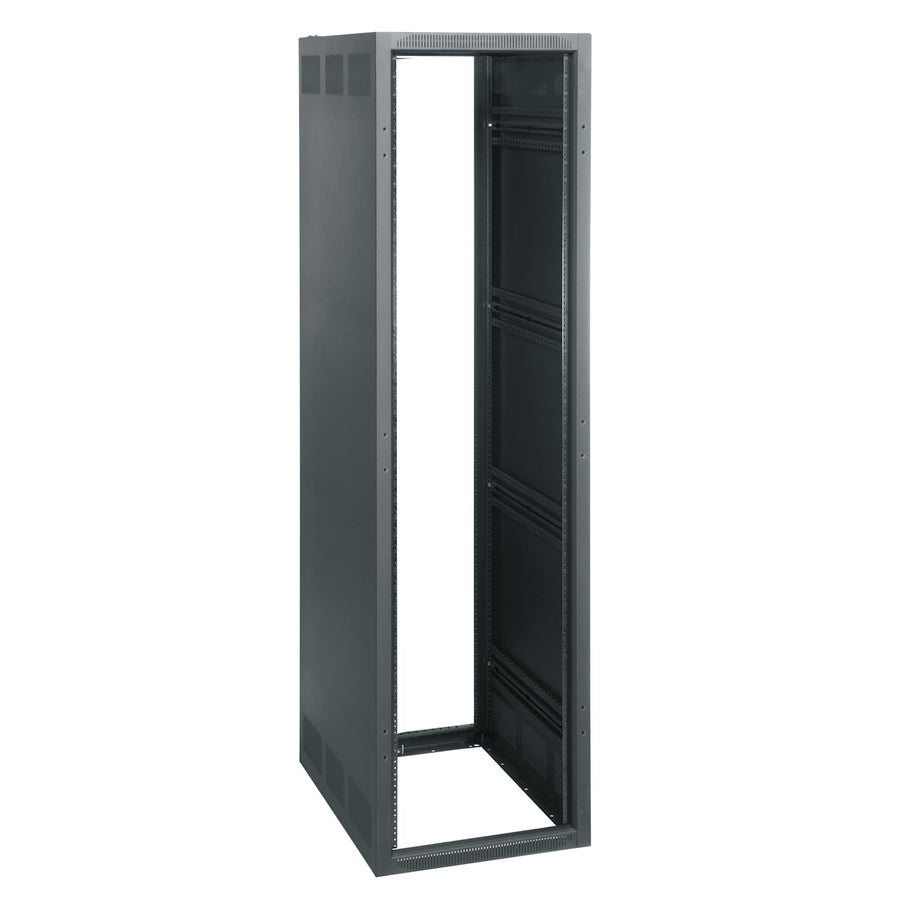

41 RU BGR-SA Series Rack, 27 Inches Deep, without Rear Door
41 RU standalone AV rack, 27-inch depth, seismic rated, TAA compliant, with Forward and Lever Lock™ compatibility
The BGR-41SA-27LRD is a 41 RU standalone AV rack from the BGR-SA Series, designed for high-performance professional installations. This frame-only configuration features a 27 in (68.6 cm) depth and a total height of 75.88 in (192.7 cm). Built with steel and finished in black wrinkle powder coat, it offers a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg). This seismic-rated rack is TAA compliant and OSHPD/HCAI certified. It is the first Forward Compatible rack, supporting Forward and Lever Lock™ accessories for tool-free, rapid installation. The 23 in (58.4 cm) width provides extra room for front-to-back cable management or mounting small devices using the Lever Lock™ system. It is gangable to create larger enclosures and features adjustable Forward Rackrails with numbered spaces for precise equipment positioning. This unit ships without a rear door, allowing for flexible thermal management or the addition of custom cooling solutions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 75.88 in (192.7 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 41 RU |
| Shipping Weight | 166 lbs (75.3 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 71.88 in (182.6 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140013 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
PDT-1015C-M-NS$385.20
PDT Low Profile Vertical Power Strip, 14 Outlet, 15A Basic Surge
PDT-1415C$330.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 20 Outlet, 20A Hardwired
PDT-2X1020$505.80
4 RU Top Panel BGR Series
BGR-STP4$36.90
41 RU Solid Front Door for BGR Racks
BFD-41$424.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Questions about this part
What is the load capacity of the BGR-41SA-27LRD?
The rack has a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg).
Can I add doors or cooling to this BGR-SA rack?
Yes, this frame-only configuration accepts the BGR-552FT-FC fan top with controller and is compatible with brush grommet rear door kits for cable passage.
Is the BGR-41SA-27LRD suitable for seismic zones?
Yes, this rack is seismic rated and holds ASCE, HCAI (formerly OSHPD), TAA, and UL certifications.
What accessories are compatible with the Forward Rackrail system?
It supports the Lever Lock™ system for tool-free cable management and is compatible with various PDT Low Profile Vertical Power Strips like the PDT-1620C-NS.
What is the difference between this rack and other BGR-SA models?
This specific SKU, BGR-41SA-27LRD, is the 41 RU version with a 27-inch depth; other models in the BGR-SA series offer different RU counts and depths.
