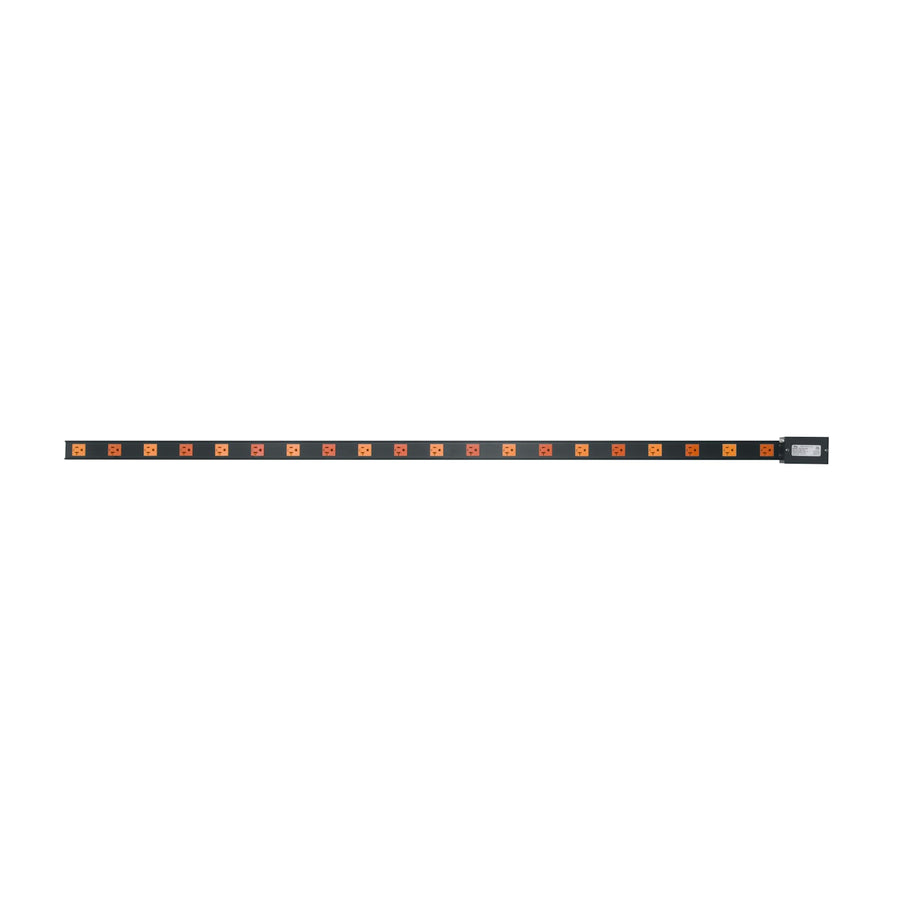

Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 20 Outlet, 20A Hardwired
Dual circuit vertical power strip with 20 outlets, 20A hardwired J-Box termination, and a 2.1" profile
The Middle Atlantic PDT-2X1020 provides high-density power distribution for equipment-heavy racks without sacrificing valuable horizontal rack space. This Select Series vertical power strip features 20 outlets distributed across two separate circuits, allowing for the management of diverse power demands within a single unit. Designed with a thin chassis, it has a depth of 2.1 in (5.3 cm) and a width of 2.58 in (6.6 cm), enabling it to mount unobtrusively in the back of a rack. This model requires a hard-wired connection via a J-Box plug type for 120 VAC input. The 73.25 in (186.1 cm) height is designed to mount to all Middle Atlantic rack rail bracket styles. The included mounting hardware allows for quick, snap-in installation that is easy to service and reposition.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Depth | 2.1 in (5.3 cm) |
| Height | 73.25 in (186.1 cm) |
| Shipping Weight | 5.6 lbs (2.5 kg) |
| Volts AC | 120 VAC |
| Width | 2.58 in (6.6 cm) |
| Cable Type | Hard-Wired |
| Finish | Black Anodized |
All other specifications 6
| Local Meter | No |
| Number of Circuits | 2 |
| Outlet Count | 20 |
| Plug Type | J-Box |
| UPC | 656747065330 |
| Certifications | ETL Listed |
Resources
Questions about this part
How do I install the PDT-2X1020 in my rack?
The PDT-2X1020 includes mounting hardware that allows the unit to snap directly onto Middle Atlantic rack rail brackets for a fast installation.
What is the power connection requirement for this PDU?
This is a hard-wired unit that utilizes a J-Box plug type for 120 VAC power termination.
Will this fit in my standard rack?
Yes, this vertical strip is designed to mount to all styles of Middle Atlantic rack rail brackets.
What is the difference between this and a single circuit PDU?
The PDT-2X1020 features two circuits to accommodate the power demands of more equipment compared to single-circuit models.
Which technical documentation is available for submittals?
You can access the PDT Series Thin Power Distribution 3 Part Specification in .doc format or the full A&E Specification Sheet in PDF.
