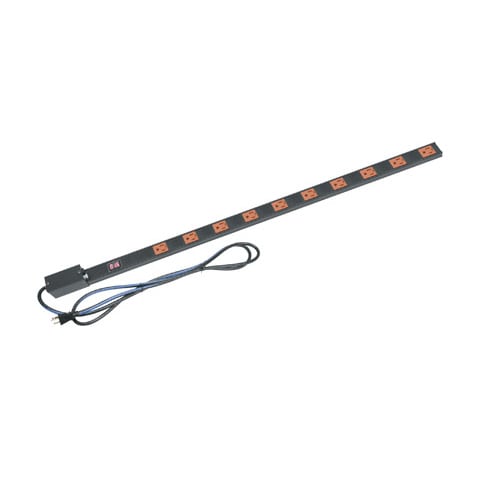

PDT Low Profile Vertical Power Strip, 10 Outlet, 15A with Local Meter
Low profile vertical power strip with 10 outlets, 15A capacity, and built-in LED amperage meter
The PDT-1015C-M-NS is a Select Series vertical power distribution unit designed to increase outlet availability within a rack without consuming valuable horizontal RU space. This 10-outlet power strip features a thin chassis with a depth of only 2.1 in (5.3 cm) and a width of 1.58 in (4 cm), allowing it to mount unobtrusively in the rear of the rack. This specific corded model includes a 9 ft (2.7 m) cable with SignalSAFE™ wiring to help minimize potential interference from AC magnetic fields generated by other rack equipment. To monitor your power usage at a glance, the unit features a local meter with a bright LED display that shows the real-time amperage the equipment is drawing. This 15 Amp, 120 VAC, single-circuit PDU is ETL listed and includes the necessary hardware to snap the unit into place on any Middle Atlantic rack rail bracket system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 38.13 in (96.9 cm) |
| Shipping Weight | 3.6 lbs (1.6 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | Yes |
| Number of Circuits | 1 |
| Outlet Count | 10 |
| Plug Type | 5-15P |
| UPC | 656747129797 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-1015C-M-NS fit in my existing Middle Atlantic rack?
Yes, this PDU is designed to mount to every style of Middle Atlantic rack rail brackets using the included mounting hardware.
How do I monitor the power draw on this unit?
The PDT-1015C-M-NS features an integrated local meter with a bright LED display that shows the amperage being drawn by your equipment.
What is the difference between this corded model and other PDT series strips?
This SKU is a corded model featuring a 9 ft (2.7 m) SignalSAFE™ wire, which is designed to minimize potential AC magnetic field interference.
Is there any specific documentation available for submittals?
You can access the PDT Series Instruction Sheet and the 3-part technical specification document in the resources section for submittal data.
What are the electrical requirements for this power strip?
This unit operates on 120 VAC with a 15 Amp capacity and utilizes a standard 5-15P plug type.
