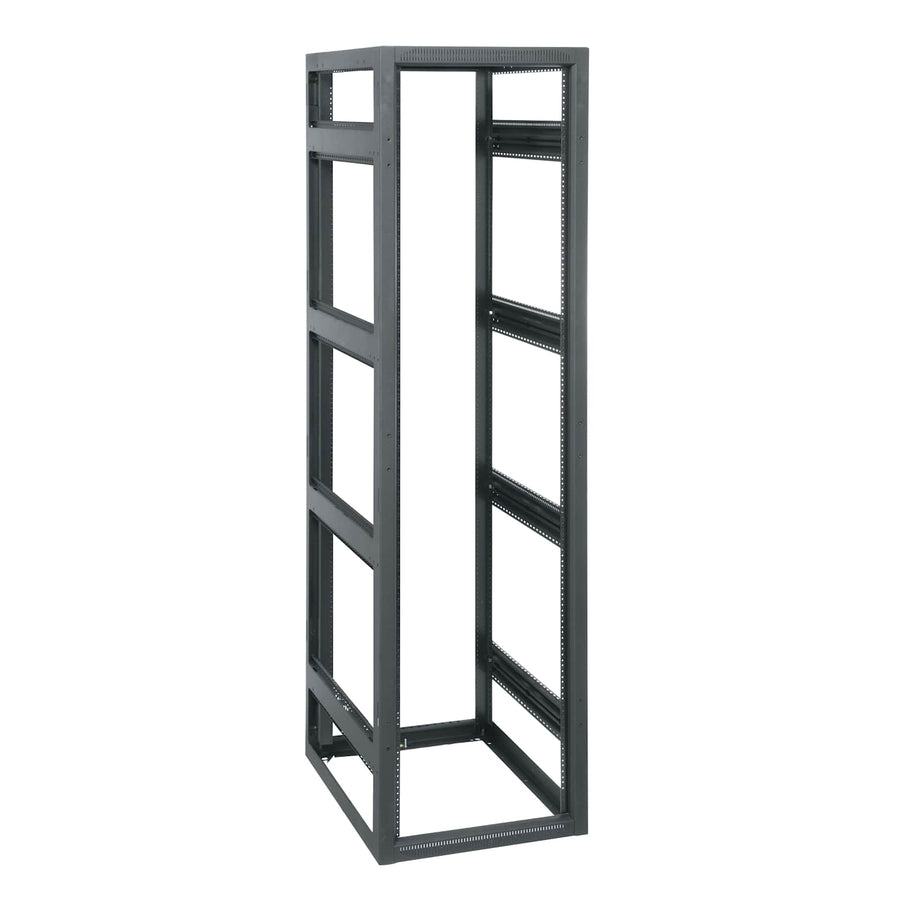

38 RU BGR Series Rack, 32 Inches Deep
38 RU floor-standing AV rack, 32" deep, seismic rated, with 3000 lbs UL load capacity and TAA compliance
The Middle Atlantic BGR-3832 is a 38 RU floor-standing AV rack designed for high-density professional installations. This 32 in (81.3 cm) deep frame features a 23 in (58.4 cm) width, providing extra side space for front-to-back cable management or mounting small devices via the Lever Lock™ system. Engineered for durability, the steel frame carries a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg). This model is seismic rated and includes a standard vented rack rear door that can be upgraded to a brush grommet rear door kit for simplified large cable passage. The configuration is a forward rackrail system with front and rear adjustable rails. This rack is TAA compliant and holds HCAI (formerly OSHPD) certification (OPM-0444-13), making it suitable for sensitive environments. The black wrinkle powder coat finish is paired with 25mm x 150mm swing handles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 70.63 in (179.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 38 RU |
| Shipping Weight | 142 lbs (64.4 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 29.4 in (74.7 cm) |
| Usable Height | 66.63 in (169.2 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140136 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00
FTA Series 4 Inch DC Fan
FT-FAN$90.00
552 CFM Fan Top, with Controller for BGR Series
BGR-552FT-FC$856.80
276 CFM Fan Top, with Controller for BGR Series
BGR-276FT-FC$801.00
Single LED Work Light
LT-CABUTL-SINGLE$261.00
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
Vented Top BGR Series
BGR-LVT9$87.30
35 RU to 40 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
FWD-LT-UTL-35-40-D$450.90
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
Will this rack fit my specific AV equipment?
The BGR-3832 features a 19 in (48.3 cm) panel width, making it compatible with standard 19-inch rackmount equipment. The 29.4 in (74.7 cm) usable depth accommodates most deep-format processing and power components.
Is this rack suitable for seismic zones?
Yes, this rack is seismic rated with a specific seismic load capacity of 1175 lbs (533 kg).
What accessories can I add to the BGR series?
You can add several accessories including the CBS-BGR caster base, QTFP-2 100 CFM fan panels, or various vented/perforated rack vent panels like the VTF1 or VT3.
How much weight can this rack support?
The BGR-3832 has a UL-listed load capacity of 3000 lbs (1,360.8 kg), supporting heavy equipment loads in professional environments.
What is the difference between this and the 27-inch depth version?
The BGR-3832 has a 32 in (81.3 cm) total depth, whereas the 27 in version provides a shallower footprint for space-constrained areas.
