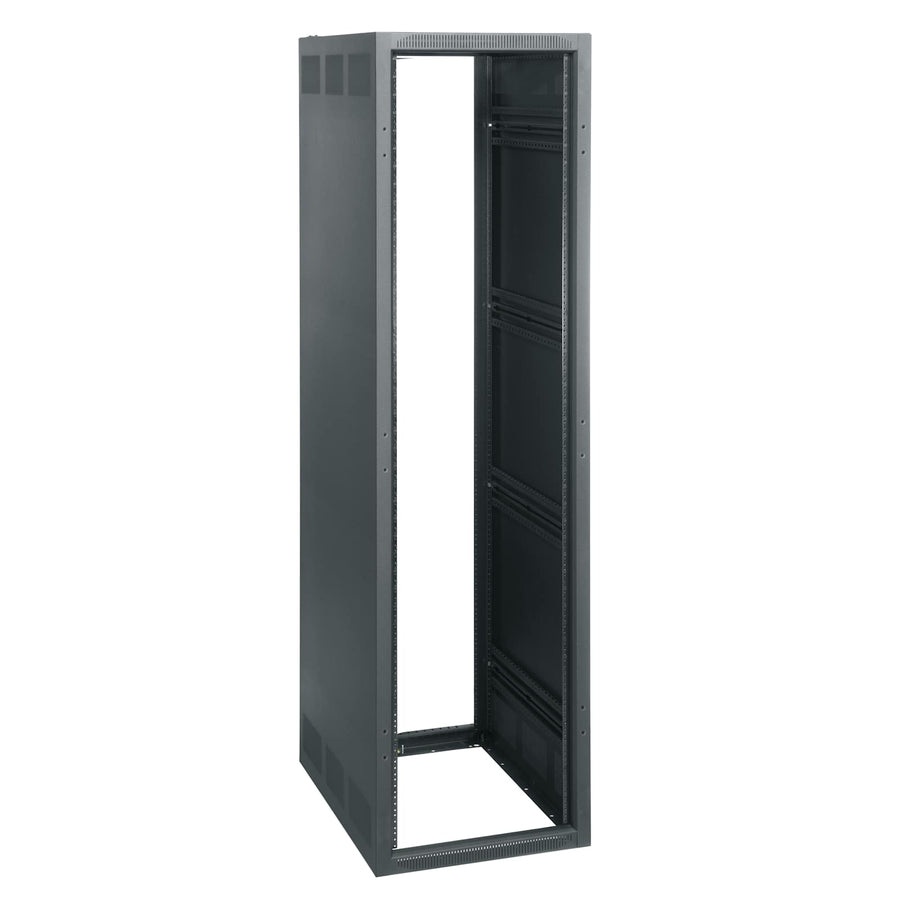

38 RU BGR-SA Series Rack, 27 Inches Deep, without Rear Door
38 RU standalone AV rack with 27" depth, seismic rated, and TAA compliant steel construction
The BGR-38SA-27LRD is a 38 RU standalone AV rack from the BGR-SA Series, designed for high-capacity professional installations. This frame-only configuration features a 27 in (68.6 cm) depth and a 23 in (58.4 cm) width, providing an extra 1-inch of space on the sides for front-to-back cable management or mounting small devices using the Lever Lock™ system. This unit is engineered for high strength with a UL load capacity of 3000 lbs (1,360.8 kg) and a seismic load capacity of 1175 lbs (533 kg). The steel construction includes a Black Wrinkle Powder Coat finish and solid sides to assist with system security and airflow control. For advanced cable management, the Forward rackrail design supports the BGR series and includes side lacing for internal cabling flexibility. The front and rear adjustable rackrails are numbered for rapid installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 70.63 in (179.4 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 38 RU |
| Shipping Weight | 154 lbs (69.9 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 66.63 in (169.2 cm) |
All other specifications 17
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | No |
| Seismic Rated | Yes |
| TAA Compliant | YesYes |
| UPC | 656747140037 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PDT Low Profile Vertical Power Strip, 12 Outlet, 20A
PDT-1220C-NS$330.30
552 CFM Fan Top, with Controller 220 - 240VAC for BGR Series
IBGR-552FT-FC$856.80
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Questions about this part
What is the depth and usable space for the BGR-38SA-27LRD?
The total rack depth is 27 in (68.6 cm) with a usable depth of 24.4 in (62 cm). The total height is 70.63 in (179.4 cm) providing a usable height of 66.63 in (169.2 cm).
Is this rack compatible with seismic and OSHPD requirements?
Yes, this is a seismic-rated rack with a seismic load capacity of 1175 lbs (533 kg). It is also HCAI (formerly OSHPD) certified under OPM.
What accessories can I add to this BGR-SA series rack?
This rack is compatible with a wide range of accessories, including Caster Base (CBS-BGR), Select Series PDU with RackLink™ (RLNK-215), and brush grommet rear door kits for cable passage.
Can multiple BGR-SA racks be joined together?
Yes, the sides of the BGR-SA series include ganging holes that allow multiple racks to be connected into a single unit.
Does this rack come with a rear door included?
No, this specific SKU is a frame-only configuration and does not include a rear door.
