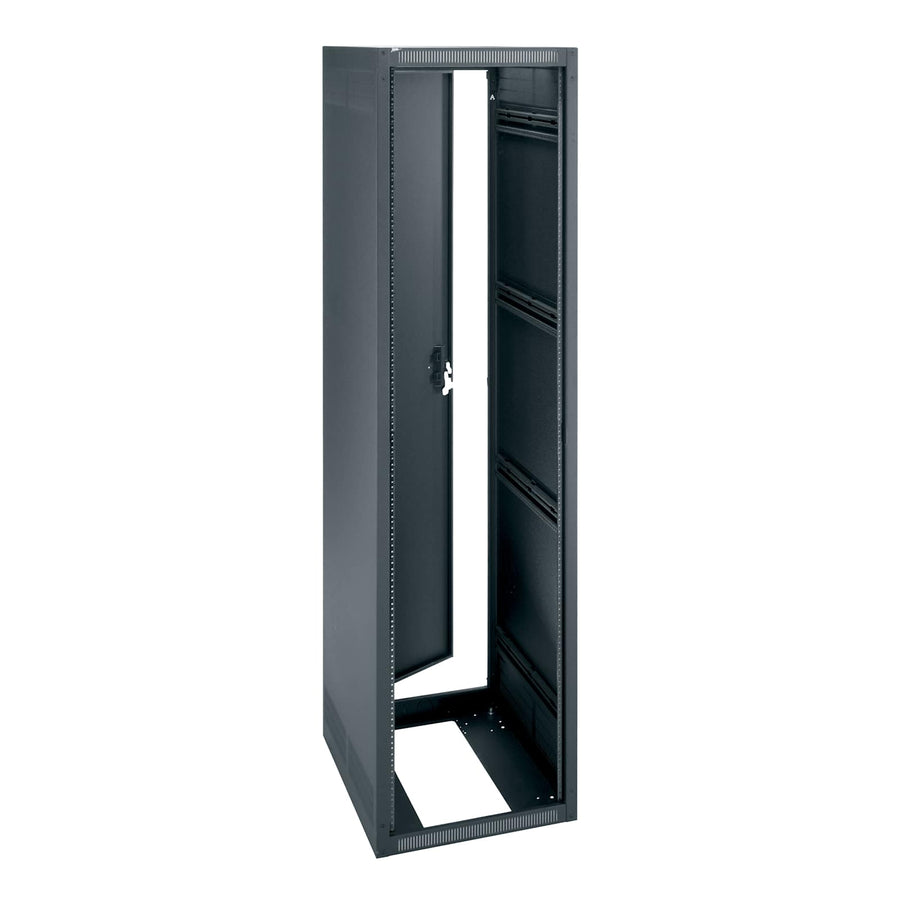

35 RU ERK Series Rack, 25 Inches Deep, Knockdown
35 RU floor standing knockdown rack, 25 in deep, featuring a configurable rear door and 1000 lbs UL load capacity
The ERK-3525KD is a 35 RU floor standing rack from the Middle Atlantic ERK Series designed for efficient, on-site assembly. This knockdown model ships flat to simplify logistics and transport. The 25 in (63.5 cm) deep frame provides a usable depth of 23.47 in (59.6 cm) and a usable height of 61.38 in (155.9 cm) within a total height of 65.38 in (166.1 cm). Built from steel with a black wrinkle powder coat finish, the frame includes top and bottom venting in the sides to assist with passive thermal management. For cable organization, the rack features lacing points and slotted rackrail brackets. The front contains standard adjustable 10-32 threaded rackrails with numbered spaces for easy component placement. This unit includes a configurable rear door and is rated with a 1000 lbs (453.6 kg) UL load capacity and a seismic load capacity of 591 lbs (268.1 kg). This TAA compliant, UL listed, and ASCE certified enclosure is part of a gangable series, allowing multiple units to be joined for partitioned multi-bay installations to manage security and airflow.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 25 in (63.5 cm) |
| Height | 65.38 in (166.1 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 35 RU |
| Shipping Weight | 154 lbs (69.9 kg) |
| UL Load Capacity | 1000 lbs (453.6 kg) |
| Usable Depth | 23.47 in (59.6 cm) |
| Usable Height | 61.38 in (155.9 cm) |
All other specifications 14
| Width | 22 in (55.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| Rear Door | Yes |
| Ships Flat | Yes |
| TAA Compliant | YesYes |
| UPC | 656747070259 |
| Certifications | ASCETAAUL Listed |
| Seismic Load Capacity | 591 lbs (268.1 kg) |
Resources
You'll need these with it

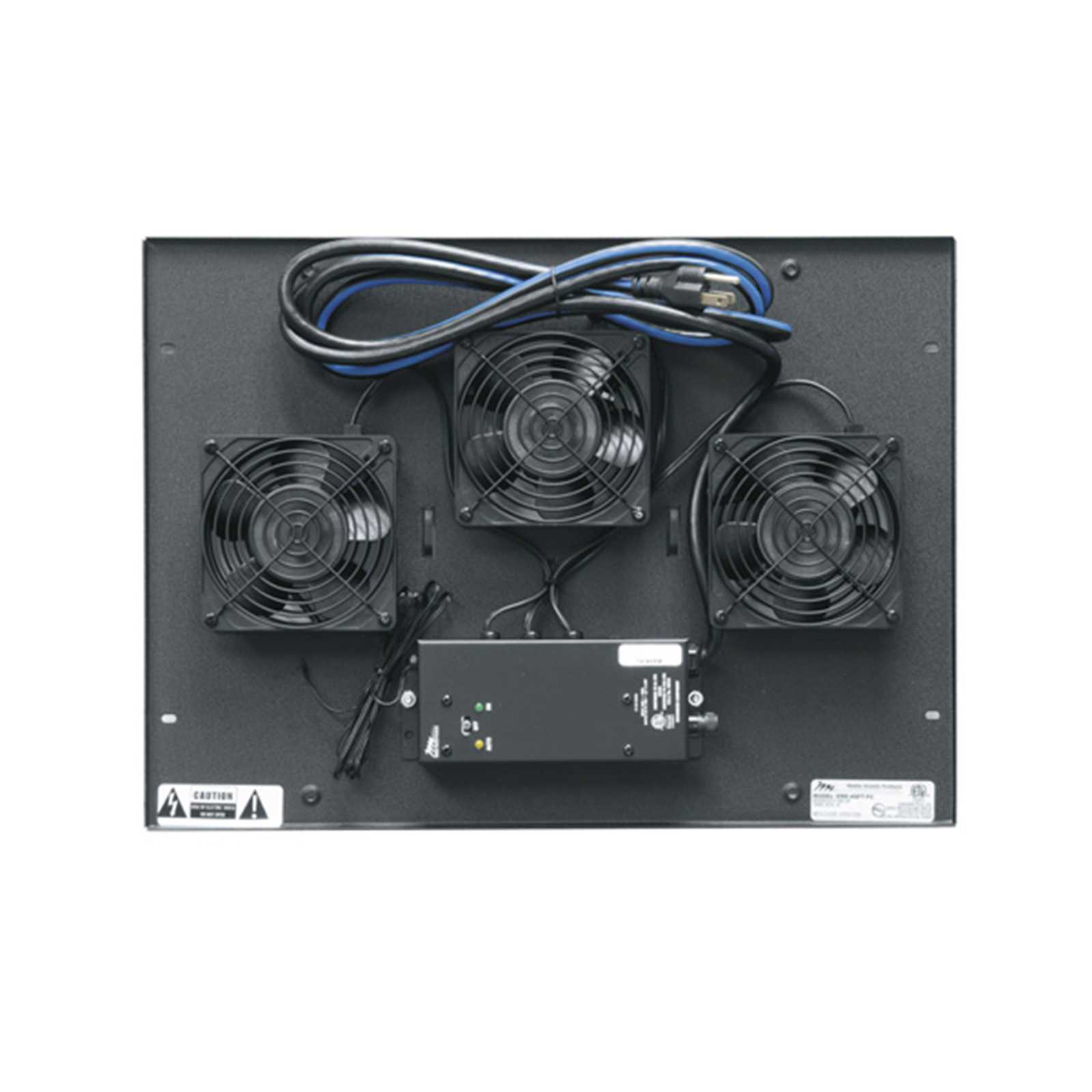

165 CFM Fan Top for with Controller ERK Series
ERK-4QFT-FC$903.60

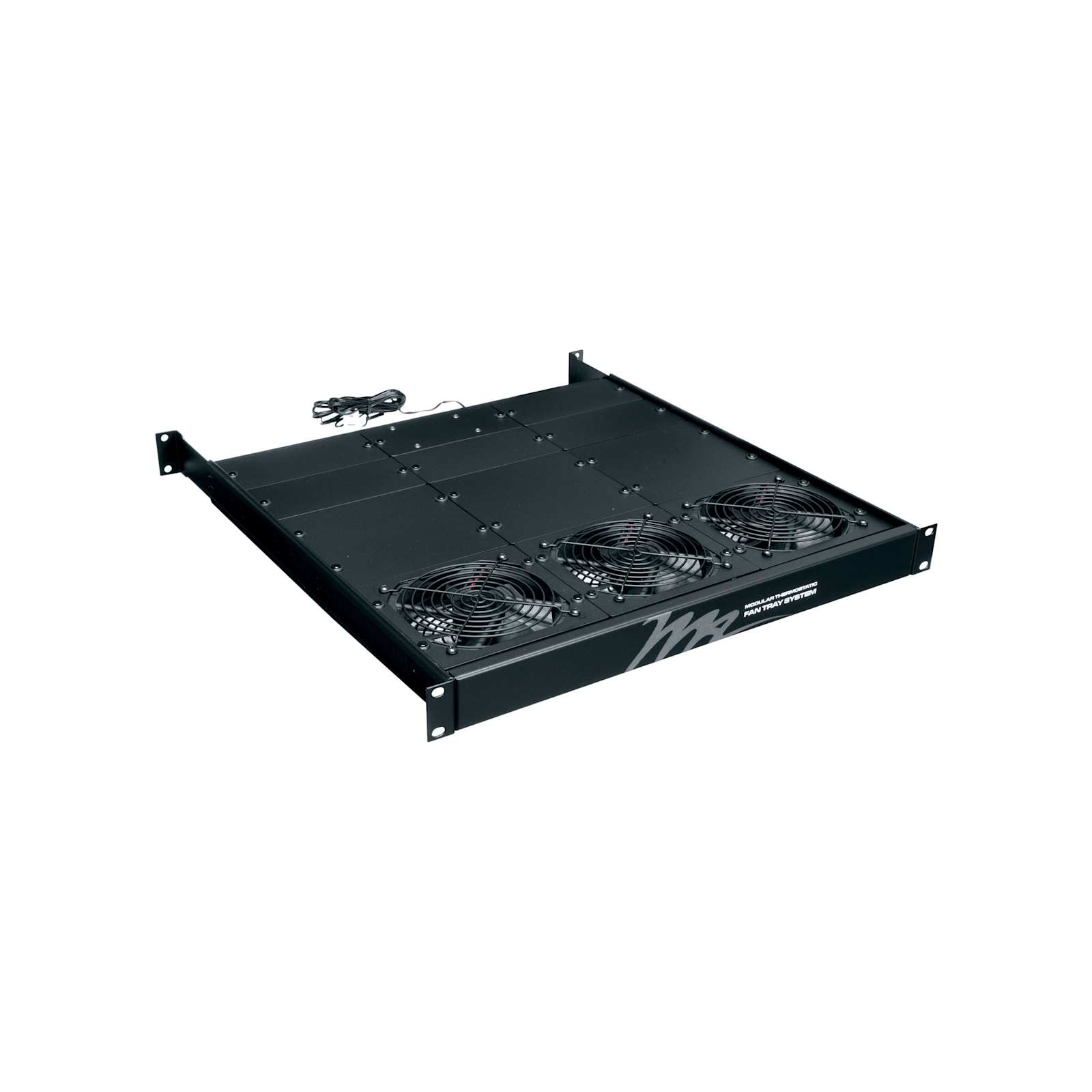

1 RU Fan Tray, 3 Fans, 207 CFM, & 220 - 240VAC
IFTA-3$604.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

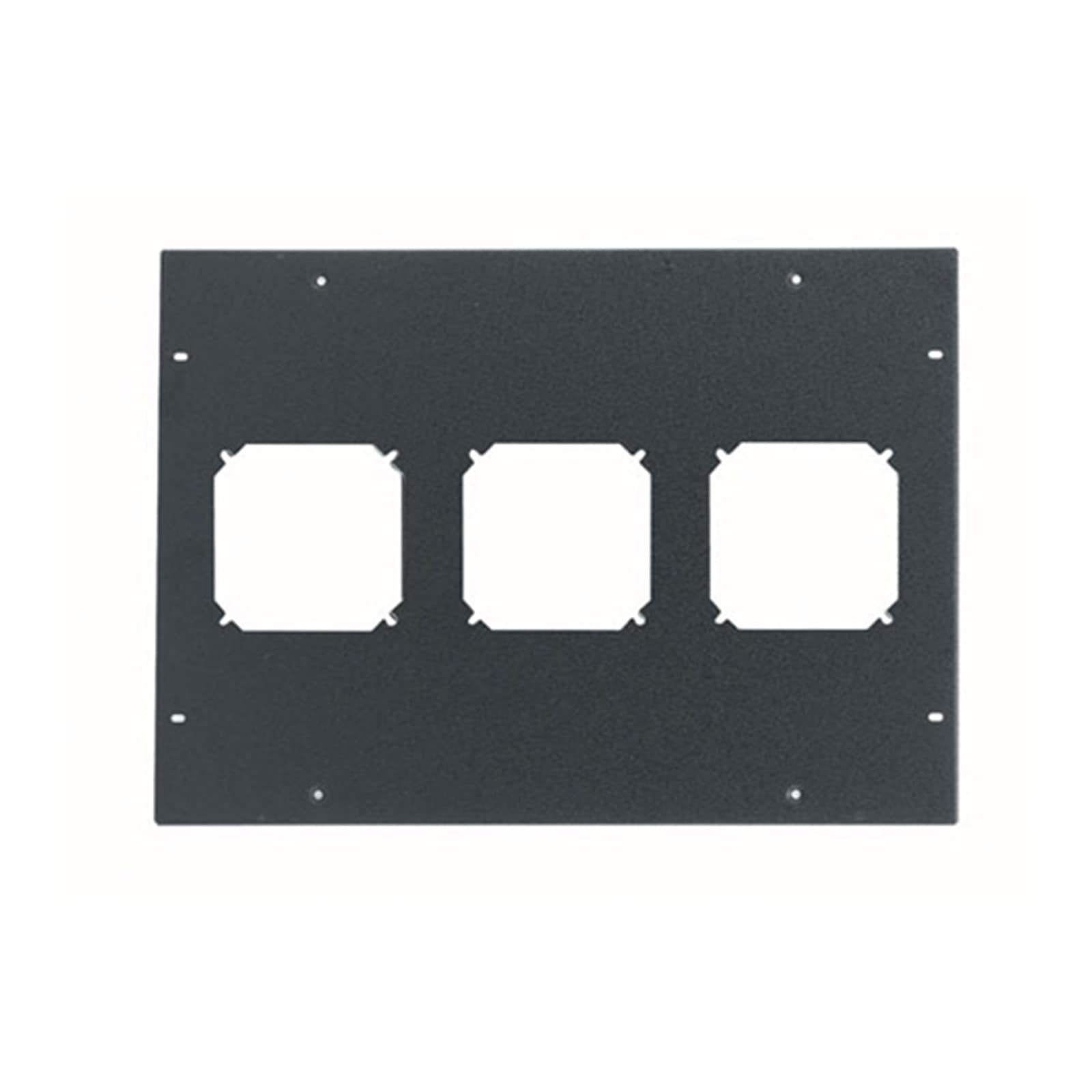

Fan Top Accepts Three 4 Inch Fans ERK Series
ERK-4FT$78.30
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
Power Strip, 24 Outlet, 30A, 2 Circuits Twistlock Plug
PD-2X1215TL-30CB$1,429.20
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
PD Slim High Density Vertical Power Strip, 24 Outlet, 20A
PD-2420SC-NS$330.30
Questions about this part
What is the usable depth of the ERK-3525KD?
The usable depth is 23.47 in (59.6 cm) within the 25 in (63.5 cm) total frame depth.
Can this rack be used in seismic applications?
Yes, this rack is rated with a seismic load capacity of 591 lbs (268.1 kg).
What accessories are needed for thermal management?
You can install fan tops like the ERK-4FT or fan trays such as the IFTA-3 for active cooling.
How do I organize cabling within this rack?
The frame includes lacing points and slotted rackrail brackets; you can also add LACE-23-OWP or LACE-23-OP lace strips.
Is the ERK-3525KD TAA compliant?
Yes, this model is TAA compliant and meets ASCE and UL certification standards.
