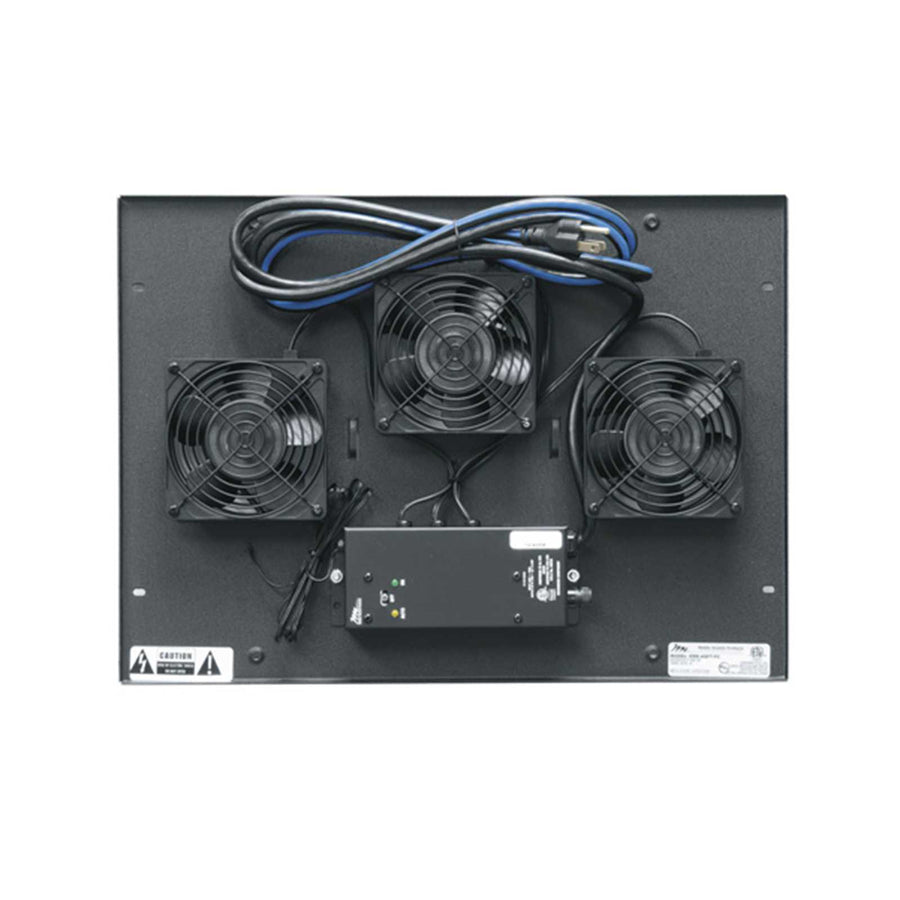

165 CFM Fan Top for with Controller ERK Series
Thermostatically controlled fan top providing 165 CFM of airflow via three 4-1/2" fans for ERK series racks
The ERK-4QFT-FC is a pre-assembled, active fan top designed to provide integrated thermal management for Middle Atlantic ERK series enclosures. This unit features three 4-1/2" (10.16-10.16 cm) fans that deliver a combined 165 CFM of airflow. It is equipped with a proportional speed fan controller that responds to temperature changes, ensuring fans only run when necessary to reduce noise, save energy, and minimize dust build-up within the rack. This specific model is ETL Listed in the US and Canada for safety. The assembly is constructed from steel with a black finish and includes a built-in fan controller. It is designed for easy integration into existing ERK, ERK-KD (all heights), WMRK, and SCRK racks. This top unit is compatible with ERK series racks that are 35 space or higher.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 165 |
| Depth | 1.83 in (4.7 cm) |
| Fan Size | 4-4 in (10.16-10.16 cm) |
| Height | 14.38 in (36.5 cm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Volts DC | 12 VDC |
| Width | 19.75 in (50.2 cm) |
All other specifications 9
| Available Internationally | No |
| Base Series | ERKERK |
| Component Type | Active |
| Controlled | Yes |
| Fan Controller Included | YesYes |
| Manufacturer | Middle AtlanticMiddle Atlantic |
| Power Type | DC |
| UPC | 656747061189 |
| Warranty | 3 years3 years |
Resources
Questions about this part
Which Middle Atlantic racks are compatible with the ERK-4QFT-FC?
This fan top fits ERK series racks (35 space and higher), ERK-KD racks of all heights, WMRK racks, and SCRK racks.
Does the ERK-4QFT-FC include a temperature controller?
Yes, this unit comes with a proportional speed fan controller that adjusts fan speed to reduce noise and energy consumption.
Is this fan top pre-assembled for installation?
Yes, the ERK-4QFT-FC ships as a pre-assembled fan top featuring three 4-1/2" fans and integrated fan guards.
What is the airflow capacity of this fan top?
The unit delivers a total airflow of 165 CFM.
Which document provides installation instructions for this unit?
The Integrated Fan Top Instruction Sheet is available for reference regarding the installation of this ERK series component.
