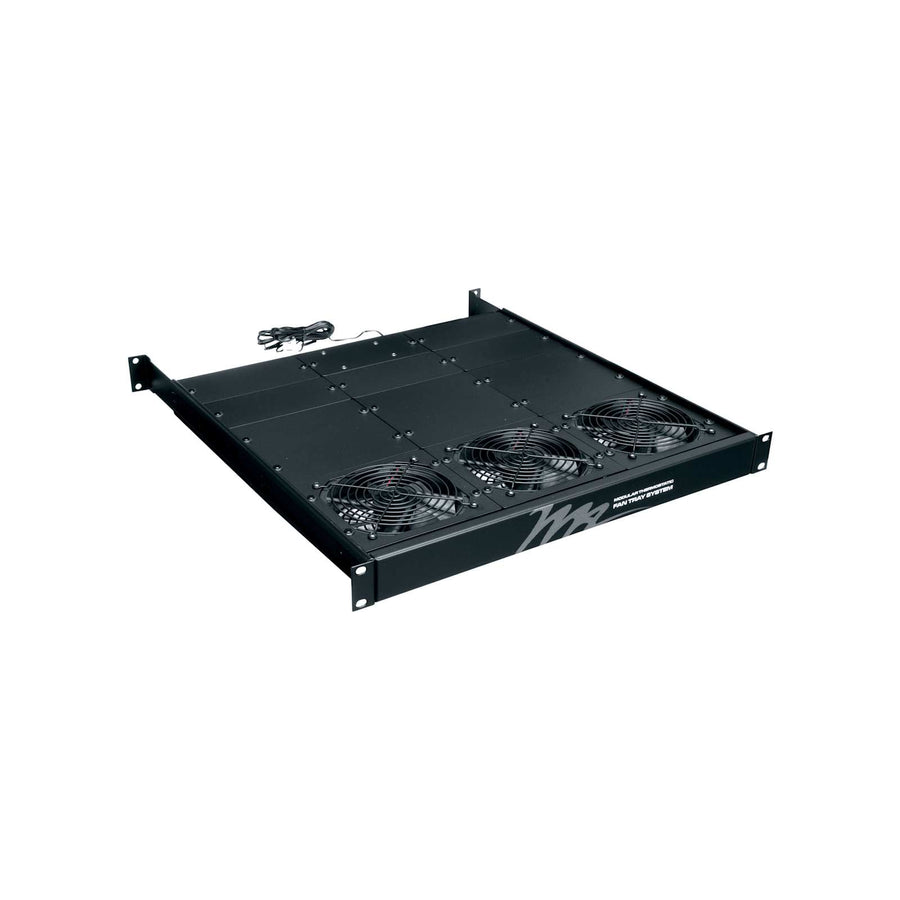

1 RU Fan Tray, 3 Fans, 207 CFM, & 220 - 240VAC
Active 1 RU fan tray system with 3 fans providing 207 CFM for targeted rack cooling
The Middle Atlantic IFTA-3 is a 1 RU active fan tray system designed to improve rack thermal management by positioning air movement directly over heat-generating equipment. This unit utilizes three quiet 4" DC fans, each contributing 69 CFM, to deliver a total airflow of 207 CFM. To optimize energy efficiency, the system includes a thermostatic controller that automatically activates the fans only when required. The IFTA-3 is designed for versatile installation within a rack, offering an adjustable mounting range between 18" and 32" in depth. While this specific SKU comes equipped with 3 fans, the system architecture allows for expansion, with mounting positions available to accommodate a total of up to 8 fans through the use of optional add-on fans. The tray is engineered for easy integration, featuring 4 mounting points and a single power cord for simplified cabling. This TAA compliant component is an active thermal solution that can be adjusted on mounting rails to meet specific project airflow requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 207 |
| Depth | 18.1 in (46 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
| Rack Units | 1 RU |
| Shipping Weight | 13.6 lbs (6.2 kg) |
All other specifications 8
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
| Available Internationally | Yes |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Mounting Points | 4 |
| Power Type | DC |
| UPC | 656747135491 |
Resources
Questions about this part
Will this fan tray work with my rack depth?
The IFTA-3 has an adjustable mounting range from 18" to 32" in depth, allowing it to be positioned to suit your specific equipment configuration.
Can I add more fans to this unit later?
Yes, while the IFTA-3 comes with 3 fans, the system supports a total of up to 8 fans if you purchase optional add-on fans.
How does the thermostatic control function?
The included thermostatic controller provides energy-saving automatic on/off functionality, activating the 4" DC fans only when they are needed for cooling.
What is the total airflow capacity of the IFTA-3?
This unit provides 207 CFM of total airflow, driven by three individual fans that each produce 69 CFM.
Does this unit require a specialized power setup?
The IFTA-3 operates on a 220-240 VAC input and is powered through a single power cord provided with the system.
