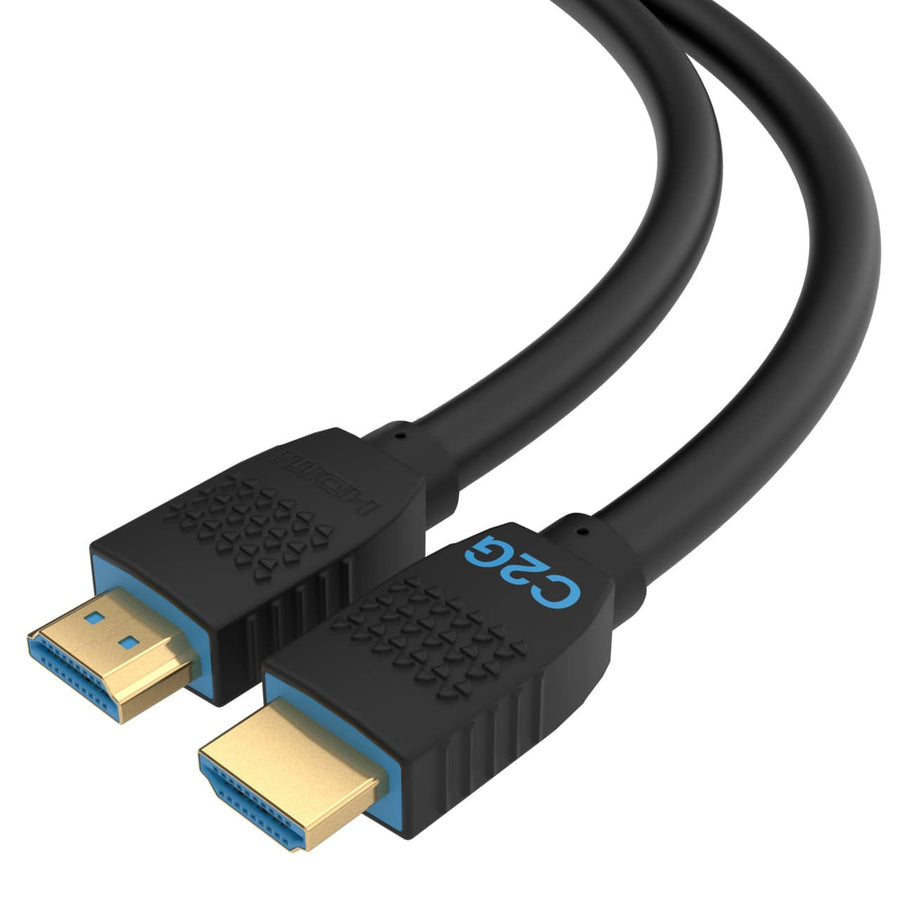

25ft (7.6m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
25ft ultra-flexible HDMI cable supporting 4K @ 60Hz, with an in-wall rated CMG/FT4 jacket and gold-plated connectors
The C2G10402 is a 25ft (7.6m) Performance Series Ultra Flexible High Speed HDMI® Cable designed to handle high-density commercial environments and installations in extremely tight spaces. This cable supports video resolutions up to 4K (4096 x 2160) at 60Hz and provides a data transfer rate of 18 GBPS. It features an in-wall rated jacket with CMG and FT4 ratings, allowing for safe routing inside wall cavities to achieve a clean, professional finish. The connectors are gold-plated to enhance durability and electrical conductivity, and they include integrated finger grips to facilitate easy insertion and removal. For high-density setups, the gripping connector shell provides 2x greater port retention. Additionally, this cable supports CEC extensions, allowing for the control of connected consumer electronics through a single control point. This 0.37 in (9.5 mm) diameter cable is engineered for long-term reliability with a 3.54 in (90 mm) bend radius.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.37 in (9.5 mm) |
| Cable Length | 25 ft (7.6 m) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
| HDMI Type | Ultra Flexible |
All other specifications 9
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG Rated, FT4 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120104025 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCAUL Listed |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
25ft (7.6m) Performance Series Premium High Speed HDMI® Cable with Ethernet
C2G50196$130.99
Questions about this part
Will this C2G10402 cable work for 4K video setups?
Yes, the C2G10402 supports video resolutions up to 4K (4096 x 2160) at 60Hz with an 18 GBPS data transfer rate.
Can I run the C2G10402 cable inside a wall?
Yes, this cable features an in-wall rated jacket with CMG and FT4 ratings for safe installation inside walls.
How does the connector design help in high-density installs?
The C2G10402 features gold-plated connectors with integrated finger grips for easy handling and a gripping shell that provides 2x greater port retention.
What is the bend radius for this HDMI cable?
The C2G10402 has a bend radius of 3.54 in (90 mm) and a cable diameter of 0.37 in (9.5 mm).
Does this HDMI cable support CEC?
Yes, this cable supports CEC extensions to enable control of connected consumer electronics devices through a single point.
