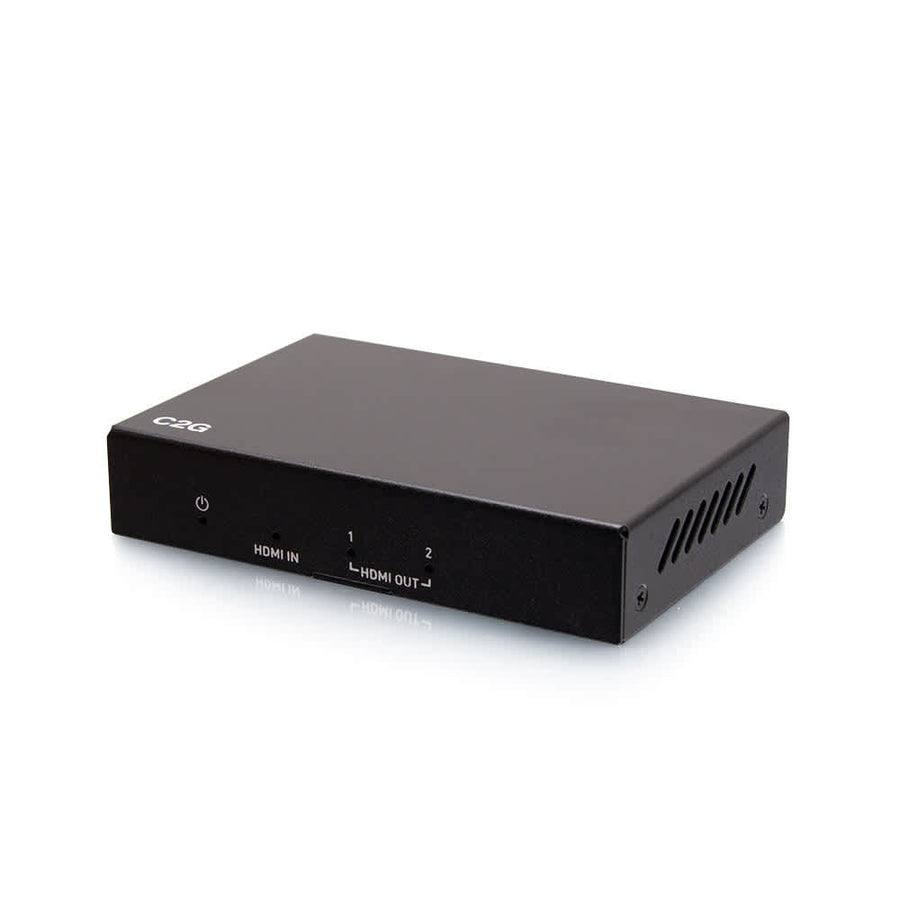

2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
HDMI splitter distributing 4K @ 60Hz from one input to two outputs, supporting HDCP 2.2 and 18Gbps bandwidth
The C2G41600 is a 1-input, 2-output HDMI distribution amplifier splitter designed for professional AV environments. It enables the distribution of high-resolution video signals from a single professional source, such as enterprise workstations, media servers, digital signage players, or control systems, to two separate 4K displays. This active device supports 4K Ultra HD resolutions up to 4096 x 2160 at 60Hz and is fully HDCP 2.2 compliant. With a maximum data transfer rate of 18Gbps, it ensures high-bandwidth signal integrity for demanding commercial applications. The device supports 4:4:4 chroma subsampling and a wide range of audio formats, including Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio, alongside PCM 2.0, 5.1, and 7.1. This splitter is built for reliability in conference rooms, command centers, and training facilities where consistent signal replication is required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 2.57 in (6.5 cm) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Shipping Weight | 1.32 lbs (0.6 kg) |
| Signal Transmission | Unidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
All other specifications 19
| Storage Temperature Max | 518 Fahrenheit (270 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Audio Specifications | Dolby AtmosDolby TrueHDDTS:XDTS-HD Master AudioPCM 2.0PCM 5.1PCM 7.1 |
| Cable Type | HDMI |
| Chroma Subsampling | 4:4:4 |
| Color | Black |
| Connector 1 | (1) HDMI Female |
| Connector 2 | (2) HDMI Female |
| Product Type | Active DeviceSplitter |
| TAA Compliant | No |
| Technology Specifications | HDCP 2.2HDMI 2.0 |
| UPC | 757120416005 |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
You'll need these with it
Questions about this part
Will the C2G41600 support my 4K @ 60Hz displays?
Yes, this splitter supports 4K resolution up to 4096 x 2160 at 60Hz and is HDCP 2.2 compliant.
What audio formats can this HDMI splitter pass through?
The device supports Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio, as well as PCM 2.0, 5.1, and 7.1.
What other cables do I need to complete my installation?
For optimal performance, this unit is compatible with C2G high-speed cables like the C2G10411 Plus Series Ultra High Speed HDMI cable.
Is the C2G41600 compliant with NDAA 889?
Yes, this product is listed as NDAA 889 compliant and holds CE and FCC certifications.
Does this unit support 4:4:4 chroma subsampling?
Yes, the C2G41600 supports 4:4:4 chroma subsampling to maintain high-quality video signals.
