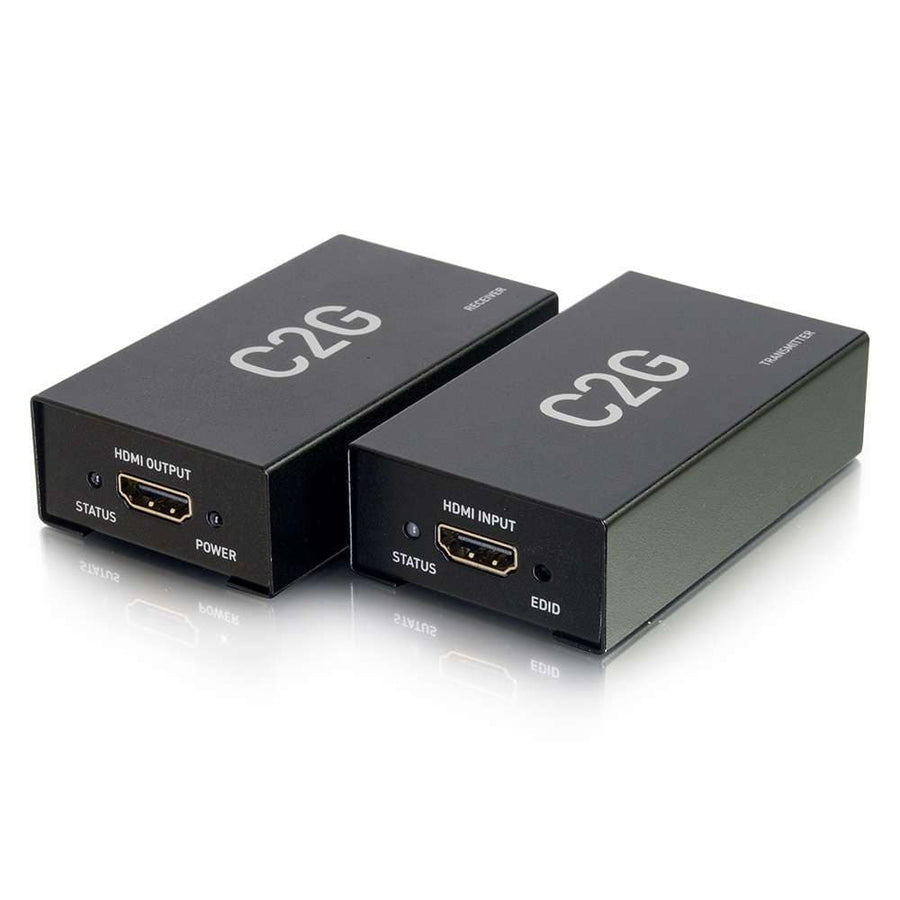

HDMI Over Cat5/6 Extender up to 164ft (50m)
HDMI extender for 1080p video and audio, extending signals up to 164ft (50m) over a single Cat5 or Cat6 cable
The C2G CG60180 is an active HDMI over Cat5/6 extender designed to transmit digital video and audio signals over long distances. It is a plug-and-play solution for environments like churches, schools, and trade shows where the HDMI source is located more than 50 feet from the display. This extender utilizes a single Cat5 or Cat6 patch cable to bridge the distance, providing a cost-effective alternative to running long, heavy HDMI cables. The device supports video resolutions up to 1080p at 60Hz and is capable of transmitting 3D content. With a data transfer rate of 6.75 Gbps, it maintains high-performance signal quality for digital signage and presentation applications. The system is designed for easy setup: connect the transmitter to your video source, the receiver to your display, and use a single category cable to complete the link.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 3.32 in (8.4 cm) |
| Max Distance Support | 164 ft (50 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 0% RH (Non-Condensing) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 1.4 lbs (0.6 kg) |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 0% RH (Non-Condensing) |
All other specifications 14
| Storage Temperature Max | 104 Fahrenheit (40 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
| Cable Type | ExtensionHDMI |
| Color | Black |
| Connector 1 | (1) HDMI Female(1) HDMI Female(1) RJ-45 Female(1) RJ-45 Female |
| Connector 2 | (1) HDMI Female(1) HDMI Female(1) RJ-45 Female(1) RJ-45 Female |
| Product Type | Active DeviceExtender |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120601807 |
| Video Resolution | 1080p |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 6.75 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it

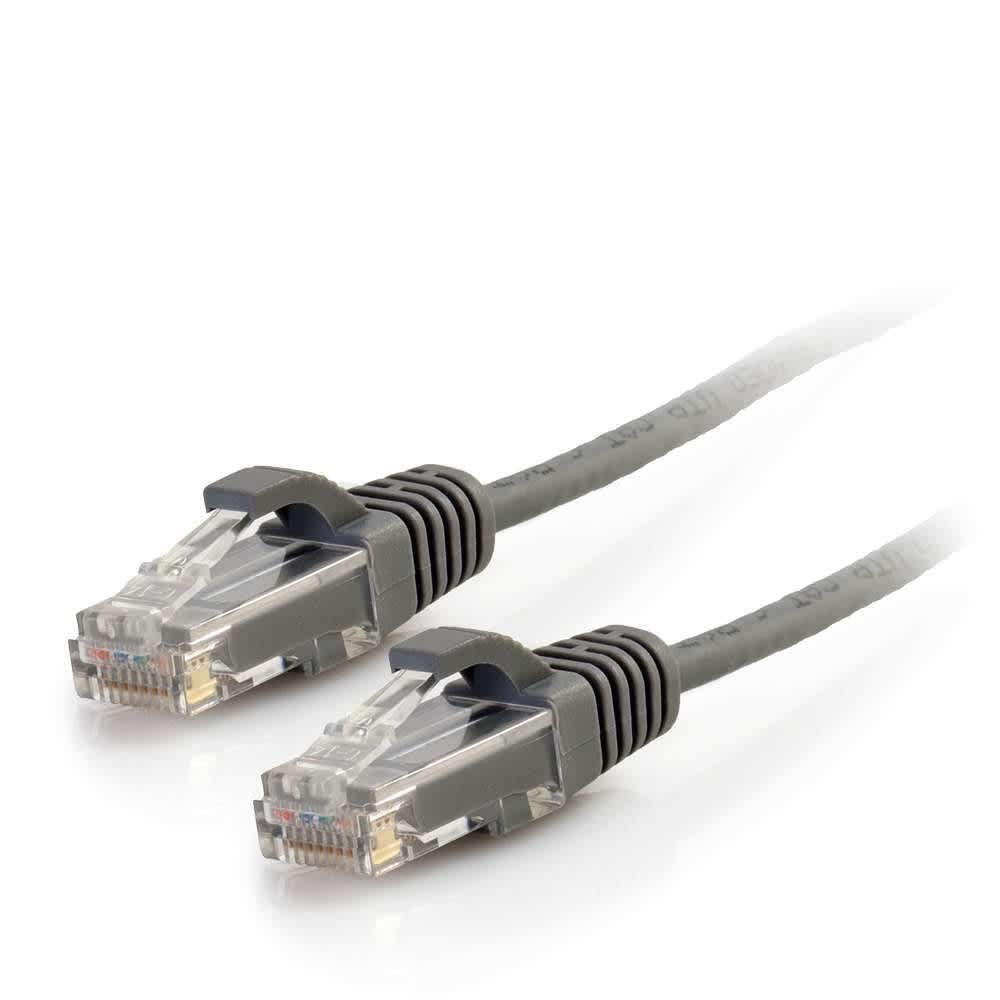

3ft (0.9m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Gray
CG01089$8.99
20ft (6.1m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03987$16.99
8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG03976$9.99
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG27143$10.99
6ft (1.8m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG03983$7.99
10ft (3m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG27153$10.99
3ft (0.9m) Core Series High Speed HDMI® Cable with Ethernet
CG56782$12.99
6ft (1.8m) Plus Series Ultra High Speed HDMI® Cable
C2G10411$39.99
10ft (3m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10378$33.99
Questions about this part
What is the maximum distance the CG60180 can extend HDMI signals?
This extender supports distances up to 164 ft (50 m) using a single Cat5 or Cat6 cable.
What video resolutions and formats are supported by the CG60180?
The device supports video resolutions up to 1080p at 60Hz and is capable of transmitting 3D signals.
What type of cabling is required for the connection between the units?
A single Cat5 or Cat6 patch cable is required to connect the transmitter and the receiver.
Do I need to install any drivers to use this HDMI extender?
No, the CG60180 is a plug and play device that requires no software or drivers to operate.
What is the required data transfer rate for this extender?
The unit supports an HDMI transfer rate of 6.75 GBPS.
