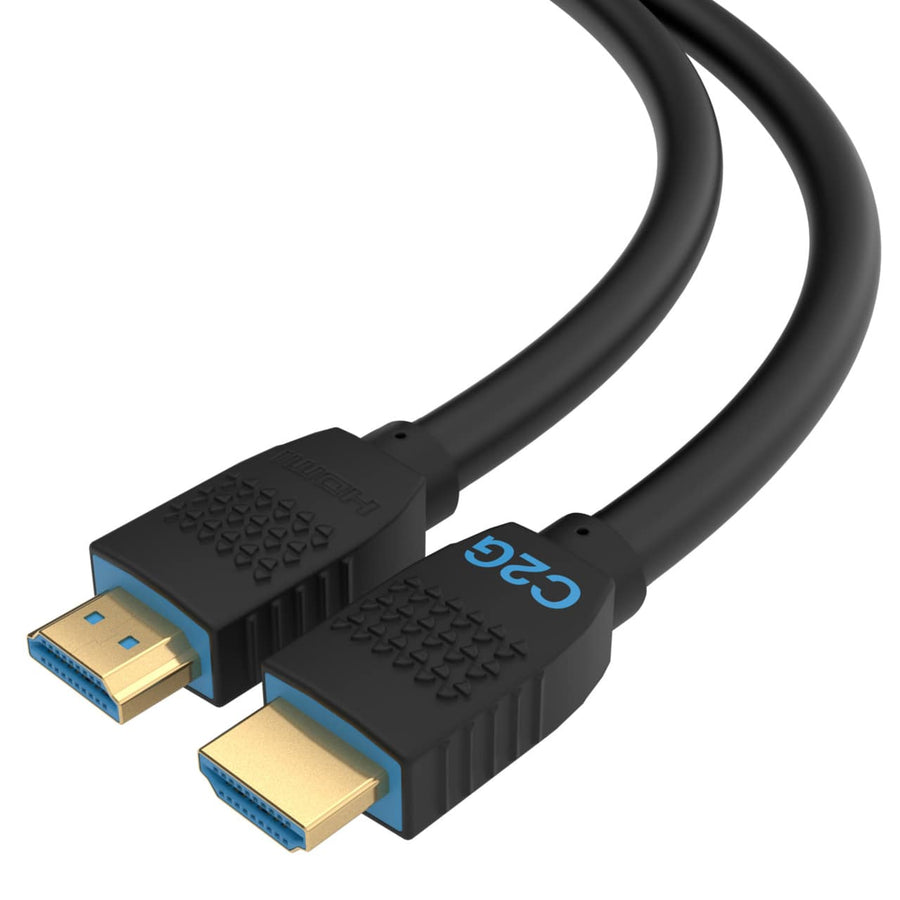

25ft (7.6m) Performance Series Premium High Speed HDMI® Cable with Ethernet
25 ft Premium High Speed HDMI cable supporting 4K @ 60Hz, 18 GBPS bandwidth, with an in-wall rated jacket
The C2G50196 is a 25 ft (7.6 m) Premium High Speed HDMI cable designed for high-performance video transmission and ultra-reliability. Tested to conform with the Premium HDMI Cable Certification Program, this cable supports video resolutions up to 4K (4096 x 2160) at 60Hz. It features an 18 GBPS data transfer rate and gold plated connectors to ensure increased electrical conductivity and enhanced durability. This cable is rated with a CMG and FT4 jacket, making it safe for in-wall installations to achieve a clean, professional look. For ease of use, the connectors include integrated finger grips for insertion and removal, alongside a gripping connector shell that provides 2x greater port retention. Additionally, it supports Consumer Electronic Control (CEC) extensions, allowing for device communication and control through a single point.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 3.54 in (90 mm) |
| Cable Diameter | 0.35 in (9 mm) |
| Cable Length | 25 ft (7.6 m) |
| Shipping Weight | 1.75 lbs (0.8 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
All other specifications 10
| HDMI Type | Premium HS |
| Jacket Application | In-Wall Rated |
| Jacket Rating | CMG Rated, FT4 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120501961 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCAUL Listed |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
4-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41058$132.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
25ft (7.6m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10402$102.99
Questions about this part
Is the C2G50196 safe for in-wall installation?
Yes, this cable features a CMG and FT4 rated jacket, making it suitable for in-wall applications to ensure a clean installation.
What video resolutions does the C2G50196 support?
The C2G50196 supports high-resolution video up to 4K (4096 x 2160) at 60Hz via its 18 GBPS data transfer rate.
Does this HDMI cable support CEC?
Yes, this cable supports CEC extensions, which allow for the control of connected consumer electronics devices through a single control point.
How does the connector design assist with installation?
The connectors feature integrated finger grips for easier handling and a specialized gripping shell designed for 2x greater port retention.
What is the difference between this and the C2G10402?
The C2G50196 is a 25 ft Premium High Speed model, whereas the C2G10402 is a 25 ft Ultra Flexible version.
