2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
2-port HDMI splitter supporting 4K @ 30Hz 4:4:4 and 4K @ 60Hz 4:2:0 resolution for dual displays

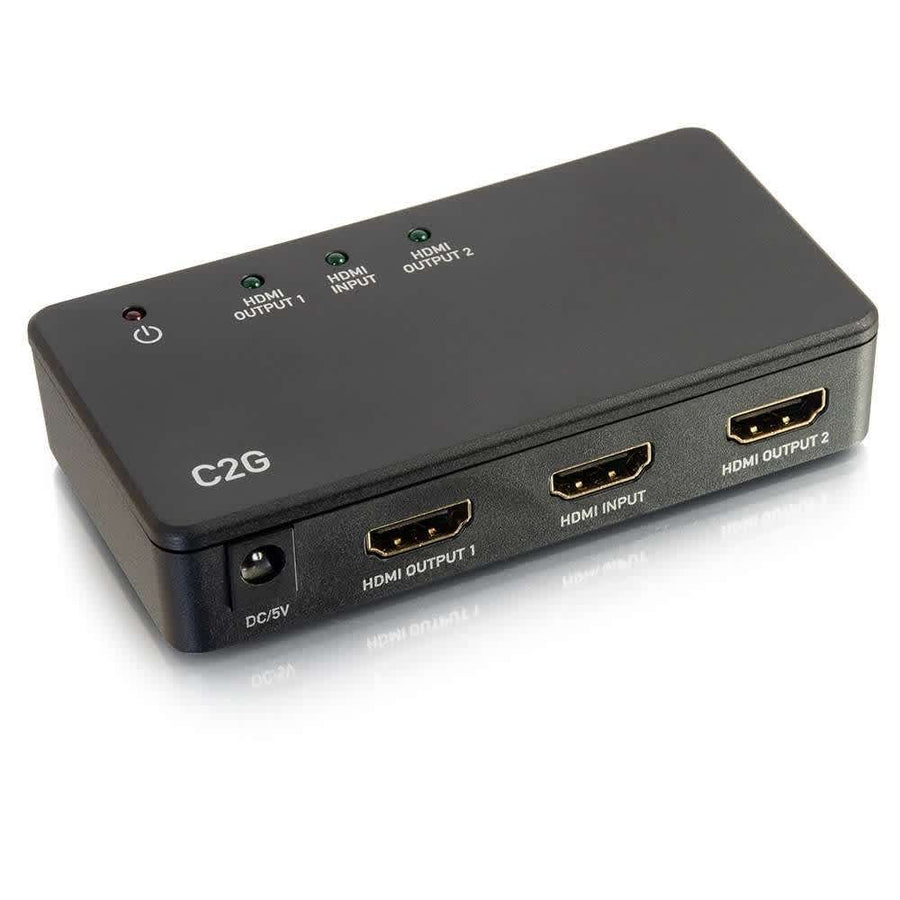

The C2G CG41057 is a 2-Port HDMI Distribution Amplifier designed to deliver a single HDMI source to two displays simultaneously. This active device supports high-bandwidth video performance with a total HDMI data rate of 10.2 Gbps (340 MHz per channel). It is capable of driving 4096 × 2160 at 30Hz with 4:4:4 chroma subsampling, as well as 4096 × 2160 at 60Hz with 4:2:0. The unit handles Deep Color in 8-, 10-, and 12-bit per channel and is compatible with 3D video formats. For audio, it provides multichannel passthrough for formats including DTS-HD, Dolby TrueHD, DTS, Dolby AC-3, and DSD. This TAA-compliant splitter is built for professional environments such as digital signage networks, command-and-control rooms, enterprise collaboration spaces, and classroom environments that require stable Ultra HD performance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 4.13 in (10.5 cm) |
| Shipping Weight | 0.75 lbs (0.3 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) HDMI Female(1) HDMI Female |
| Connector 2 | (2) HDMI Female(2) HDMI Female |
| Product Type | Active DeviceSplitter |
| TAA Compliant | Yes |
| UPC | 757120410577 |
| Video Resolution | 1080p4K4K @ 30Hz |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTAATSCA |
| Warranty | 5 years |
Resources
Questions about this part
What resolutions can the CG41057 split?
The CG41057 supports 4096 × 2160 at 30Hz with 4:4:4 chroma subsampling, and 4096 × 2160 at 60Hz with 4:2:0.
Is the C2G CG41057 TAA compliant?
Yes, the CG41057 is TAA compliant, making it suitable for government installations and specific enterprise requirements.
Which audio formats are supported by this HDMI splitter?
This device provides multichannel audio passthrough for DTS-HD, Dolby TrueHD, DTS, Dolby AC-3, and DSD.
Does this splitter support 3D video?
Yes, the CG41057 includes 3D video format compatibility for integrated AV systems.
What is the total bandwidth of the CG41057?
The unit features a high-bandwidth design with a total HDMI data rate of 10.2 Gbps, providing 340 MHz per channel.
