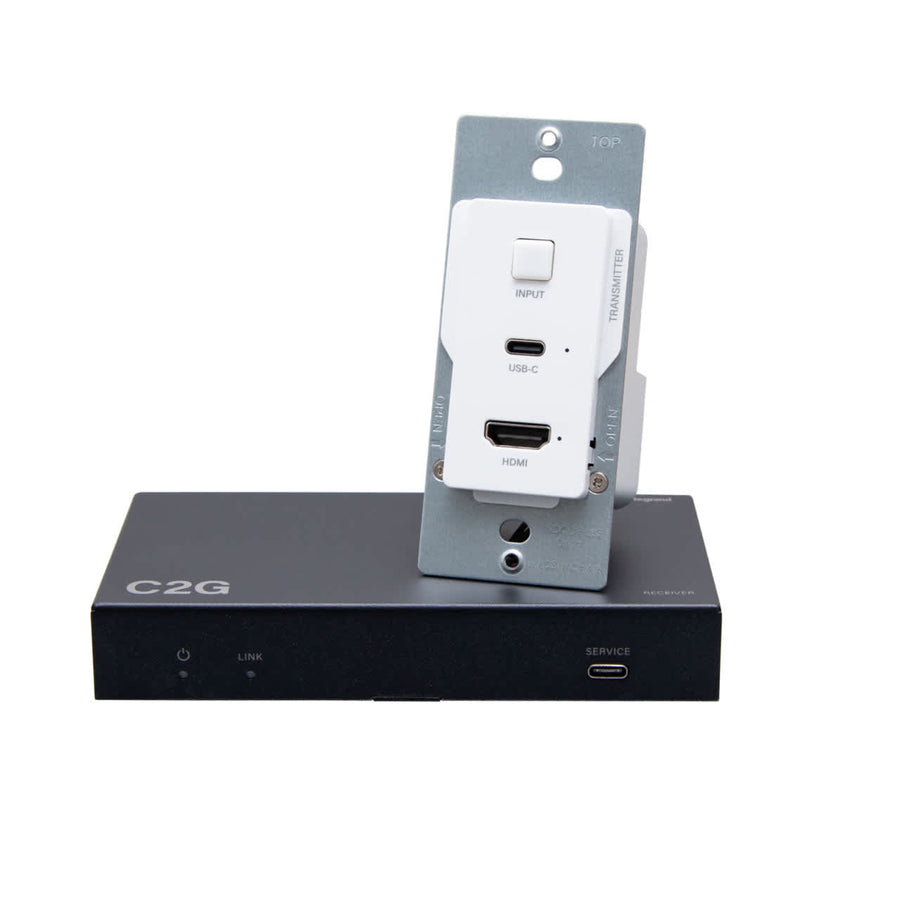

HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
HDBaseT extender kit for 4K HDMI and USB-C video plus USB 2.0 data over a single Cat6a cable up to 130 ft
The C2G31029 HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Kit is a comprehensive solution for extending high-resolution signals and peripheral data through a single installation. This kit utilizes HDBaseT technology to transmit 4K@60Hz HDMI and 4K@30Hz USB-C video signals, along with USB 2.0 data and RS-232 control, over one Cat6a Ethernet cable up to 130 ft (40 m). The transmitter is designed as a wall plate with both HDMI and USB-C inputs, including a USB-C port that supports 4K 30Hz video transmission via DP Alt Mode (v1.2a). This makes the C2G31029 an essential tool for interactive whiteboards, conference rooms, and lecture halls where users need to connect laptops or mobile devices directly to a fixed display. The receiver supports downscaling from 4K 60Hz to 1080p without frame rate conversion, and it features two USB-A ports capable of providing output power up to 5V/1.4A to support connected peripherals. This HDCP 2.2 compliant system ensures secure signal transmission from the source to the display, supporting uncompressed audio formats like Dolby Atmos, DTS:X, and LPCM 7.1.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Max Distance Support | 130 ft (39.6 m) |
| Max Supported Color Depth | 10-bit12-bit8-bit |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | 32° - 113°F (0° - 45°C) |
| Operating Temperature Max | 113 Fahrenheit (45 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Power Consumption | 32 W |
All other specifications 27
| Shipping Weight | 2.56 lbs (1.2 kg) |
| Signal Transmission | Unidirectional |
| Storage Humidity Max | 90% RH (Non-Condensing) |
| Storage Humidity Min | 10% RH (Non-Condensing) |
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Audio Specifications | Dolby AtmosDolby TrueHDDTS:XDTS-HD Master AudioLPCM 2.0LPCM 5.1LPCM 7.1 |
| Chroma Subsampling | 4:2:0 |
| Color | White/Black |
| Connector 1 | (1) HDMI Female(1) RJ-45 Female(1) USB-C Female(1) USB-C FemaleRS-232 |
| Connector 2 | (1) 3.5mm Female(1) HDMI Female(1) RJ-45 Female(1) USB-A Female(1) USB-A Female(1) USB-C FemaleRS-232 |
| Included | Mounting HardwarePower AdapterWall Plate |
| Input Ports | HDMIUSB-C |
| Material | AluminumPlastic |
| Number of Displays | 1 |
| Number of Ports | 12 |
| Output Ports | HDMI |
| Port Selection | AutoManual |
| Product Type | ReceiverTransmitter |
| Technology Specifications | HDMI 2.0USB 2.0 |
| UPC | 757120310297 |
| Video Input Support | HDMIUSB-C |
| Video Output Support | HDMI |
| Video Resolution | 4K @ 60Hz |
| Certifications | CEFCCIEC CertifiedProp 65REACHRoHS |
| Data Transfer Rate | 10.2 GBPS |
| Warranty | 5 years |
Resources
Questions about this part
The C2G31029 supports 4K@60Hz HDMI and 4K@30Hz USB-C video signals up to 130 ft (40 m) via a single Cat6a cable.
The C2G31029 supports 4K@60Hz HDMI and 4K@30Hz USB-C video signals up to 130 ft (40 m) via a single Cat6a cable.
Will this extender work with my USB-C laptop?
Yes, the transmitter includes a USB-C port that supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) alongside USB 2.0 data transfer.
Does the receiver provide power to USB peripherals?
The receiver features two USB-A ports that support output power up to 5V/1.4A for connected devices.
What cabling is required for this HDBaseT extender?
This system requires a single Cat6a Ethernet cable to transmit HDMI, USB-C video, USB 2.0 data, and RS-232 control signals.
Which documents are available for submittals?
The C2G31029 has a technical datasheet and a full installation manual available as PDF documents for system design and setup.
