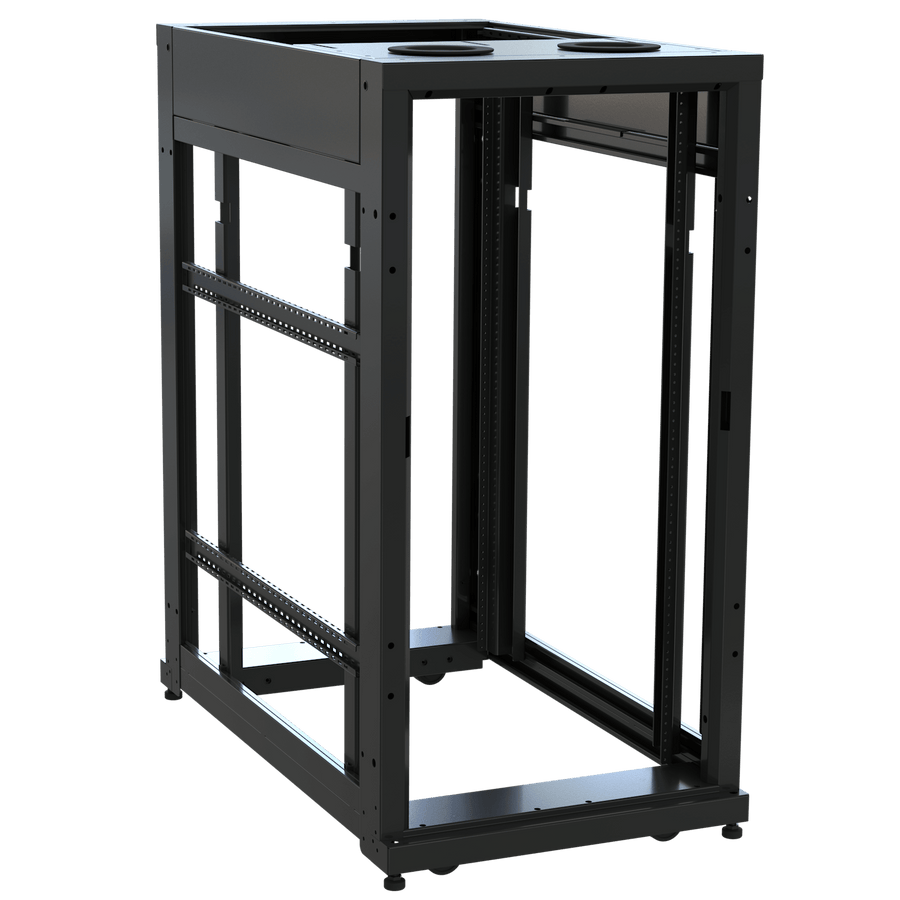

24 RU SNE Series Rack Frame, 42 Inches Deep, 24 Inches Wide with 10-32 Rackrail
24 RU floor-standing rack frame, 42 in depth, 24 in width, seismic rated, and TAA compliant for security and network enclosures
The SNE24F-2442 is a 24 RU floor-standing rack frame designed for high-performance security and network enclosure configurations. Built for both analog, digital, and hybrid systems, this frame supports IP networking requirements in diverse environments. This 42 in (106.7 cm) deep and 24.04 in (61.1 cm) wide unit features a usable height of 42 in (106.7 cm) and a usable depth of 38.48 in (97.7 cm) to accommodate extensive hardware. It includes two pairs of 10-32 threaded rackrails for standard equipment mounting and is engineered with a Black Texture Powder Coat finish. For specialized installation needs, the frame is gangable and comes equipped with four leveling feet and four casters for mobility and stability. This TAA compliant and UL listed frame is seismic rated, making it suitable for demanding installations. Note that this SNE Series product is scheduled for discontinuation on December 1, 2026, with WMRK-2442 serving as the recommended replacement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 48.16 in (122.3 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 176 lbs (79.8 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 42 in (106.7 cm) |
| Width | 24.04 in (61.1 cm) |
All other specifications 9
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Rack Rail Type | 10-32 |
| Seismic Rated | Yes |
| System Type | Frame only |
| TAA Compliant | Yes |
| UPC | 656747232114 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it

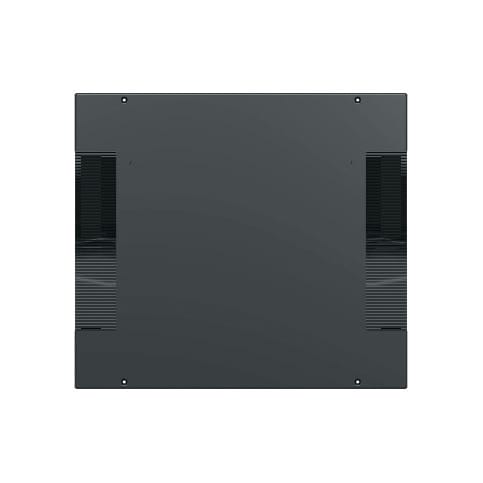

24 Inch Wide Solid Top for SNE Rack
SNE24-ST$103.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Questions about this part
Will the SNE24F-2442 fit my security and networking hardware?
Yes, this 24 RU frame is purpose-built for IP networking, analog, digital, and hybrid security systems. It is compatible with 10-32 threaded rackrails and can be customized with various thermal options for conditioned or unconditioned spaces.
What is the weight capacity of the SNE24F-2442 rack frame?
The SNE24F-2442 has a UL Load Capacity of 3000 lbs (1,360.8 kg), providing a robust foundation for heavy enterprise equipment.
What accessories are needed to complete this rack enclosure?
As this is a frame-only system, you may need to purchase components such as the SNE24-ST solid top, various vent panels like the VTF3, or power solutions like the PDX-920R rackmount power.
Is this rack frame suitable for seismic-prone areas?
Yes, the SNE24F-2442 is seismic rated and UL listed, ensuring it meets the stability requirements for high-security installations.
How do I mount smaller devices in unused rack spaces?
This frame is compatible with the efficient Lever Lock™ system, allowing you to mount small devices securely within unused RU spaces.
